FUDAN MICRODatasheet (PDF)

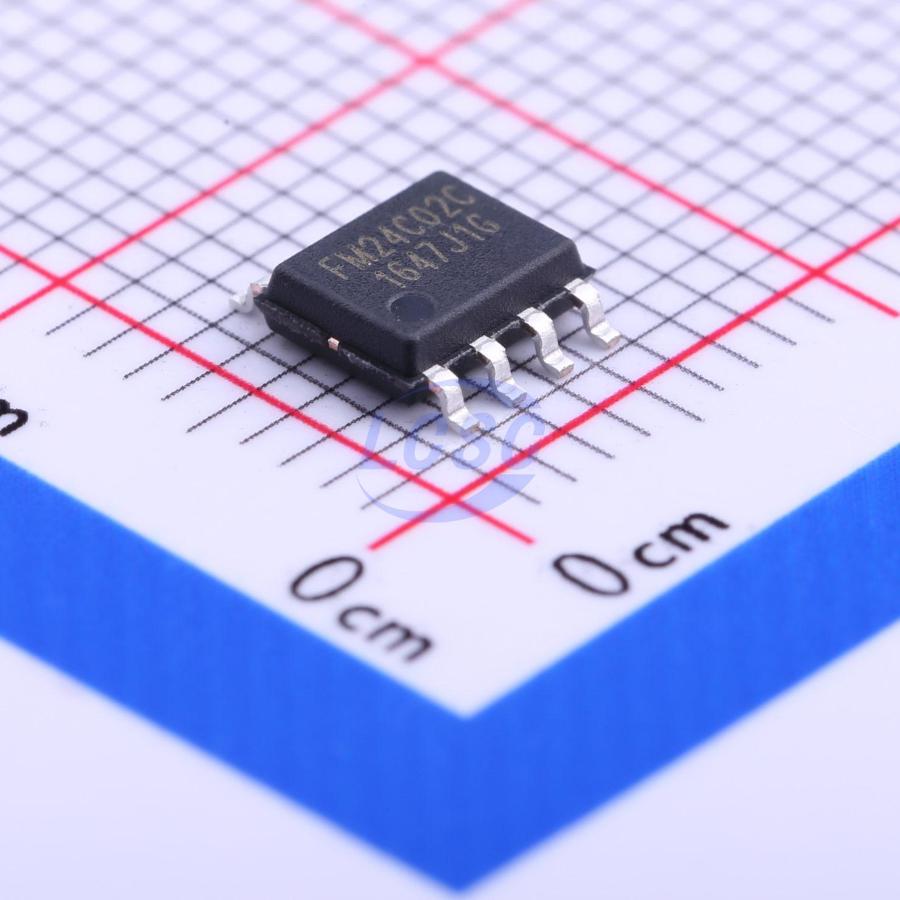

FM24C02C-SO-T-G
2Kbit 400kHz I2C SOIC-8 Memory
SOIC-8RoHSActive
2-Wire Serial EEPROM
- Manufacturer
- FUDAN MICRO
- Manufacturer part #
- FM24C02C-SO-T-G
- Store part #
- C189501
- Package / case
- SOIC-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,715 in stock
#C189501
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.12 | ₹60.60 |
| 50+ | ₹9.50 | ₹475.00 |
| 150+ | ₹8.20 | ₹1,230.00 |
| 500+ | ₹7.22 | ₹3,610.00 |
| 2,500+ | ₹6.43 | ₹16,075.00 |
| 4,000+ | ₹6.05 | ₹24,200.00 |
5 × ₹12.12
₹60.60
excl. GST
₹71.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FM24C02C-SO-T-G
₹60.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 400kHz
- Access Time
- 3.45us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 8uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.243 g
Overview
The FM24C02C provides low operation voltage of 2048 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential.
Key features
- Low Operation Voltage: Vcc = 1.7V to 5.5V
- Internally Organized: ±56x8
- Two-wire Serial Interface Schmitt Trigger, Filtered Inputs for Noise Suppression Bi-directional Data Transfer Protocol 400KHz (2.5V~5.5V) and 100 kHz (1.7V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 8-byte Page Write Modes
- Partial Page Writes are Allowed
- Self-timed Write Cycle (5 ms max)
- High-reliability
- Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- PDIP8, SOP8, TSSOP8, TDFN8 and TSOT23-5L Packages (RoHS Compliant and Halogen-free)
