FUDAN MICRODatasheet (PDF)

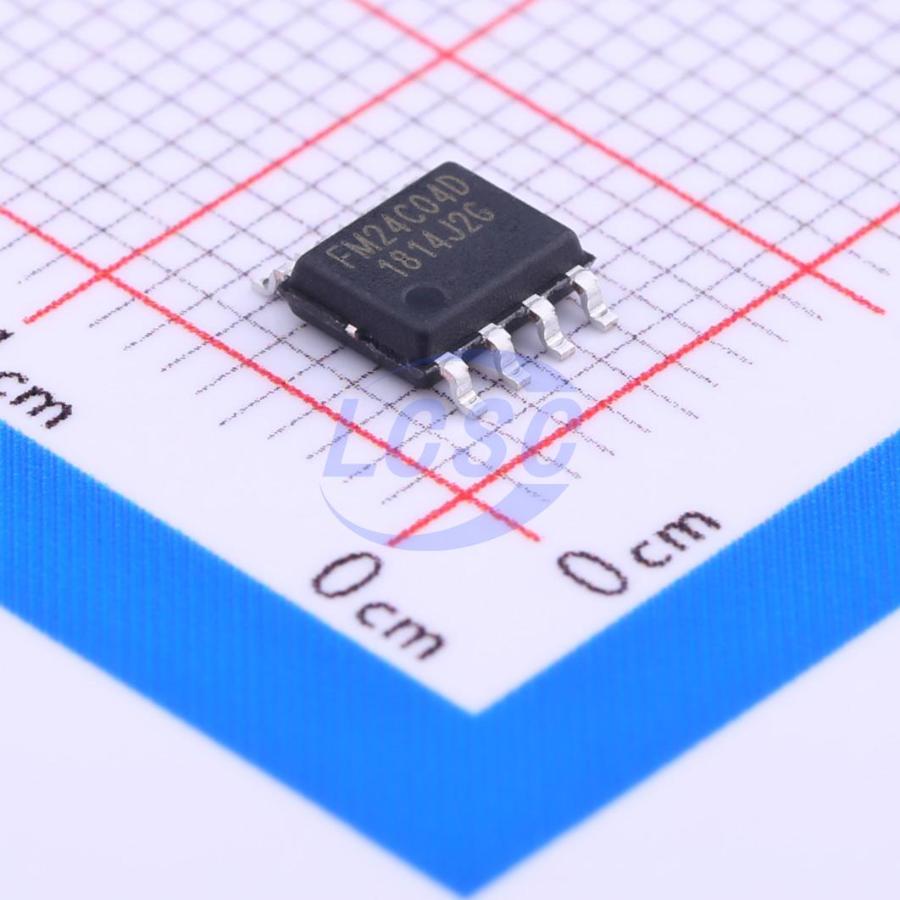

FM24C04D-SO-T-G
4Kbit 1MHz I2C SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
4K-bit 2-Wire Serial EEPROM with Unique ID and Security Sector
- Manufacturer
- FUDAN MICRO
- Manufacturer part #
- FM24C04D-SO-T-G
- Store part #
- C285236
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,530 in stock
#C285236
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.50 | ₹72.50 |
| 50+ | ₹11.54 | ₹577.00 |
| 150+ | ₹10.04 | ₹1,506.00 |
| 500+ | ₹8.93 | ₹4,465.00 |
| 2,500+ | ₹7.42 | ₹18,550.00 |
| 4,000+ | ₹6.97 | ₹27,880.00 |
5 × ₹14.50
₹72.50
excl. GST
₹85.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FM24C04D-SO-T-G
₹72.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;450ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.163 g
Overview
The FM24C04D provides 4096 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 512 words of 8 bits each, with 128-bit UID and 16-byte Security Sector. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential.
Key features
- Low Operation Voltage: Vcc = 1.7V to 5.5V
- Internally Organized: 512x8
- 2-wire Serial Interface Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bi-directional Data Transfer Protocol 1MHz (2.5V~5.5V) and 400 kHz (1.7V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 16-Byte Page Write Modes (Partial Page Writes are Allowed)
- Lockable 16-Byte Security Sector
- 128-Bit Unique ID for each device
- Self-timed Write Cycle (5 ms max)
- High-reliability – Endurance: 1,000,000 Write Cycles – Data Retention: 40 Years
- PDIP8 (RoHS Compliant) SOP8, TSSOP8, TSOT23-5L and TDFN8 Packages (RoHS Compliant and Halogen-free)
- Wafer Sales: available in Wafer Form
