FUDAN MICRODatasheet (PDF)

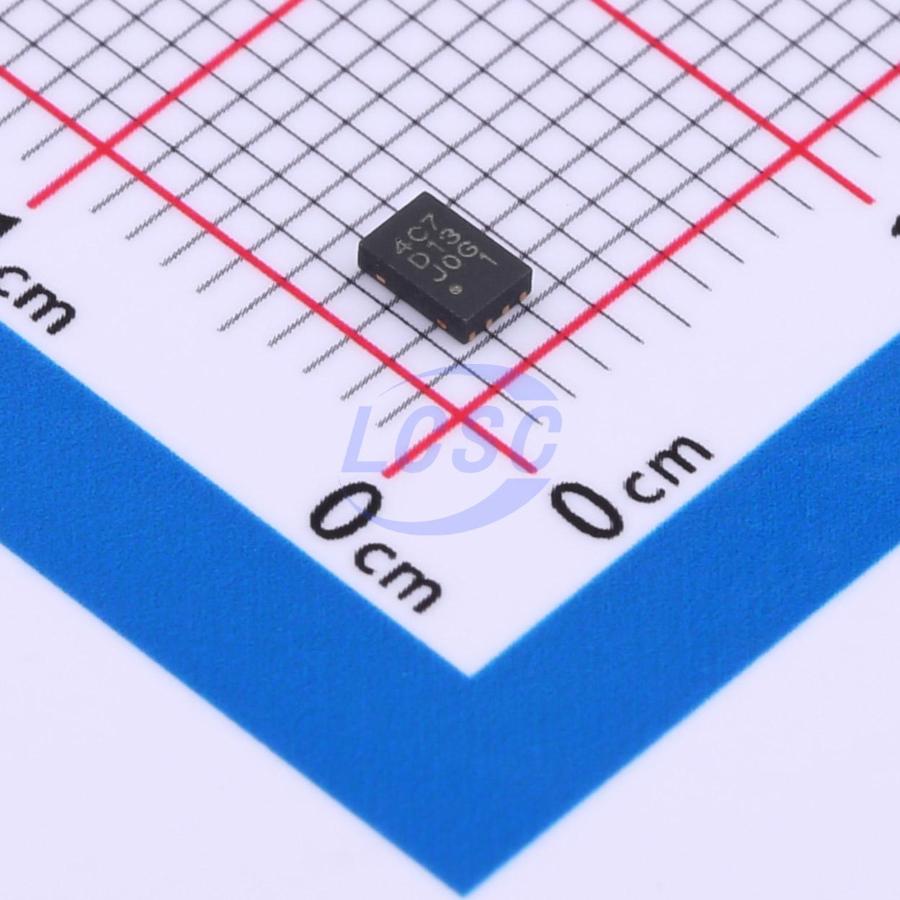

FM24C128D-DN-T-G
128Kbit 1MHz I2C TDFN-8-EP(2x3) Memory
TDFN-8-EP(2x3)RoHSActive
2-Wire Serial FRAM
- Manufacturer
- FUDAN MICRO
- Manufacturer part #
- FM24C128D-DN-T-G
- Store part #
- C2912082
- Package / case
- TDFN-8-EP(2x3)
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C2912082
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.01 | ₹145.05 |
| 50+ | ₹22.78 | ₹1,139.00 |
| 150+ | ₹20.11 | ₹3,016.50 |
| 500+ | ₹16.78 | ₹8,390.00 |
| 3,000+ | ₹15.29 | ₹45,870.00 |
| 6,000+ | ₹14.41 | ₹86,460.00 |
5 × ₹29.01
₹145.05
excl. GST
₹171.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FM24C128D-DN-T-G
₹145.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.6V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;450ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The FM24C128D provides 131,072 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 16,384 words of 8 bits each, with 128-bit UID and 64-byte Security Sector. The device’s cascadable feature allows up to 8 devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential.
Key features
- Low Operation Voltage: VCC = 1.6V to 5.5V
- Internally Organized: 16,384 x 8
- 2-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bi-directional Data Transfer Protocol
- 1MHz (2.5V~5.5V) and 400 kHz (1.6V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 64-Byte Page Write Modes (Partial Page Writes are Allowed)
- Lockable 64-Byte Security Sector
- 128-Bit Unique ID for each device
- Self-timed Write Cycle (5 ms max)
- High-reliability – Endurance: 1,000,000 Write Cycles – Data Retention: 40 Years
- SOP8, TSSOP8, TDFN8 and Thin 4-ball WLCSP Packages (RoHS Compliant and Halogen-free)
