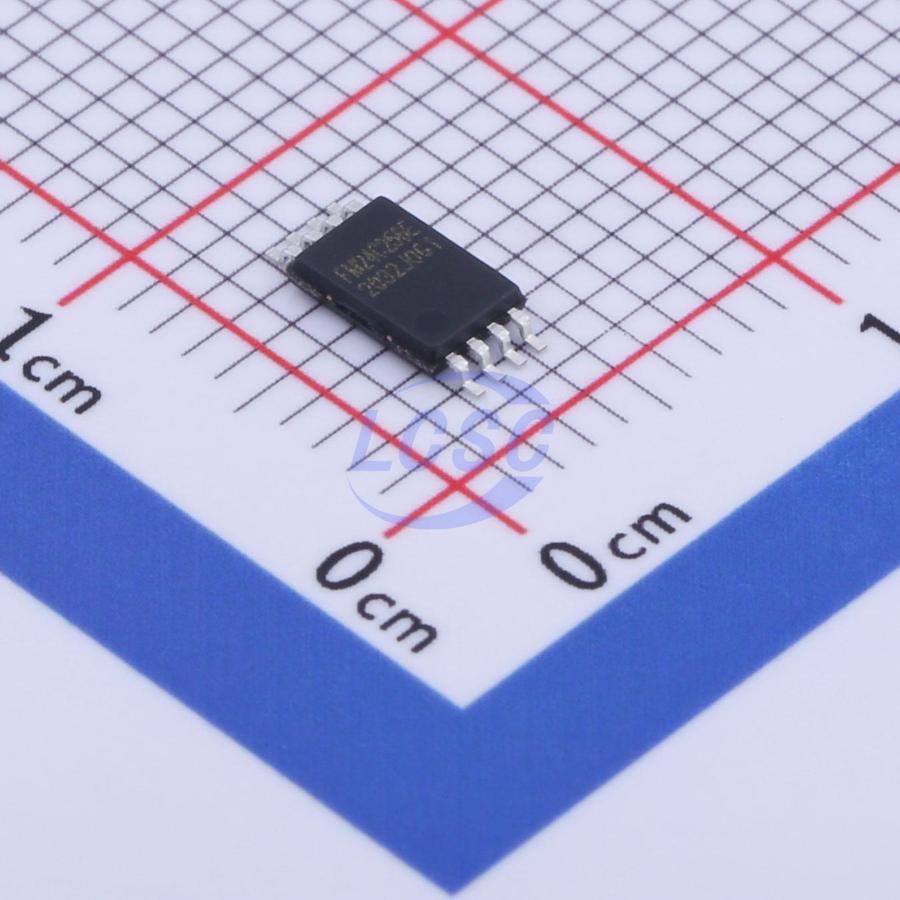

FM24C256E-TS-T-G
256Kbit 1MHz I2C TSSOP-8 Memory
2-Wire Serial EEPROM With Unique ID and Security Sector
- Manufacturer
- FUDAN MICRO
- Manufacturer part #
- FM24C256E-TS-T-G
- Store part #
- C908401
- Package / case
- TSSOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,930 in stock
#C908401
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.05 | ₹260.25 |
| 50+ | ₹40.34 | ₹2,017.00 |
| 150+ | ₹35.32 | ₹5,298.00 |
| 500+ | ₹29.07 | ₹14,535.00 |
| 2,500+ | ₹26.29 | ₹65,725.00 |
| 4,000+ | ₹24.62 | ₹98,480.00 |
5 × ₹52.05
₹260.25
excl. GST
₹307.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FM24C256E-TS-T-G
₹260.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Built-in error correction code (ECC) function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;450ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.146 g
Overview
The FM24C256E provides 262,144 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 32,768 words of 8 bits each, with 128-bit UID and 64-byte Security Sector, and much improved the reliability by an internal ECC logic. The device’s cascadable feature allows up to 8 devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential.
Key features
- Low Operation Voltage: VCC = 1.7V to 5.5V
- Internally Organized: 32,768 x 8
- 2-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bi-directional Data Transfer Protocol
- 1MHz (2.5V ~ 5.5V) and 400 kHz (1.7V) Compatibility
- Write Protect Pin for Hardware Data Protection 64-Byte Page Write Modes (Partial Page Writes are Allowed)
- Lockable 64-Byte Security Sector
- 128-Bit Unique ID for each device
- Self-timed Write Cycle (5 ms max)
- Enhanced ESD protection
- High-reliability
- Endurance: 1,000,000 Write Cycles
- Data Retention: 40 Years
- SOP8, TSSOP8, MSOP8, TDFN8, Thin 6-ball WLCSP and Thin 4-ball WLCSP Packages (RoHS Compliant and Halogen-free)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FM24C256A-TS-T#C285243FUDAN MICRO · TSSOP-8 | FUDAN MICRO | TSSOP-8 | On request | Price on request | Quote |
