FUDAN MICRODatasheet (PDF)

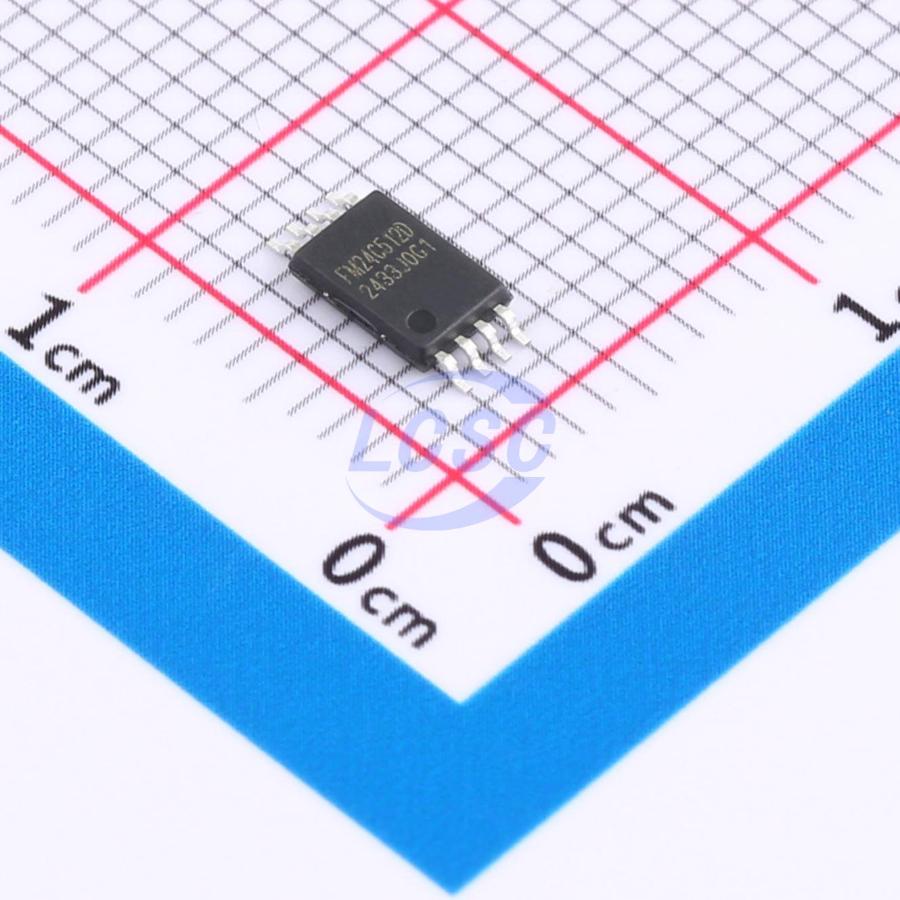

FM24C512D-TS-T-G
512Kbit 1MHz I2C TSSOP-8 Memory
TSSOP-8RoHSActive
2-Wire Serial EEPROM With Unique ID and Security Sector
- Manufacturer
- FUDAN MICRO
- Manufacturer part #
- FM24C512D-TS-T-G
- Store part #
- C192125
- Package / case
- TSSOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,128 in stock
#C192125
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.33 | ₹58.33 |
| 10+ | ₹45.97 | ₹459.70 |
| 30+ | ₹40.55 | ₹1,216.50 |
| 100+ | ₹33.83 | ₹3,383.00 |
| 500+ | ₹30.80 | ₹15,400.00 |
| 1,000+ | ₹29.07 | ₹29,070.00 |
1 × ₹58.33
₹58.33
excl. GST
₹68.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FM24C512D-TS-T-G
₹58.33 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The FM24C512D provides 524,288 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 65,536 words of 8 bits each, with 128-bit UID and 128-byte Security Sector. The device’s cascadable feature allows up to 8 devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential.
Key features
- Low Operation Voltage: Vcc = 1.7V to 5.5V
- Internally Organized: 65, ±536 x 8 8
- 2-wire Serial Interface Schmitt Trigger, Filtered Inputs for Noise Suppression Bi-directional Data Transfer Protocol 1MHz (2.5V~5.5V) and 400 kHz (1.7V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 128-Byte Page Write Modes (Partial Page Writes are Allowed)
- Lockable 128-Byte Security Sector
- 128-Bit Unique ID for each device
- Self-timed Write Cycle (5 ms max)
- High-reliability – Endurance: 1,000,000 Write Cycles – Data Retention: 40 Years
- PDIP8, SOP8, TSSOP8 and UDFN8 Packages (RoHS Compliant and Halogen-free)
