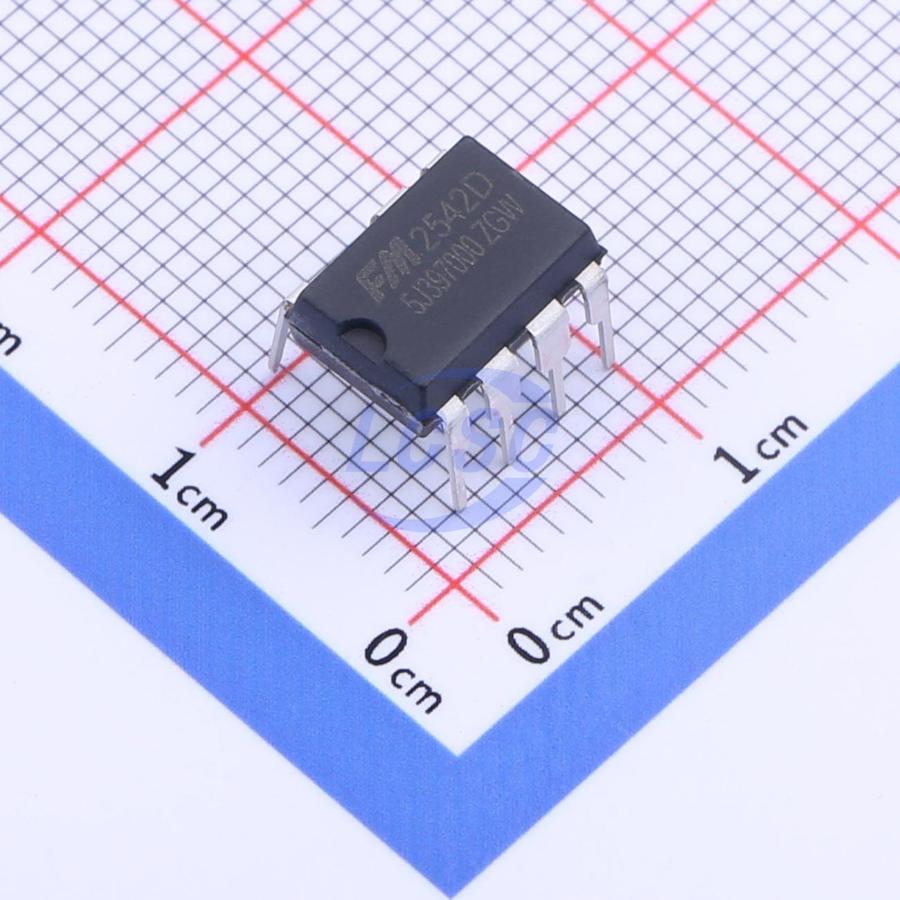

FM2542D
Converter Offline Flyback Topology DIP-7
DIP-7ROHS CompliantActive
Low-power primary-side feedback switching power supply chip
- Manufacturer
- FM
- Manufacturer part #
- FM2542D
- Store part #
- C2931991
- Package / case
- DIP-7
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C2931991
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.23 | ₹226.15 |
| 50+ | ₹35.62 | ₹1,781.00 |
| 150+ | ₹31.50 | ₹4,725.00 |
| 1,000+ | ₹26.35 | ₹26,350.00 |
| 2,000+ | ₹24.07 | ₹48,140.00 |
| 5,000+ | ₹22.70 | ₹1,13,500.00 |
| 10,000+ | ₹22.41 | ₹2,24,100.00 |
| 20,000+ | ₹22.23 | ₹4,44,600.00 |
5 × ₹45.23
₹226.15
excl. GST
₹266.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per tube
FM2542D
₹226.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 72kHz
- Pd - Power Dissipation
- 0.45W
- Voltage - Supply
- 9V~31V
- Voltage - Breakdown
- 650V
- Topology
- Flyback
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Overtemperature protection (OTP);Under Voltage Protection;Over Voltage Protection;Short Circuit Protection
- Feedback System
- Primary-side feedback
- Working Mode
- PFM Modulation;PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 1,000 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.08 g
Overview
FM25XX is a low-power Primary-Side Regulation (PSR) switching power supply IC with an integrated high-power MOSFET, designed for isolated high-efficiency low-power portable device charger applications. It employs a unique PSR control technique with CC/CV functionality, along with a proprietary PFM+PWM scheme to reduce the IC's own power consumption under light load for high-efficiency operation. Output cable drop compensation is incorporated to ensure sufficient output power at high current. Additional features include over-temperature protection, VCC under-voltage protection, VCC over-voltage protection, and output short-circuit protection. The compact DIP/SOP package facilitates system design and PCB layout.
Applications
- Chargers and adapters for portable devices such as mobile phones
- LED driver power supplies
- Auxiliary power supplies
Key features
- Integrated high-power MOSFET
- High-precision constant voltage and constant current control
- PFM+PWM mode
- Standby power consumption < 75mW
- No audio noise
- Output short-circuit protection
- VCC overvoltage and clamp protection
- VCC undervoltage protection
- Over-temperature protection
- Primary-side feedback with minimal external components
