FUDAN MICRO

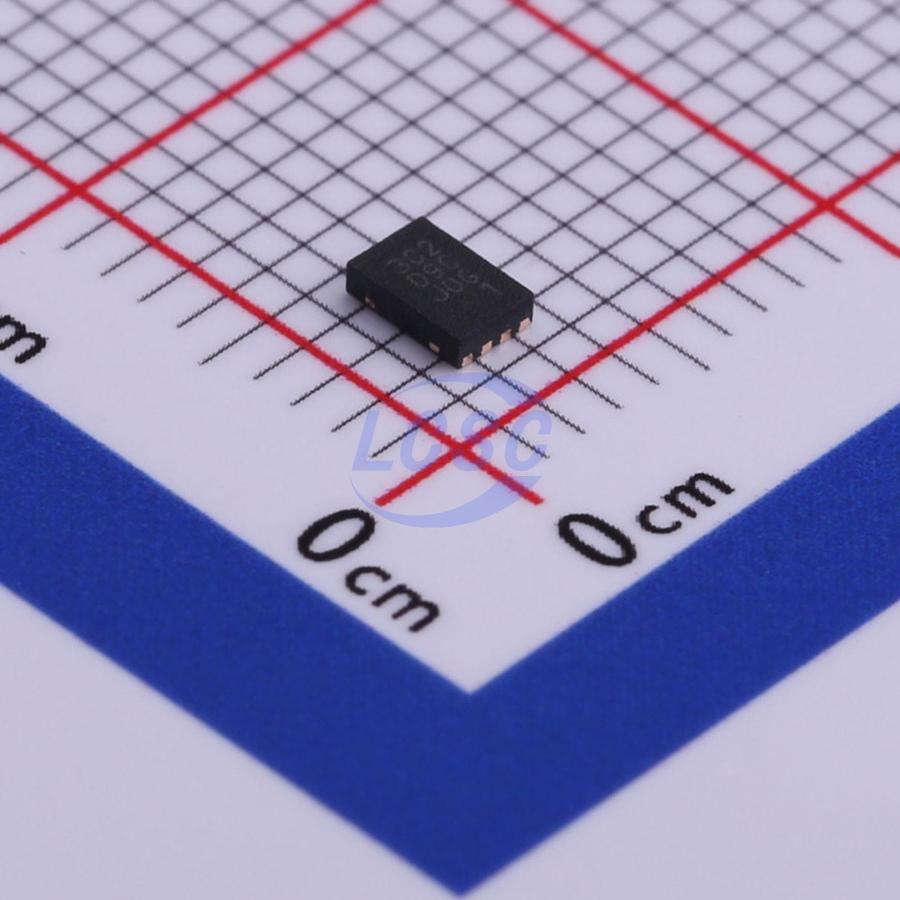

FM34C04D-DN-T-G

4Kbit 1MHz I2C TDFN-8-EP(2x3) Memory

TDFN-8-EP(2x3)RoHSActive

4Kbit Serial Presence Detect EEPROM with Reversible Software Write Protection

Manufacturer: FUDAN MICRO
Manufacturer part #: FM34C04D-DN-T-G
Store part #: C501784
Package / case: TDFN-8-EP(2x3)
Category: Memory
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,675 in stock

#C501784

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹21.68	₹108.40
50+	₹17.00	₹850.00
150+	₹14.99	₹2,248.50
500+	₹12.49	₹6,245.00
3,000+	₹11.38	₹34,140.00
6,000+	₹10.70	₹64,200.00

Quantity (min 5, multiples of 5)

5 × ₹21.68

₹108.40

excl. GST

₹127.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FM34C04D-DN-T-G

₹108.40 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Built-in power-on reset (POR);Software write protection function;Noise suppression function
Memory Size: 4Kbit
Voltage - Supply: 1.7V~3.6V;1mA
Clock Frequency: 1MHz
Data Retention - TDR (Year): 40 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 2uA
Write Cycle Endurance: 1,000,000 cycles
Interface: I2C

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.055 g

Overview

The FM34C04D provides 4,096 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 512 words of 8 bits each, with 128-bit UID and 16-bytes Security Sector. This device is JEDEC JC42.4 (EE1004-v) Serial Presence Detect (SPD) compliant and includes reversible software write protection for each of four independent 128 × 8-bit blocks. The device features a page write capability of up to 16 bytes of data. Address pins allow up to eight devices on the same bus.

Key features

Low Operation Voltage: V_CC = 1.7V to 3.6V
Internally Organized: 512 x 8 JEDEC JC42.4 (EE1004-v) Serial Presence Detect (SPD) Compliant for DRAM(DDR4) modules
2-wire Serial Interface: I²C Fast-Mode Plus Compatible – 100kHz, 400kHz, and 1MHz Compatibility – SMBus-compatible bus Timeout Supported
EEPROM memory array: – 4 Kbits organized as two 256x 8-bit banks – Each bank is composed of two 128-byte blocks
Write Protect Pin for Hardware Data Protection
Software data protection for each 128-byte block
Schmitt Trigger, Filtered Inputs for Noise Suppression
16-Byte Page Write Modes (Partial Page Writes are Allowed)
Lockable 16-Byte Security Sector
128-Bit Unique ID for each device
Self-timed Write Cycle (5 ms max)
High-reliability – Endurance: 1,000,000 Write Cycles – Data Retention: 40 Years
TSSOP8、TDFN8 (RoHS Compliant and Halogen-free)
