FM5327

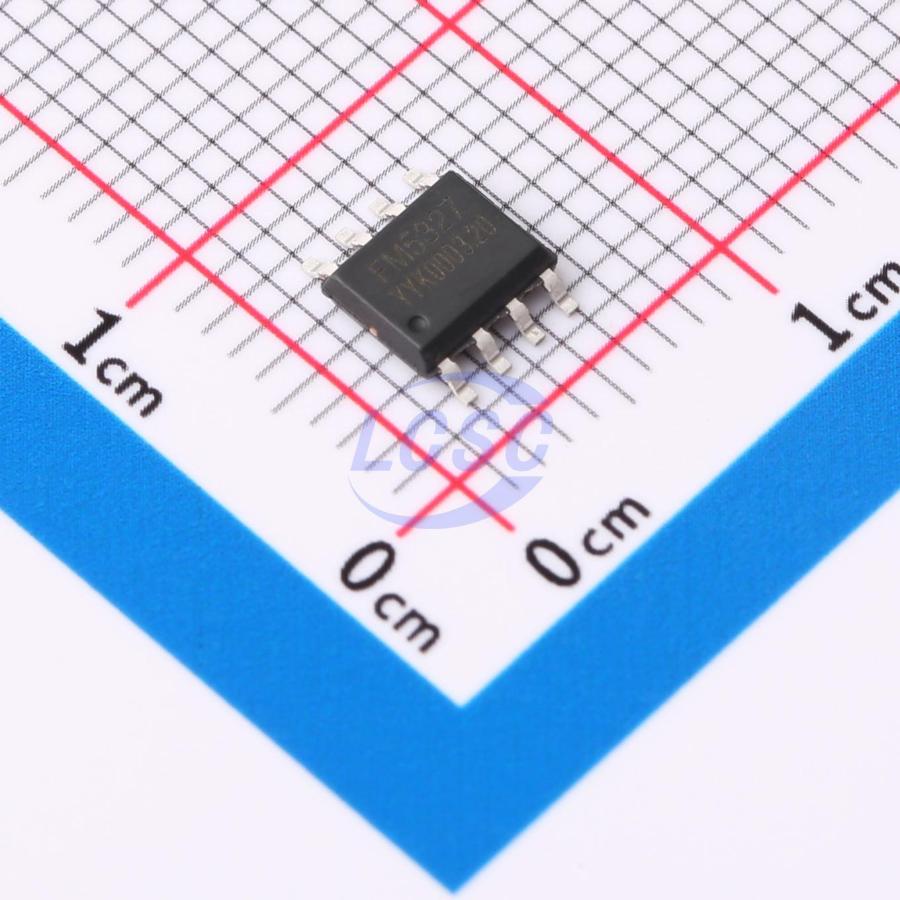

FM5327 is a lithium battery charge/discharge power management IC integrating lithium battery charging management, battery boost output, battery level detection, and LED battery indicator functions. FM5327 employs switch-mode charging, covering the full charging cycle including trickle charge, constant current charge, and constant voltage charge. The float voltage accuracy achieves ±1% over the full temperature range, with the additional advantages of low charging current ripple and high charging efficiency. FM5327's synchronous boost module delivers a 5V/2.4A output with up to 90% boost conversion efficiency and output voltage accuracy of ±7%. FM5327 features multiple protection mechanisms, including input overcurrent, overvoltage, overdischarge, and overcurrent protection, as well as output current limiting, short-circuit protection, and chip overtemperature protection. High-performance ESD protection circuits are also integrated at the chip ports, ensuring exceptionally high reliability. FM5327 incorporates an automatic load detection function that enables boost output automatically upon load detection. FM5327 is currently available in an ESOP8L package.

Applications

• Power banks
• Tablets, mobile phones
• Other portable devices

Key features

• Highly integrated with minimal external components
• Low standby current: 8uA
• Three-stage charging: trickle / constant current / constant voltage
• Synchronous switching charge input: 2.0A @ 5V
• Charge float voltage accuracy ±1%; selectable full-charge voltage: 4.2V or 4.35V
• Synchronous boost output up to 2.4A @ 5V
• Soft-start function
• Overall boost efficiency up to 90%
• No-load detection shutdown
• Output line compensation
• Multiple key modes selectable
• Optional flashlight current-boost function
• Integrated smart DCP charging current identification
• Battery NTC temperature protection
• 1–4 LED battery level display with multiple display modes
• Multiple protection features: output current limiting, short-circuit protection, and more
