FITIPOWERDatasheet (PDF)

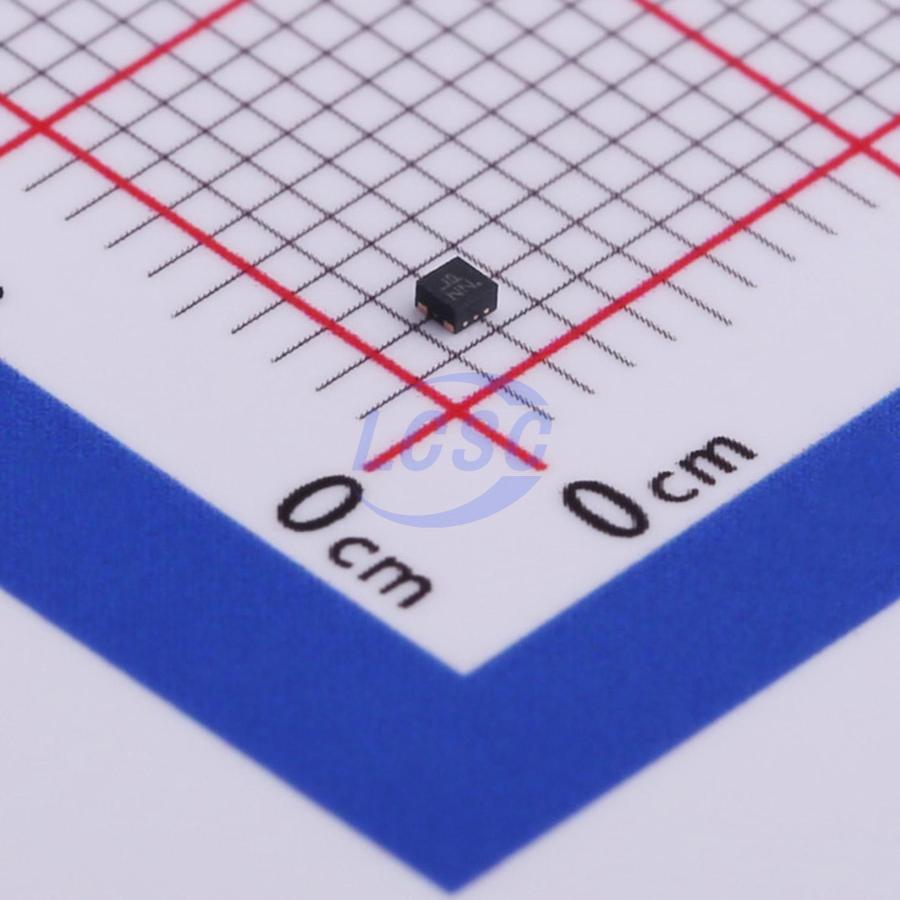

FP6182-33X7
3.3V Positive Fixed UTDFN-4L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
UTDFN-4LROHS CompliantActive
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FP6182-33X7
- Store part #
- C498350
- Package / case
- UTDFN-4L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C498350
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.18 | ₹81.80 |
| 100+ | ₹6.56 | ₹656.00 |
| 300+ | ₹5.76 | ₹1,728.00 |
| 1,000+ | ₹5.15 | ₹5,150.00 |
| 5,000+ | ₹4.41 | ₹22,050.00 |
| 10,000+ | ₹4.17 | ₹41,700.00 |
10 × ₹8.18
₹81.80
excl. GST
₹96.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FP6182-33X7
₹81.80 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.005 g
Overview
FP6182 is a low dropout, low noise, high PSRR, low quiescent current positive LDO regulator. The device delivers 300mA output current and operates with a low dropout voltage of approximately 160mV, optimized for battery-powered systems or portable wireless devices such as mobile phones. Its shutdown function can be remotely controlled via an external signal to enable/disable the FP6182; current consumption in shutdown mode is less than 0.1μA. The regulator maintains stability with output capacitors as small as 1μF. Protection features include current limiting and foldback current limiting. The FP6182 provides high-accuracy output voltage of ±1%. The device is available in compact UTDFN-4L (1.0mm×1.0mm) and SOT-23-5 packages.
Applications
- Smartwatch
- Wireless mouse
- Wireless sensor network
- Data logger
- IP camera
- Dual-band radio
Key features
- Low VIN and wide VIN range: 1.75V to 5.5V
- Output current 300mA×1
- ±1% output voltage accuracy
- Output noise 65μV rms (10Hz to 100kHz bandwidth)
- Fixed output voltage 1.0V to 3.3V
- Dropout voltage 160mV at 2.8V/300mA
- Ripple rejection 65dB at 1kHz
- Low quiescent current 2μA
- Stable with only 1μF capacitor
- Foldback current limiting protection
- Thermal shutdown protection
- Current limiting protection
- Output discharge function
- UTDFN-4L (1.0mm×1.0mm) and SOT-23-5 packages
- RoHS compliant
