FITIPOWERDatasheet (PDF)

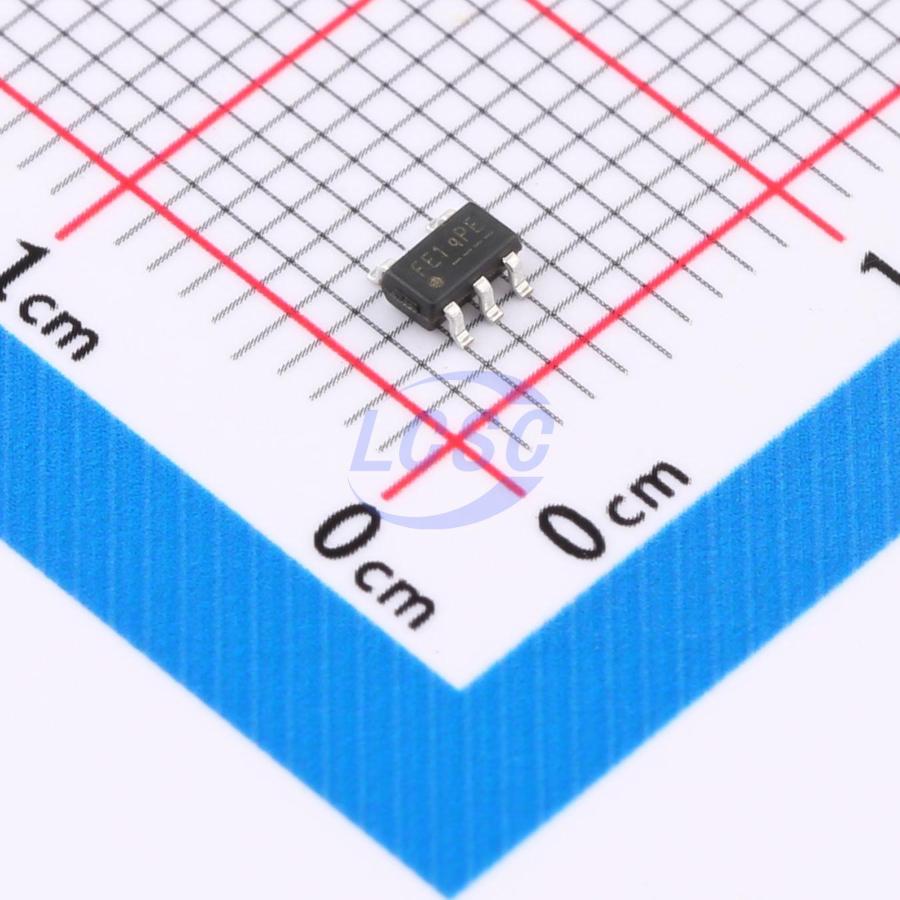

FP6185-18S5
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5ROHS CompliantActive
300mA, Low Noise High PSRR LDO Regulator
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FP6185-18S5
- Store part #
- C516195
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,570 in stock
#C516195
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.26 | ₹62.60 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 3,000+ | ₹3.92 | ₹11,760.00 |
| 6,000+ | ₹3.53 | ₹21,180.00 |
| 9,000+ | ₹3.35 | ₹30,150.00 |
10 × ₹6.26
₹62.60
excl. GST
₹73.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FP6185-18S5
₹62.60 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 5.5V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.049 g
Overview
Applications
- PDAs
- Mobile phones
- GPS
- Smartphones
- Wireless handheld devices
- WLAN
- Bluetooth
- Zigbee
- Portable medical devices
- Other battery-powered applications
Key features
- Low input voltage (VIN) and wide VIN range: 2V to 5.5V
- 300mA output current
- ±2% output voltage accuracy
- Output noise 65μVrms (10Hz to 100kHz)
- Fixed VOUT 1.0V to 3.3V
- 400mV dropout voltage at 300mA
- 75dB ripple rejection at 1kHz
- Ultra-low quiescent current 35μA
- Stable with only 1μF capacitor
- Thermal shutdown protection
- Current limiting protection
- SOT-23-5 package
- RoHS compliant
