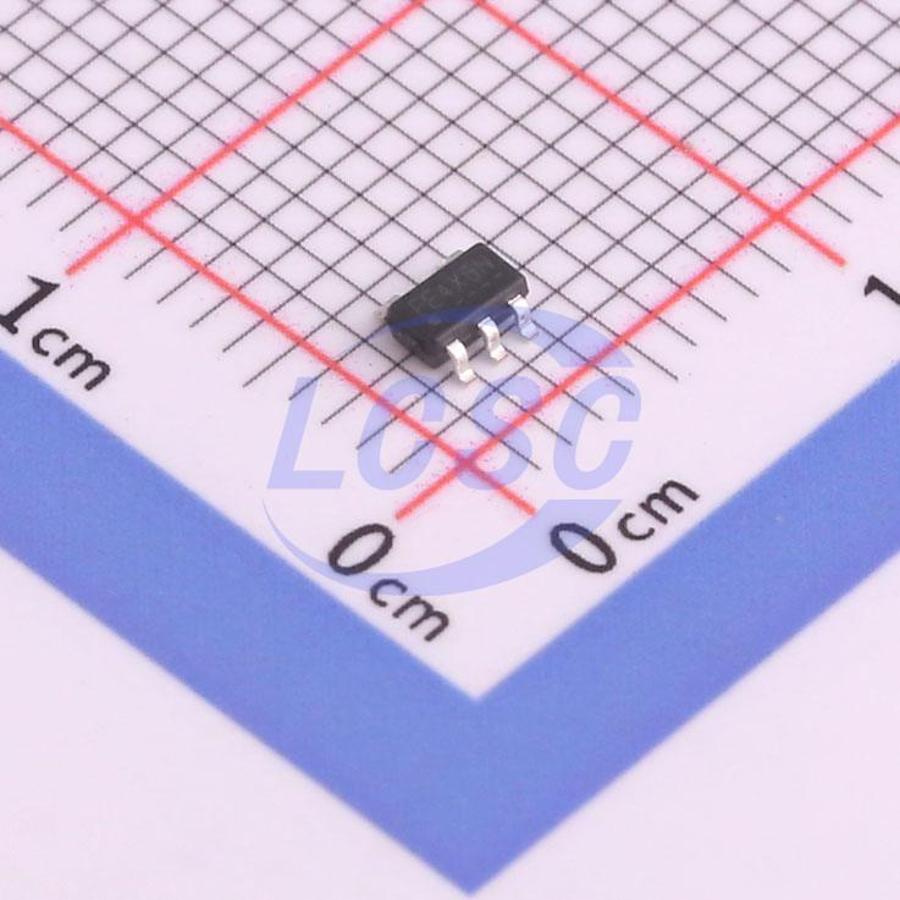

FP6185-33S5

The FP6185 is a low dropout, low noise, high PSRR, very low quiescent current positive linear regulator. The FP6185 can supply 300mA output current with low dropout voltage at about 400mV that optimized for battery-powered systems or portable wireless devices such as mobile phones. The shutdown function can provide remote control for the external signal to decide the on/off state of FP6185 that consumes less than 0.1μA during shutdown mode. The FP6185 regulator is able to operate with output capacitors as small as 1μF for stability. Other than the current limit protection, FP6185 also offers the on chip thermal shutdown feature providing protection against overload or any condition when the ambient temperature exceeds the maximum junction temperature. The FP6185 offers high precision output voltage of ±2%. The FP6185 is available in SOT-23-5 and UTDFN – 4L (1mmx1mm) packages which features small size.

Applications

• PDAs, Mobile phones, GPS, Smartphones
• Wireless Handsets, Wireless LAN, Bluetooth, Zigbee
• Portable Medical Equipment
• Other Battery Powered Applications

Key features

• Low VIN and Wide VIN Range: 2V to 5.5V
• Guarantee Output Current 300mA
• ±2% Output Voltage Accuracy
• Output Noise 65μVrms from 10Hz to 100kHz
• VOUT Fixed 1.1V to 3.3V
• Low Dropout Voltage of 400mV at 300mA
• Ripple Rejection 70dB at 10kHz
• Very Low Quiescent Current at 35μA
• Needs Only 1μF Capacitor for Stability
• Thermal Shutdown Protection
• Current Limit Protection
• Miniature Packages: SOT-23-5, UTDFN-4L (1mm×1mm)
• RoHS Compliant
