FITIPOWERDatasheet (PDF)

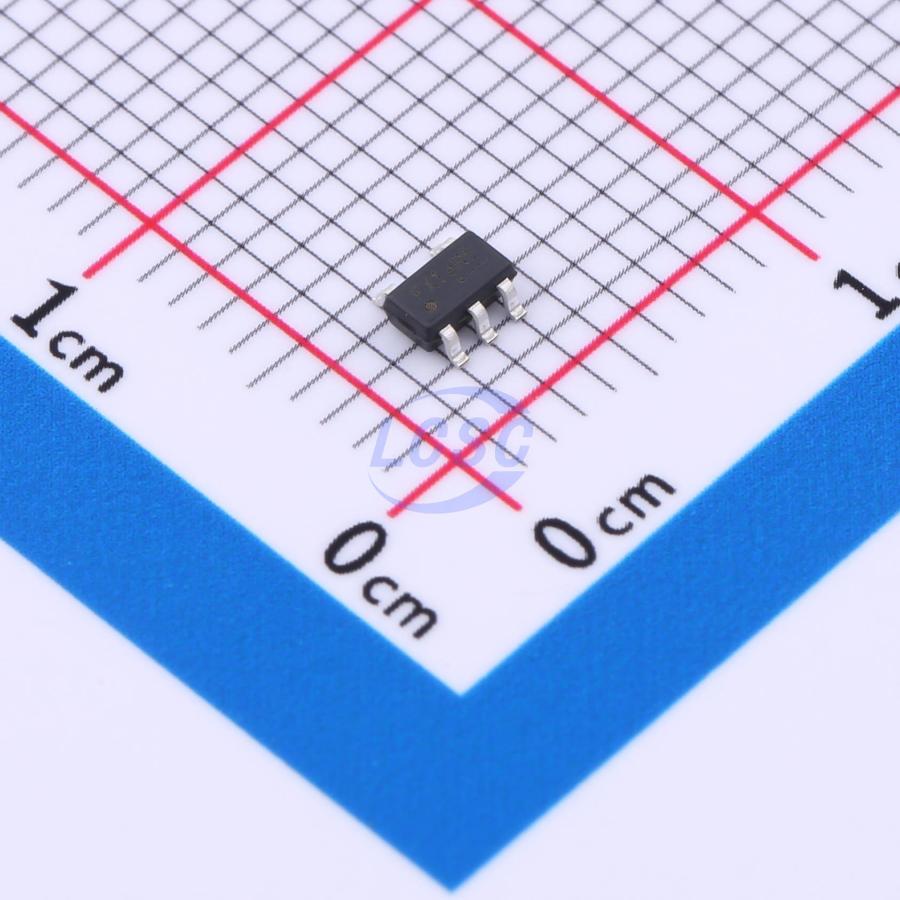

FP6186S5
Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
300mA Low Noise LDO with Output Discharge Function
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FP6186S5
- Store part #
- C5162507
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,050 in stock
#C5162507
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.12 | ₹71.20 |
| 100+ | ₹5.74 | ₹574.00 |
| 300+ | ₹5.05 | ₹1,515.00 |
| 3,000+ | ₹4.37 | ₹13,110.00 |
| 6,000+ | ₹3.94 | ₹23,640.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
10 × ₹7.12
₹71.20
excl. GST
₹84.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FP6186S5
₹71.20 for 10 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Adjustable
- Features
- Enable control;Built-in soft-start;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The FP6186 is a family of CMOS low dropout (LDO) regulators with a low dropout voltage of 200mV at 300mA designed for noise-sensitive portable device, RF and wireless applications. Quiescent current of FP6186 is as low as 60μA and it works with low-ESR ceramic capacitors, which makes it very suitable for space sensitive handheld applications. The soft-start function will eliminate current surges during start-up and the output discharge function will dissipate the residue output voltage in the capacitor during shut-down. Other features include current limit, thermal protection, high output accuracy, and low noise output etc.. The FP6186 is available in a SOT-23-5 package.
Applications
- PDAs, Mobile phones, GPS, Smartphones
- Wireless Handsets, Wireless LAN, Bluetooth, Zigbee
- Portable Medical Equipment
- Other Battery Powered Applications
Key features
- Low VIN and Wide VIN Range: 1.7V to 5.5V
- Guarantee Output Current 300mA
- VOUT Accuracy ±1.25%
- Ripple Rejection 75dB at 1kHz
- Low Output Noise, 50μVrms from 10Hz to 100kHz
- Quiescent Current as Low as 60μA
- Current Limit Protection
- Thermal Shutdown Protection
- 1μF Output Capacitor Required for Stability
- RoHS Compliant
