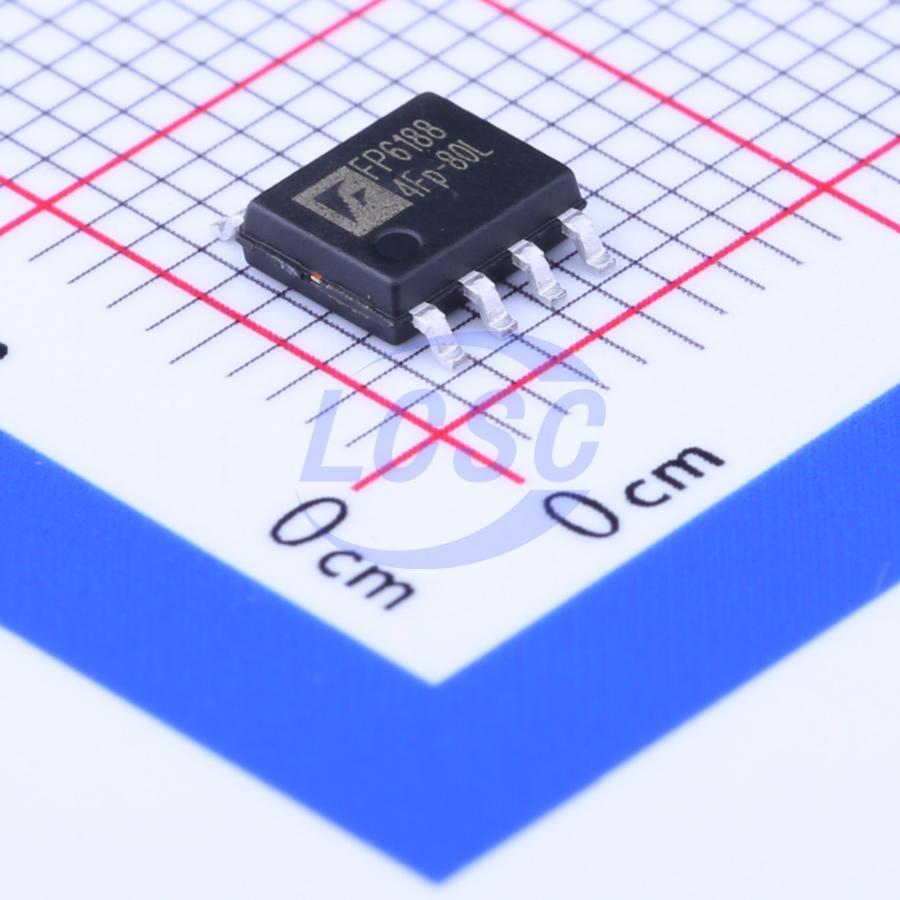

Advanced Analog Technology

FP6188XR-G1

340kHz Step-down type Adjustable 923mV~16V 2A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS

SOP-8-EPROHS CompliantActive

2A, 23V, 340KHz Synchronous Step-Down Converter

Manufacturer: Advanced Analog Technology
Manufacturer part #: FP6188XR-G1
Store part #: C114311
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,414 in stock

#C114311

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹63.45	₹63.45
10+	₹49.11	₹491.10
30+	₹43.04	₹1,291.20
100+	₹35.43	₹3,543.00
500+	₹32.16	₹16,080.00
1,000+	₹29.99	₹29,990.00

Quantity (min 1)

1 × ₹63.45

₹63.45

excl. GST

₹74.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

FP6188XR-G1

₹63.45 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 340kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Adjustable soft-start;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~23V
Switch tube (built-in/external): Built-in
Output Voltage: 923mV~16V
Output Current: 2A
Quiescent Current: 5uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.42 g

Overview

The FP6188 is a synchronous buck regulator with integrated two 0.13Ω power MOSFETs. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. The device includes cycle-by-cycle current limiting and thermal shutdown protection. The FP6188 requires a minimum number of readily available external components to complete a 2A buck regulator solution.

Applications

Distributed Power Systems
Battery Charger
Network Cards
Pre-Regulator for Linear Regulators
DSL Modems

Key features

2A Output Current
0.13Ω Internal Power MOSFET Switches
Stable with Low ESR Output Ceramic Capacitors Up to 93% Efficiency
Programmable Soft-Start
Fixed 340KHz Frequency
Thermal Shutdown
Cycle-by-Cycle Over Current Protection
Wide 4.5V to 23V Operating Input Range
Output Adjustable From 0.923V to 16V
Available SOP-8L (EP) Package
Input Under Voltage Lockout
