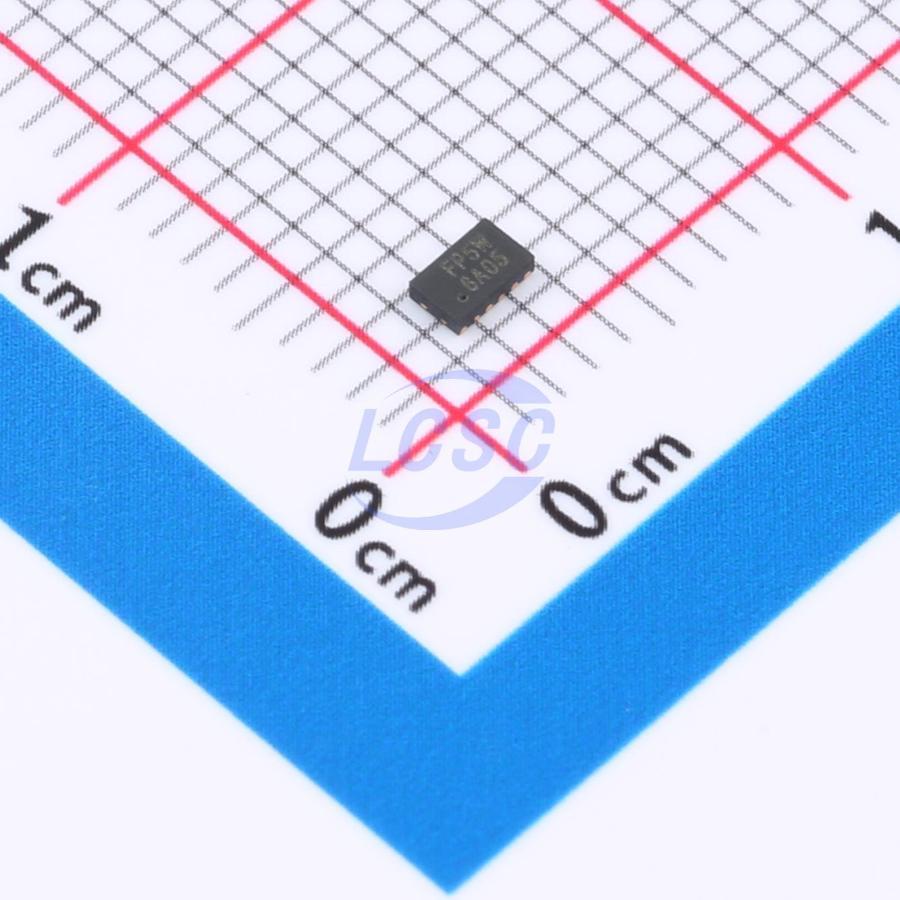

FITIPOWER

FP7721BX2

600kHz UTDFN-12(1.5x2.4) Power Management - Specialized RoHS

UTDFN-12(1.5x2.4)ROHS CompliantActive

Integrated Switch Dual Channel Charge Pump

Manufacturer: FITIPOWER
Manufacturer part #: FP7721BX2
Store part #: C48619794
Package / case: UTDFN-12(1.5x2.4)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,465 in stock

#C48619794

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹23.07	₹115.35
50+	₹18.27	₹913.50
150+	₹16.21	₹2,431.50
500+	₹13.64	₹6,820.00
3,000+	₹12.49	₹37,470.00
6,000+	₹11.80	₹70,800.00

Quantity (min 5, multiples of 5)

5 × ₹23.07

₹115.35

excl. GST

₹136.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FP7721BX2

₹115.35 for 5 + GST

Specifications

Features: Low-power standby
Function: boost converter;Inverted
Frequency - Switching: 600kHz
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.5V~4.8V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.026 g

Overview

The FP7721 is an integrated power solution optimized for small- to medium-sized TFT-LCD displays. It primarily targets LCD panel driver IC applications in smartphones and tablets. The positive charge pump has a built-in switch, delivering a typical output current of 100mA at VCI = 3.3V. The negative charge pump has a built-in switch, generating a -1× VSN voltage with a typical output current of 100mA at VCI = 3.3V. The pump clock can be synchronized with an external signal from the driver IC or generated internally at a fixed frequency of 600kHz. The device is offered in a compact 12-pin 2.4×1.5 mm UTDFN green package.
