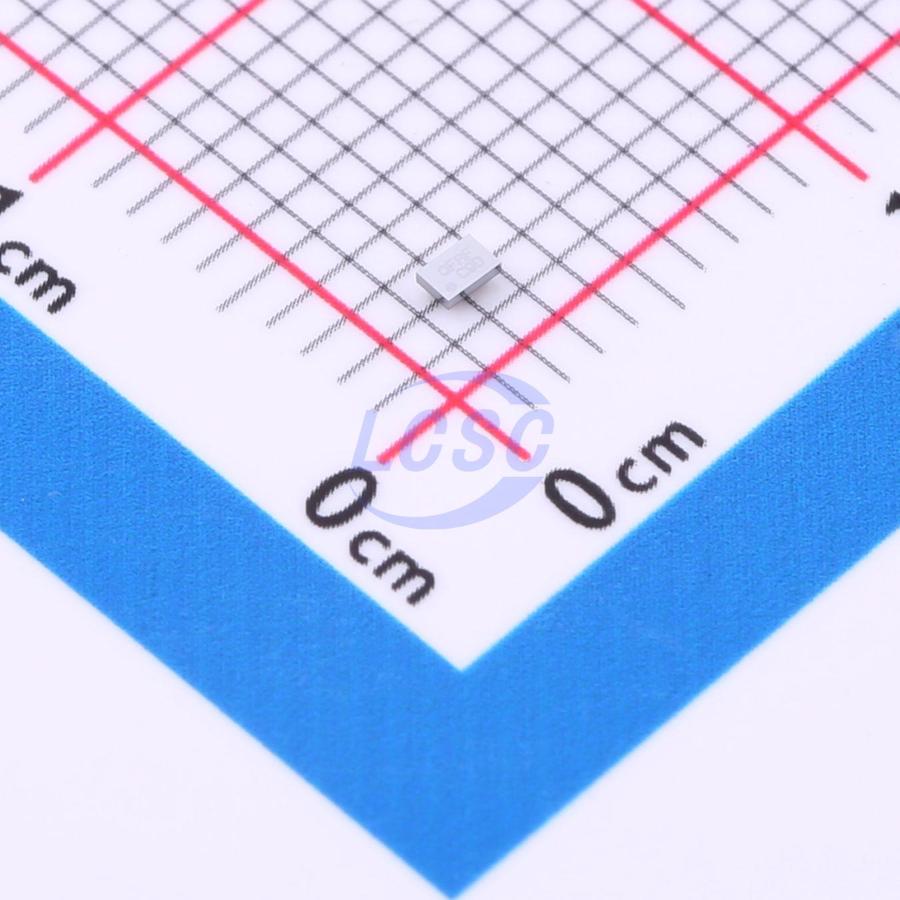

FPF1039UCX

The FPF1039 advanced load - management switch target applications requiring a highly integrated solution for disconnecting loads powered from DC power rail (< 6 V) with stringent shutdown current targets and high load capacitances (up to 200 μF). The FPF1039 consists of slew - rate controlled low - impedance MOSFET switch (21 mΩ typical) and other integrated analog features. The slew - rate controlled turn - on characteristic prevents inrush current and the resulting excessive voltage droop on power rails. This device has exceptionally low shutdown current drain (< 1 μA maximum) that facilitates compliance in low standby power applications. The input voltage range operates from 1.2 V to 5.5 V DC to support a wide range of applications in consumer, optical, medical, storage, portable, and industrial device power management. Switch control is managed by a logic input (active HIGH) capable of interfacing directly with low - voltage control signal / GPIO with no external pull - up required. The device is packaged in advanced fully “green” 1mm x 1.5 mm Wafer - Level Chip - Scale Packaging (WLCSP); providing excellent thermal conductivity, small footprint, and low electrical resistance for wider application usage.

Applications

• HDD, Storage, and Solid - State Memory Devices
• Portable Media Devices, UMPC, Tablets, MIDs
• Wireless LAN Cards and Modules
• SLR Digital Cameras
• Portable Medical Devices
• GPS and Navigation Equipment
• Industrial Handheld and Enterprise Equipment

Key features

• 1.2 V to 5.5 V Input Voltage Operating Range
• 20 mΩ at VIN = 5.5 V, 21 mΩ at VIN = 4.5 V, 37 mΩ at VIN = 1.8 V, 75 mΩ at VIN = 1.2 V
• Slew Rate / Inrush Control with tR: 2.7 ms (Typical)
• 3.5 A Maximum Continuous Current Capability
• Output Capacitor Discharge Function
• LOW < 1 μA Shutdown Current
• ESD Protected: Above 8 kV HBM, 1.5 kV CDM
• GPIO / CMOS - Compatible Enable Circuitry
