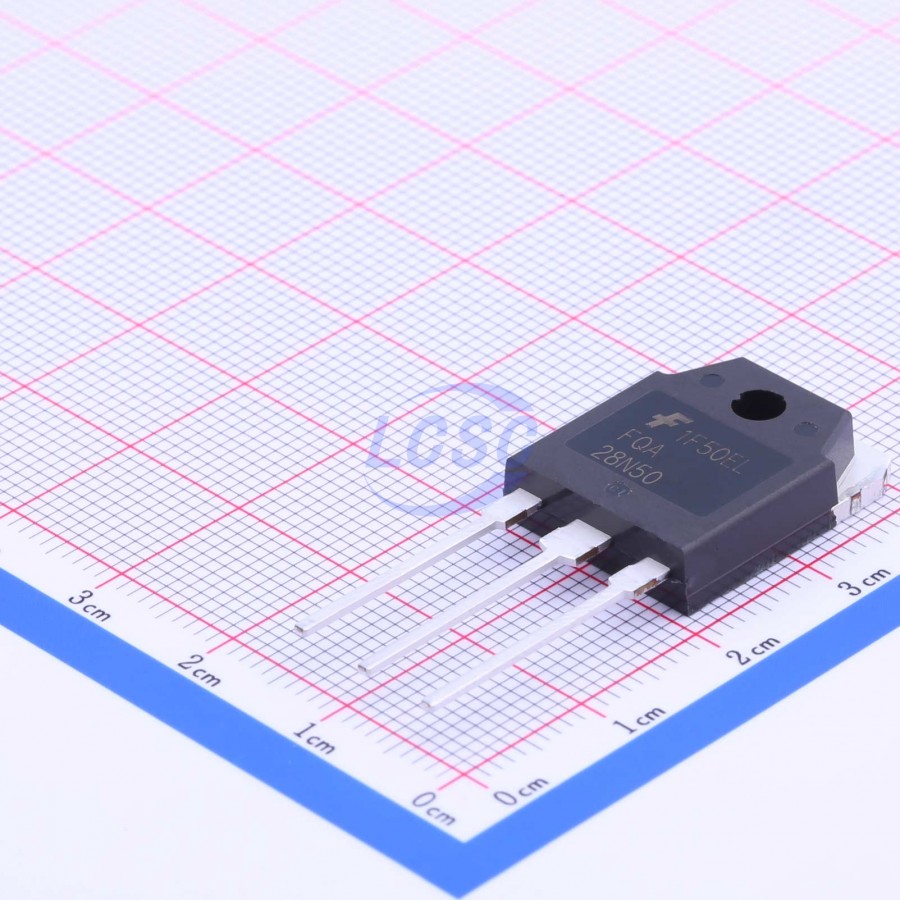

FQA28N50
N-Channel 500V 28.4A 310W Through Hole TO-3P-3
TO-3P-3ROHS3 CompliantActive
MOSFET N-CH 500V 28.4A TO-3P-3
- Manufacturer
- onsemi
- Manufacturer part #
- FQA28N50
- Store part #
- C2720
- Package / case
- TO-3P-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
104 in stock
#C2720
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹651.84 | ₹651.84 |
| 10+ | ₹557.58 | ₹5,575.80 |
| 30+ | ₹467.01 | ₹14,010.30 |
| 90+ | ₹410.39 | ₹36,935.10 |
| 510+ | ₹384.28 | ₹1,95,982.80 |
| 1,200+ | ₹372.52 | ₹4,47,024.00 |
1 × ₹651.84
₹651.84
excl. GST
₹769.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
FQA28N50
₹651.84 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 830pF
- Ciss-Input Capacitance
- 5.6nF
- Pd - Power Dissipation
- 310W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 28.4A
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 160mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 140nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.833 g
Overview
These N-Channel enhancement mode power field effect transistors are manufactured using Fairchild Semiconductor's proprietary planar stripe DMOS technology. This advanced technology has been especially designed to minimize on-resistance, provide superior switching performance, and withstand high energy pulses in avalanche and commutation modes. These devices are well suited for use in high efficiency switched mode power supplies, power factor correction, motor drives, and welding equipment.
Applications
- High-efficiency switch-mode power supplies
- Power factor correction
- Motor drives
- Welding machines
Key features
- 28.4A, 500V, R DS(on) = 0.16Ω at V GS = 10V
- Low gate charge (typical 110nC)
- Low C rss (typical 60pF)
- Fast switching
- 100% avalanche tested
- Improved dv/dt capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 28N50#C19267785HXY MOSFET · TO-3P | HXY MOSFET | TO-3P | 72 | ₹197.92 · 72 in stock | View |
 | IXTQ44N50P#C23403542Littelfuse/IXYS · TO-3P-3 | Littelfuse/IXYS | TO-3P-3 | 5 | ₹3,453.14 · 5 in stock | View |
 | OSH40N65#C42381449OSEN · TO-3PNB | OSEN | TO-3PNB | 2 | ₹208.69 · 2 in stock | View |
 | FDA28N50F#C606018onsemi · TO-3PN | onsemi | TO-3PN | 519 | ₹923.15 · 519 in stock | View |
 | FDA28N50#C105685onsemi · TO-3P-3 | onsemi | TO-3P-3 | 727 | ₹438.19 · 727 in stock | View |
