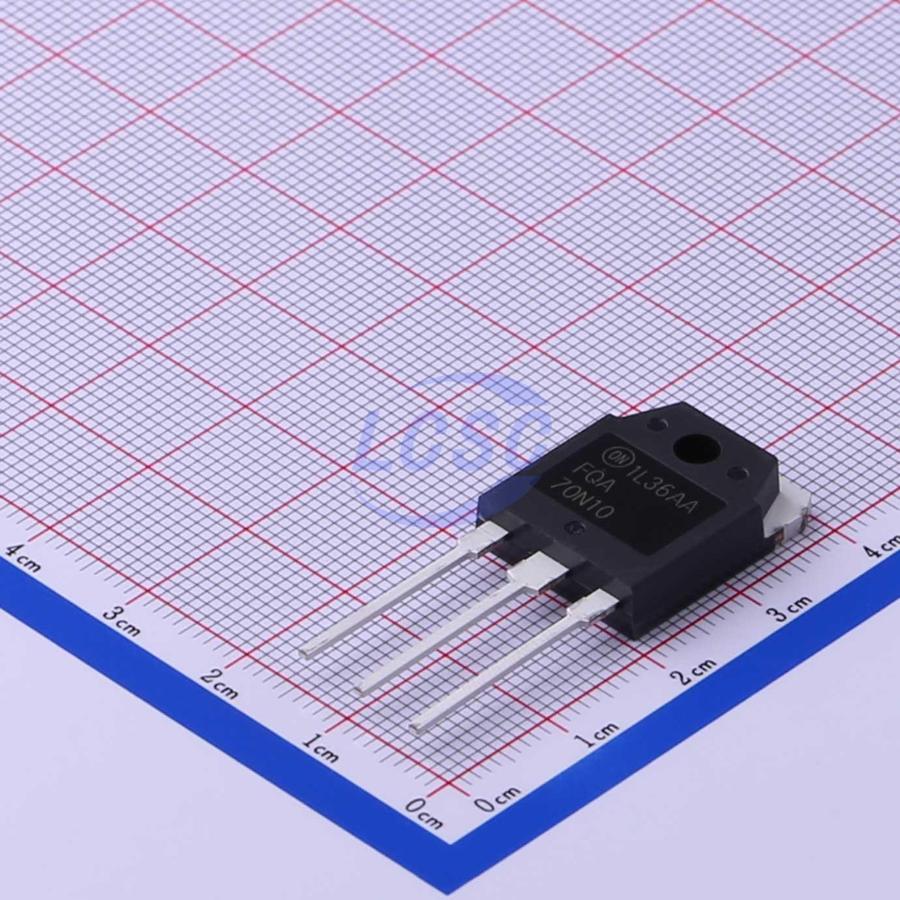

FQA70N10
N-Channel 100V 70A 214W Through Hole TO-3PN
TO-3PNROHS3 CompliantActive
MOSFET N-CH 100V 70A TO-3PN
- Manufacturer
- onsemi
- Manufacturer part #
- FQA70N10
- Store part #
- C463486
- Package / case
- TO-3PN
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C463486
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹629.56 | ₹629.56 |
| 10+ | ₹542.92 | ₹5,429.20 |
| 30+ | ₹491.55 | ₹14,746.50 |
| 90+ | ₹402.95 | ₹36,265.50 |
| 510+ | ₹379.00 | ₹1,93,290.00 |
| 990+ | ₹368.11 | ₹3,64,428.90 |
1 × ₹629.56
₹629.56
excl. GST
₹742.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
FQA70N10
₹629.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 720pF
- Ciss-Input Capacitance
- 3.3nF
- Pd - Power Dissipation
- 214W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 23mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@80V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.031 g
Overview
This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, audio amplifier, DC motor control, and variable switching power applications.
Applications
- switched mode power supplies
- audio amplifier
- DC motor control
- variable switching power applications
Key features
- 70 A, 100 V, RDS(on)=23 mΩ (Max) @ VGS=10 V, ID=35 A
- Low Gate Charge (Typ. 85 nC)
- Low Crss (Typ. 150 pF)
- 100% Avalanche Tested
- 175°C Maximum Junction Temperature Rating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQA70N10-OSEN#C50331601OSEN · TO-3PN | OSEN | TO-3PN | 29 | ₹158.20 · 29 in stock | View |
 | OSH70N10#C50331600OSEN · TO-3PN | OSEN | TO-3PN | 210 | ₹120.60 · 210 in stock | View |
 | MS200N10HIB0#C55042359MASPOWER · TO-3P | MASPOWER | TO-3P | 30 | ₹340.71 · 30 in stock | View |
| IXTQ96N15P#C24853981Littelfuse/IXYS · TO-3P | Littelfuse/IXYS | TO-3P | 30 | ₹1,187.04 · 30 in stock | View | |
 | TSA90N20MC#C46855375Truesemi · TO-3P | Truesemi | TO-3P | 13 | ₹254.88 · 13 in stock | View |
