FITIPOWERDatasheet (PDF)

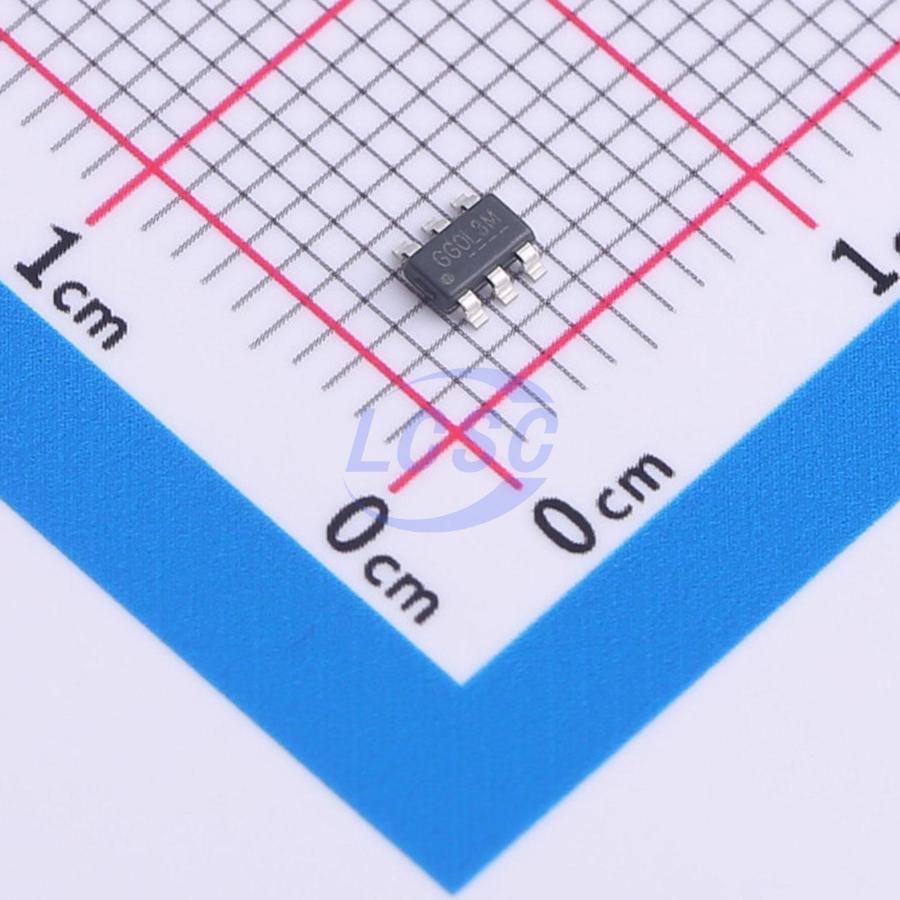

FR9206S9
Step-down type Adjustable 768mV~8V 3A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6ROHS CompliantActive
FR9206 Synchronous Step-Down DC/DC Converter
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FR9206S9
- Store part #
- C5156534
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C5156534
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.21 | ₹81.05 |
| 50+ | ₹12.77 | ₹638.50 |
| 150+ | ₹11.05 | ₹1,657.50 |
| 500+ | ₹9.75 | ₹4,875.00 |
| 3,000+ | ₹9.39 | ₹28,170.00 |
| 6,000+ | ₹8.88 | ₹53,280.00 |
5 × ₹16.21
₹81.05
excl. GST
₹95.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FR9206S9
₹81.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 768mV~8V
- Output Current
- 3A
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The FR9206 is a synchronous step-down DC/DC converter with fast constant on time (FCOT) mode control. It has integrated high-side (80mΩ, typ) and low-side (40mΩ, typ) power switches, and provides 3A continuous load current. It regulates input voltage from 4.5V to 18V, and down to an output voltage as low as 0.768V. Using FCOT control scheme provides fast transient response, which can minimize the component size without additional external compensation network.
Applications
- STB (Set-Top-Box)
- LCD Display, TV
- Distributed Power System
- Networking, XDSL Modem
Key features
- Low RDS(ON) Integrated Power MOSFET (80mΩ/40mΩ)
- Wide Input Voltage Range: 4.5V to 18V
- Output Voltage Range: 0.768V to 8V
- 3A Output Current
- FCOT Mode Enables Fast Transient Response
- Pseudo 500kHz Frequency Input
- Under Voltage Lockout
- Internal 1.5ms Soft-Start
- Cycle-by-Cycle Current Limit
- Hiccup Short Circuit Protection
- Over Temperature Protection with Auto Recovery
- TSOT-23-6 Package
