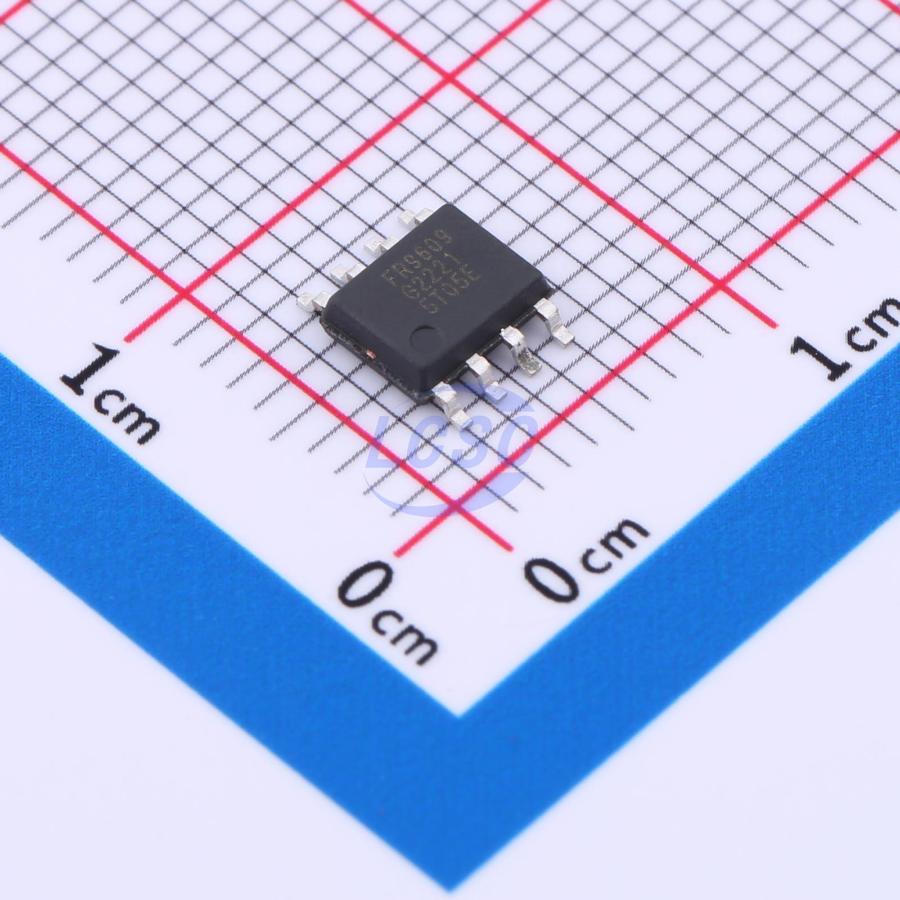

FR9609SP
Step-down type 340kHz Adjustable 925mV~28V 3A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
FR9609 Synchronous Step-Down DC/DC Converter
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FR9609SP
- Store part #
- C5162522
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,790 in stock
#C5162522
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.45 | ₹162.25 |
| 50+ | ₹25.89 | ₹1,294.50 |
| 150+ | ₹23.07 | ₹3,460.50 |
| 500+ | ₹19.57 | ₹9,785.00 |
| 2,500+ | ₹17.23 | ₹43,075.00 |
| 5,000+ | ₹16.29 | ₹81,450.00 |
5 × ₹32.45
₹162.25
excl. GST
₹191.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FR9609SP
₹162.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 340kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Operating status indication;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~28V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 925mV~28V
- Output Current
- 3A
- Quiescent Current
- 1.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
The FR9609 is a high efficiency, internal compensation and constant frequency current mode step-down synchronous DC/DC converter. It has integrated high-side (100mΩ, typ) and low-side (80mΩ, typ) power switches, and provides 3A continuous load current. It regulates input voltage from 4.5V to 28V, and down to an output voltage as low as 0.925V.
Applications
- STB (Set-Top-Box)
- LCD Display, TV
- Distributed Power System
- Networking, XDSL Modem
Key features
- Wide input voltage range: 4.5V to 28V
- Adjustable output voltage down to 0.925V
- 3A output current
- 340kHz switching frequency
- Adjustable soft-start or internal soft-start
- Internal power good function
- Cycle-by-cycle current limit
- Over-temperature protection with auto recovery
- OVP, UVLO
- Hiccup short circuit protection
- SOP-8 exposed pad package
- Low RDS(ON) integrated power MOSFET (100mΩ /80mΩ)
- Internal compensation function
- At light load condition, can operate at power saving mode to support high efficiency and reduce power lose
- Fault protection includes cycle-by-cycle current limit, UVLO, output overvoltage protection and thermal shutdown
- Soft-start function prevents inrush current at turn-on
- Uses current mode control scheme which provides fast transient response
- Internal compensation function reduces external compensation components and simplifies the design process
- In shutdown mode, the supply current is about 1μA
