FOJAN

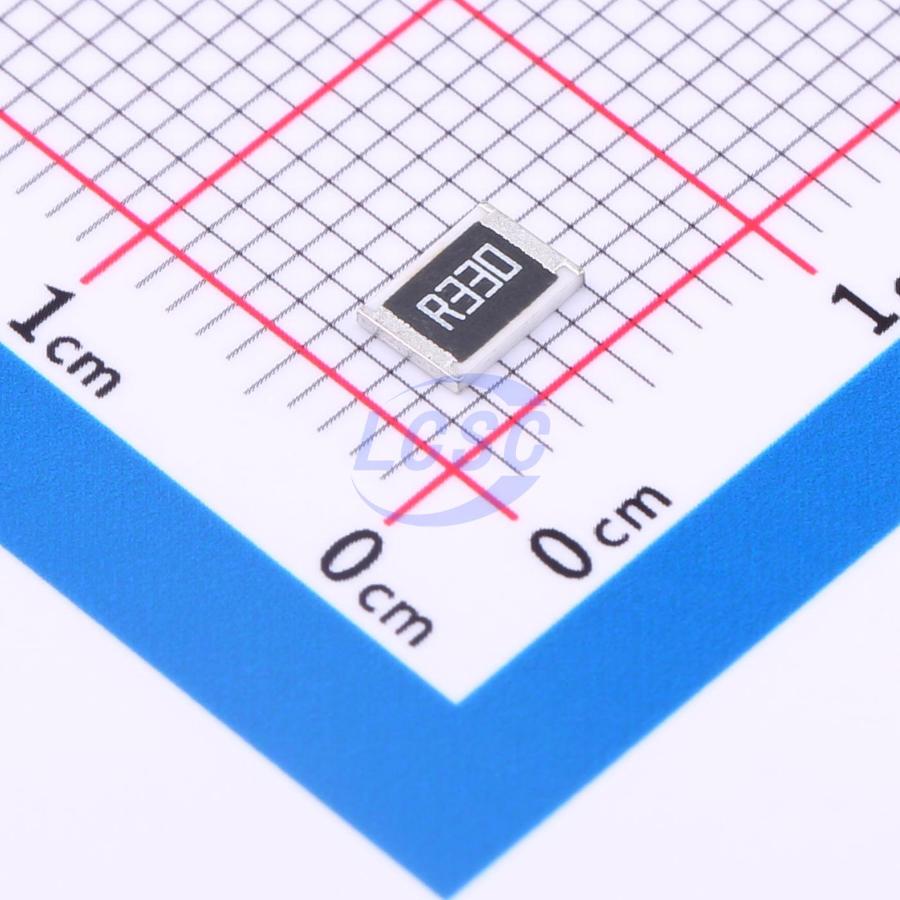

FRL1812JR330TS

750mW 330mΩ 200V Thick Film Resistor ±300ppm/℃ ±5% 1812 Chip Resistor - Surface Mount

1812RoHSActive

RES 330mΩ ±5% 750mW 1812

Manufacturer: FOJAN
Manufacturer part #: FRL1812JR330TS
Store part #: C5126088
Package / case: 1812
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,700 in stock

#C5126088

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
20+	₹5.46	₹109.20
200+	₹4.42	₹884.00
600+	₹3.84	₹2,304.00
4,000+	₹3.37	₹13,480.00
8,000+	₹3.07	₹24,560.00
20,000+	₹2.91	₹58,200.00

Quantity (min 20, multiples of 20)

20 × ₹5.46

₹109.20

excl. GST

₹128.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

FRL1812JR330TS

₹109.20 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Power(Watts): 750mW
Resistance: 330mΩ
Voltage Rating: 200V
Operating Temperature: -55℃~+155℃
Type: Thick Film Resistor
Temperature Coefficient: ±300ppm/℃
Tolerance: ±5%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.049 g

Overview

Applications

Overcurrent protection for switching power supplies and audio equipment, voltage regulators, power converters, chargers, LED driver power supplies, portable devices, etc.

Key features

Compact and lightweight
Miniature and lightweight
Stable electrical performance, high reliability
RoHS compliant
Halogen-free compliant
Low resistance value

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	FRL1812FR330TS#C3013361FOJAN · 1812	FOJAN	1812	10,560	₹4.99 · 10,560 in stock	View
