FOJANDatasheet (PDF)
FRS0805J5R1 TS

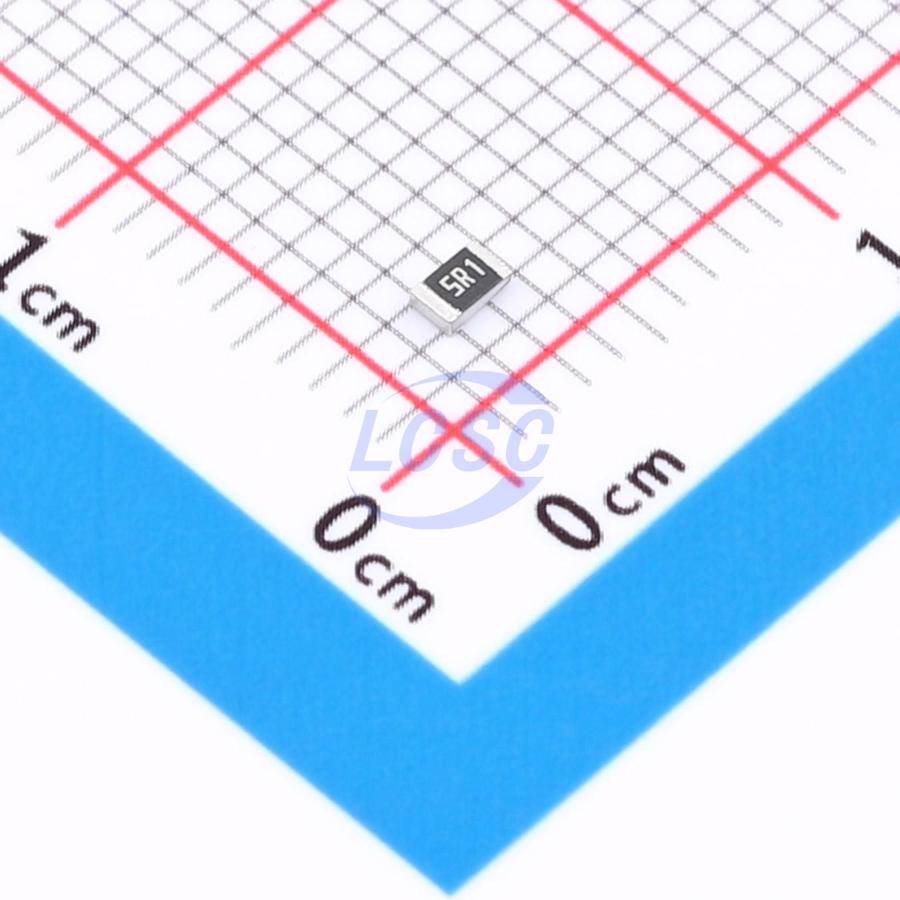

5.1Ω 125mW 150V Thick Film Resistor ±400ppm/℃ ±5% 0805 Chip Resistor - Surface Mount
0805RoHSActive
- Manufacturer
- FOJAN
- Manufacturer part #
- FRS0805J5R1 TS
- Store part #
- C54830324
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,500 in stock
#C54830324
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.41 | ₹120.50 |
| 500+ | ₹1.89 | ₹945.00 |
| 1,500+ | ₹1.60 | ₹2,400.00 |
| 5,000+ | ₹1.43 | ₹7,150.00 |
| 25,000+ | ₹1.28 | ₹32,000.00 |
| 50,000+ | ₹1.20 | ₹60,000.00 |
50 × ₹2.41
₹120.50
excl. GST
₹142.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FRS0805J5R1 TS
₹120.50 for 50 + GST
Specifications
- Resistance
- 5.1Ω
- Power(Watts)
- 125mW
- Voltage Rating
- 150V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±400ppm/℃
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.027 g
Overview
Applications
- Widely used in switching power supplies, overcurrent protection for audio equipment, voltage regulators, power converters, chargers, automotive engine controllers, industrial control equipment, and more.
Key features
- Compact size, lightweight
- Stable electrical performance, high reliability
- RoHS compliant
- Halogen-free compliant
- Significantly enhanced surge resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FRC0805J5R1TS#C2930297FOJAN · 0805 | FOJAN | 0805 | 6,43,000 | ₹0.5557 · 6,43,000 in stock | View |
 | FRH0805D5R10TS#C55348378FOJAN · 0805 | FOJAN | 0805 | 5,000 | ₹0.8467 · 5,000 in stock | View |
 | FRC0805F5R10TS#C2907270FOJAN · 0805 | FOJAN | 0805 | 10,21,600 | ₹0.5821 · 10,21,600 in stock | View |
 | FRQ0805F5R10TS#C55174772FOJAN · 0805 | FOJAN | 0805 | On request | Price on request | Quote |
