FOJANDatasheet (PDF)
FRS1210F1003TS

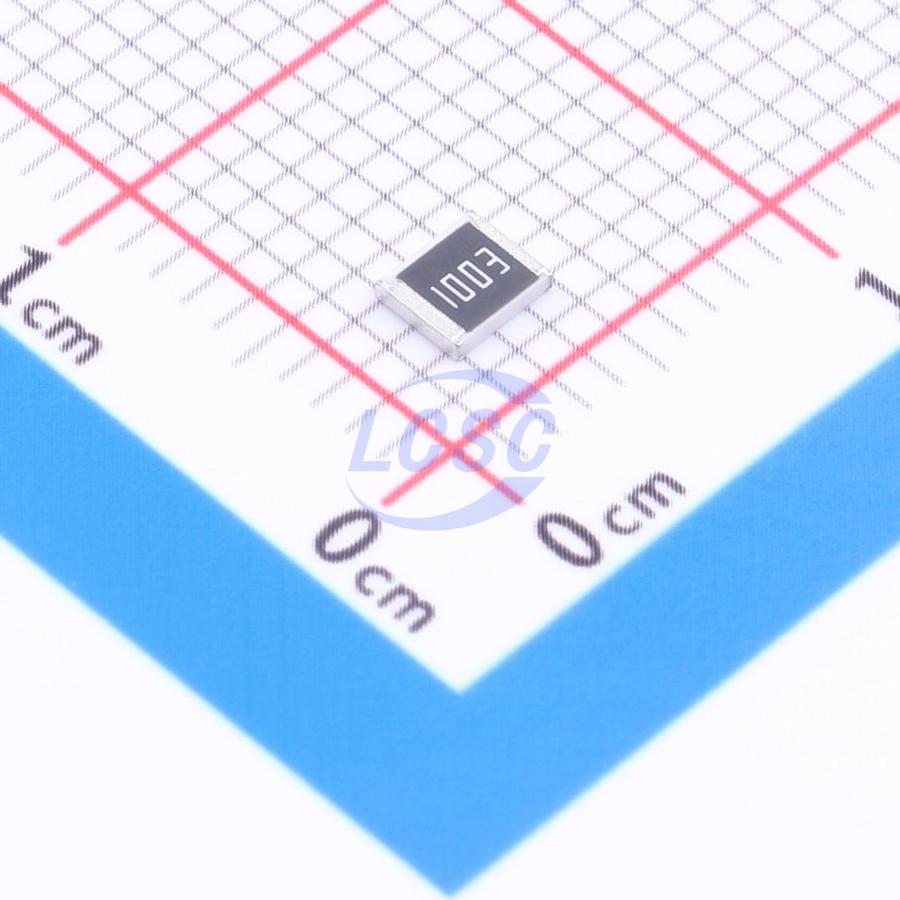

100kΩ 500mW 200V Thick Film Resistor ±100ppm/℃ ±1% 1210 Chip Resistor - Surface Mount
1210RoHSActive
- Manufacturer
- FOJAN
- Manufacturer part #
- FRS1210F1003TS
- Store part #
- C54619683
- Package / case
- 1210
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,550 in stock
#C54619683
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.69 | ₹134.50 |
| 500+ | ₹2.16 | ₹1,080.00 |
| 1,500+ | ₹1.87 | ₹2,805.00 |
| 5,000+ | ₹1.69 | ₹8,450.00 |
| 25,000+ | ₹1.53 | ₹38,250.00 |
| 50,000+ | ₹1.46 | ₹73,000.00 |
50 × ₹2.69
₹134.50
excl. GST
₹158.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FRS1210F1003TS
₹134.50 for 50 + GST
Specifications
- Resistance
- 100kΩ
- Power(Watts)
- 500mW
- Voltage Rating
- 200V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.034 g
Overview
Applications
- Widely used in switching power supplies, overcurrent protection for audio equipment, voltage regulators, power converters, chargers, automotive engine controllers, industrial control equipment, and more.
Key features
- Compact size, lightweight
- Stable electrical performance, high reliability
- RoHS compliant
- Halogen-free compliant
- Significantly enhanced surge resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FRC1210F1003TS#C2933800FOJAN · 1210 | FOJAN | 1210 | 68,300 | ₹1.79 · 68,300 in stock | View |
 | FRR1210F1003TS#C49196856FOJAN · 1210 | FOJAN | 1210 | 1,960 | ₹3.10 · 1,960 in stock | View |
