FOJANDatasheet (PDF)
FRS2512J682 TS

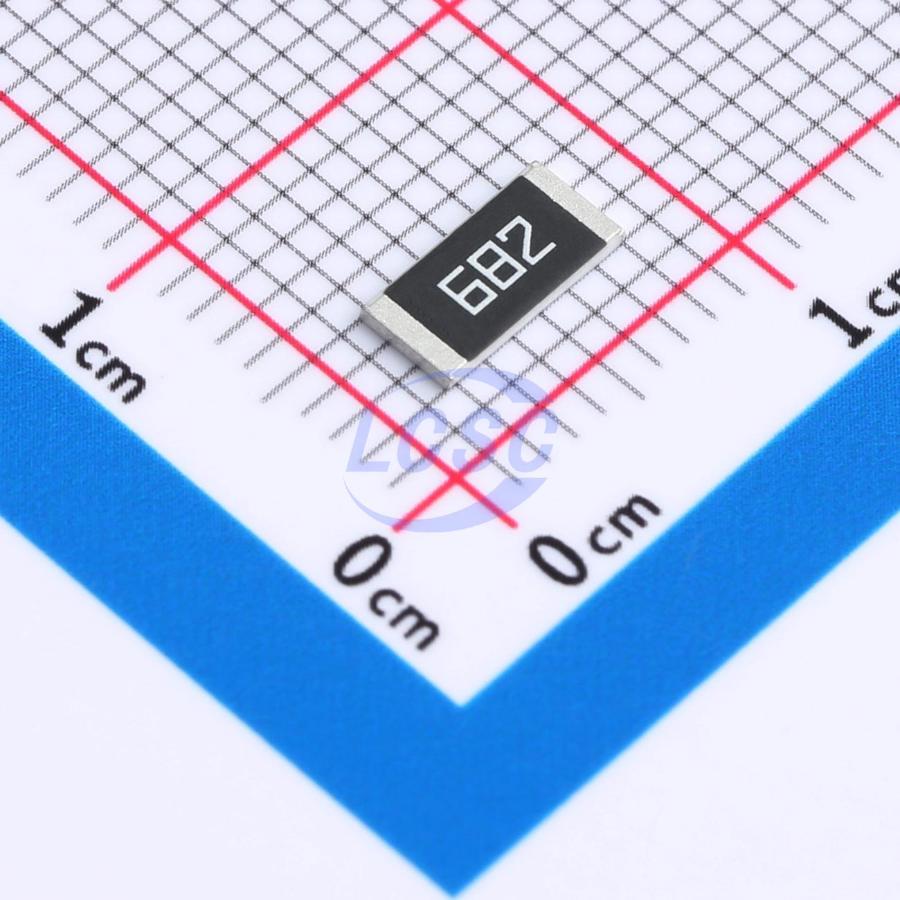

6.8kΩ 1W 200V Thick Film Resistor ±100ppm/℃ ±5% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 6800Ω ±5% 1W 2512
- Manufacturer
- FOJAN
- Manufacturer part #
- FRS2512J682 TS
- Store part #
- C42372225
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,860 in stock
#C42372225
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.72 | ₹87.20 |
| 100+ | ₹7.13 | ₹713.00 |
| 300+ | ₹6.32 | ₹1,896.00 |
| 1,000+ | ₹5.73 | ₹5,730.00 |
| 4,000+ | ₹5.25 | ₹21,000.00 |
| 8,000+ | ₹5.00 | ₹40,000.00 |
10 × ₹8.72
₹87.20
excl. GST
₹102.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FRS2512J682 TS
₹87.20 for 10 + GST
Specifications
- Resistance
- 6.8kΩ
- Power(Watts)
- 1W
- Voltage Rating
- 200V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.059 g
Overview
Applications
- Widely used in switching power supplies, overcurrent protection for audio equipment, voltage regulators, power converters, chargers, automotive engine controllers, industrial control equipment, and more.
Key features
- Compact size, lightweight
- Stable electrical performance, high reliability
- RoHS compliant
- Halogen-free compliant
- Significantly enhanced surge resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FRC2512J682TS#C3000668FOJAN · 2512 | FOJAN | 2512 | 8,340 | ₹3.74 · 8,340 in stock | View |
 | FRC2512F6801TS#C7467344FOJAN · 2512 | FOJAN | 2512 | 40,980 | ₹4.97 · 40,980 in stock | View |
