FOJANDatasheet (PDF)
FRS2512J683 TS

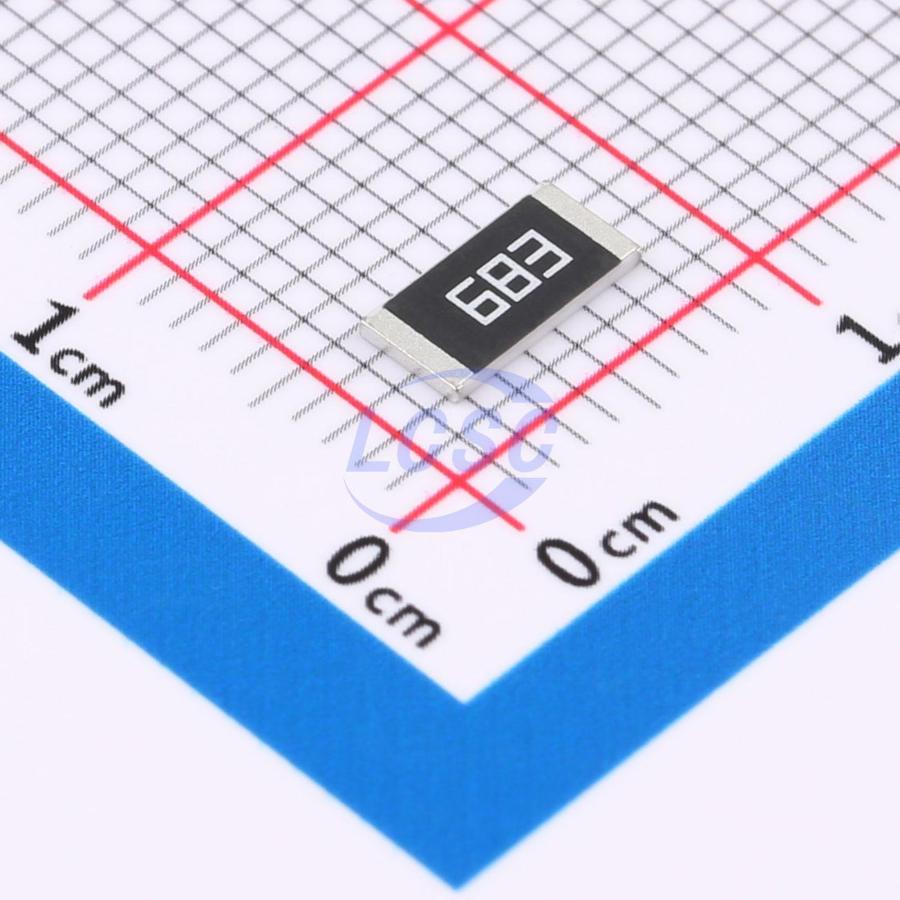

68kΩ 1W 200V Thick Film Resistor ±100ppm/℃ ±5% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 68000Ω ±5% 1W 2512
- Manufacturer
- FOJAN
- Manufacturer part #
- FRS2512J683 TS
- Store part #
- C42372226
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,390 in stock
#C42372226
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.51 | ₹95.10 |
| 100+ | ₹7.89 | ₹789.00 |
| 300+ | ₹7.08 | ₹2,124.00 |
| 1,000+ | ₹6.47 | ₹6,470.00 |
| 4,000+ | ₹5.99 | ₹23,960.00 |
| 8,000+ | ₹5.74 | ₹45,920.00 |
10 × ₹9.51
₹95.10
excl. GST
₹112.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FRS2512J683 TS
₹95.10 for 10 + GST
Specifications
- Resistance
- 68kΩ
- Power(Watts)
- 1W
- Voltage Rating
- 200V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.059 g
Overview
Applications
- Widely used in switching power supplies, overcurrent protection for audio equipment, voltage regulators, power converters, chargers, automotive engine controllers, industrial control equipment, and more.
Key features
- Compact size, lightweight
- Stable electrical performance, high reliability
- RoHS compliant
- Halogen-free compliant
- Significantly enhanced surge resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FRC2512J683 TS#C2960758FOJAN · 2512 | FOJAN | 2512 | 26,480 | ₹4.52 · 26,480 in stock | View |
 | FRC2512F6802TS#C5159762FOJAN · 2512 | FOJAN | 2512 | 1,560 | ₹4.55 · 1,560 in stock | View |
 | FRP2512F6802TS#C7468207FOJAN · 2512 | FOJAN | 2512 | 2,300 | ₹6.03 · 2,300 in stock | View |
