NyfeaDatasheet (PDF)

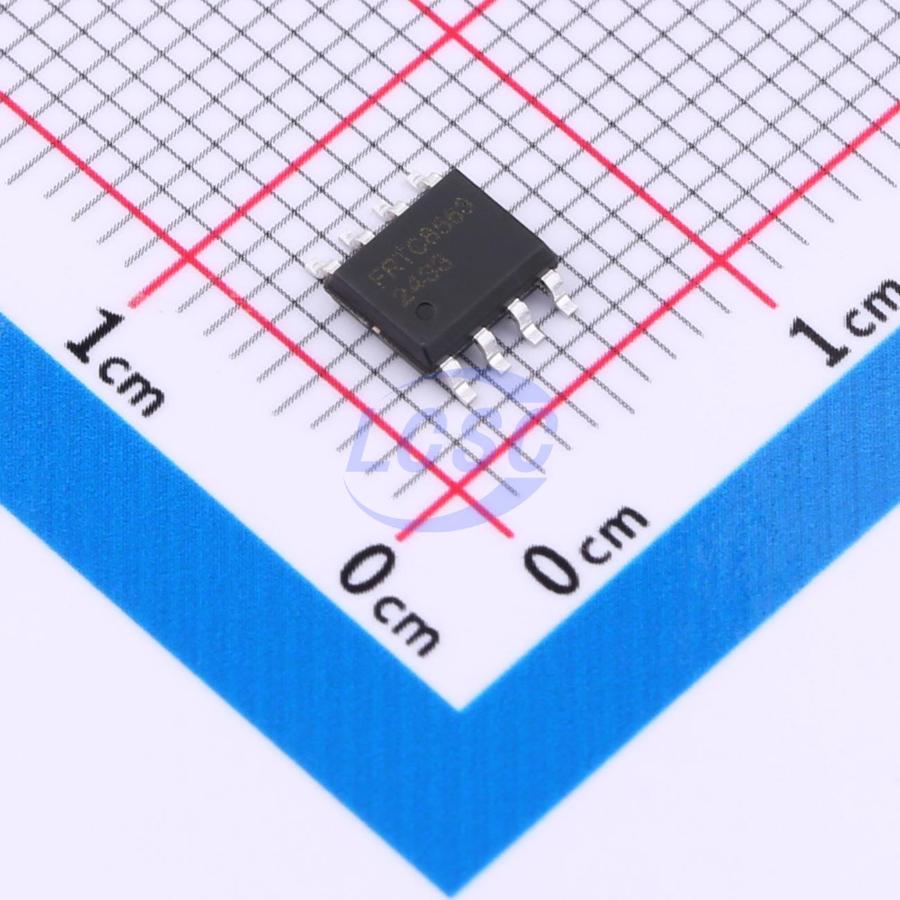

FRTC8563S
External Yes SOP-8 Real Time Clocks
SOP-8RoHSActive
Real Time Clock
- Manufacturer
- Nyfea
- Manufacturer part #
- FRTC8563S
- Store part #
- C42413379
- Package / case
- SOP-8
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,720 in stock
#C42413379
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.31 | ₹136.55 |
| 50+ | ₹21.27 | ₹1,063.50 |
| 150+ | ₹18.69 | ₹2,803.50 |
| 500+ | ₹15.48 | ₹7,740.00 |
| 2,500+ | ₹14.05 | ₹35,125.00 |
| 5,000+ | ₹13.18 | ₹65,900.00 |
5 × ₹27.31
₹136.55
excl. GST
₹161.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FRTC8563S
₹136.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 1.7V~5.5V
- Features
- Programmable clock output;Alarm function
- crystal oscillator
- External
- Alarm Output
- Yes
- Current - Supply
- 25uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.215 g
Overview
FRTC8563 is a low-power clock/calendar chip with programmable square-wave output. Address and data are transferred serially via a two-wire bidirectional bus. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. End-of-month date is automatically adjusted for months with fewer than 31 days, including leap year correction. The clock operates in 24-hour format.
Applications
- Digital still cameras
- Digital video cameras
- Printers
- Copiers
- Mobile devices
Key features
- External 32.768kHz crystal oscillator
- I²C bus high-speed mode support (400kHz)
- Time (hours/minutes/seconds) and calendar (year/month/day/day-of-week) counters (BCD format)
- Programmable square wave output
- Oscillator stop flag
- Low standby current: 400nA typical at VDD = 3.0V and TA = 25ºC
- Operating range: 1.7V to 5.5V
- Operating temperature range: -40~125ºC
