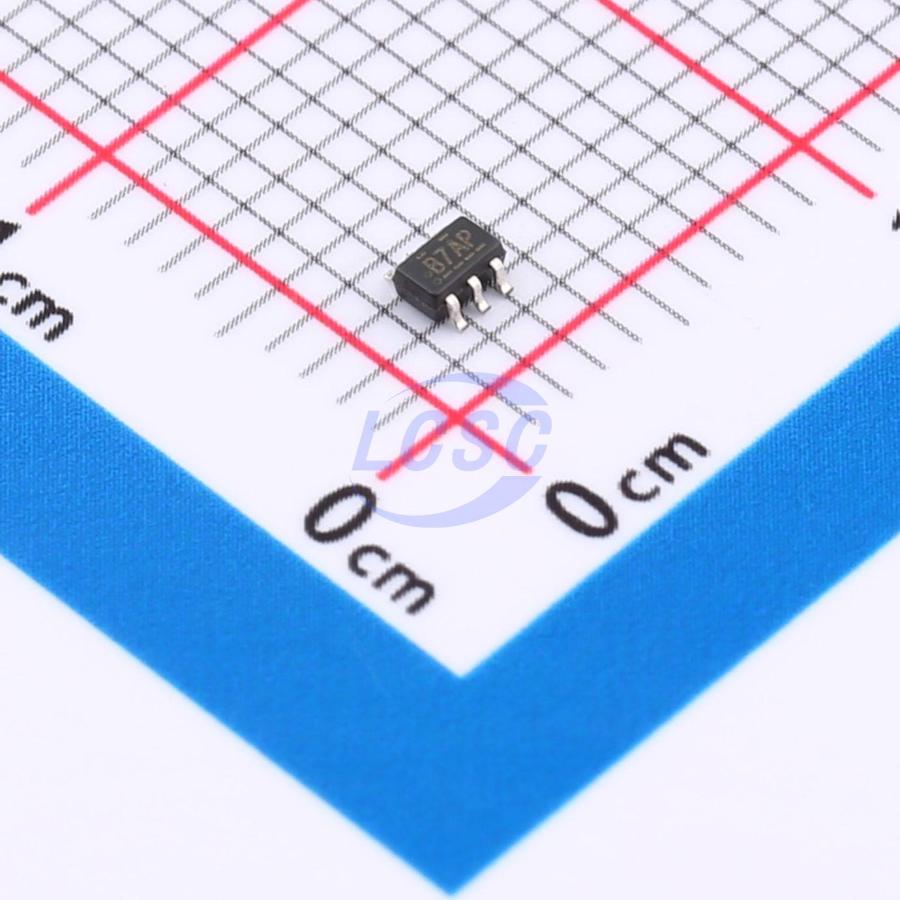

TECH PUBLIC

FSA3157P6X

1 6Ω 1.65V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: FSA3157P6X
Store part #: C41431789
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,410 in stock

#C41431789

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.16	₹81.60
100+	₹6.46	₹646.00
300+	₹5.61	₹1,683.00
1,000+	₹4.96	₹4,960.00
5,000+	₹4.45	₹22,250.00
10,000+	₹4.19	₹41,900.00

Quantity (min 10, multiples of 10)

10 × ₹8.16

₹81.60

excl. GST

₹96.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FSA3157P6X

₹81.60 for 10 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 6Ω
Voltage - Supply: 1.65V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.012 g

Overview

The is a low voltage single-pole,double-throw (SPDT) analog switch intending for use in chopping,modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 6Ω when A = 5V
1.8V Logic Compatible Control Pin A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-Isolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @340MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2uA)
With Very Wide Supply Range (1.65V ~ 5.5V)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
ET3157#C41431790TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	3,410	₹6.65 · 3,410 in stock	View
NC7SB3157P6X#C41431791TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	12,600	₹7.06 · 12,600 in stock	View
SN74LVC1G3157DCKR#C41431793TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	4,210	₹6.87 · 4,210 in stock	View
TPNLASB3157DFT2G#C42449036TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	2,995	₹12.90 · 2,995 in stock	View
74LVC1G3157GW-TP#C46472230TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	2,250	₹8.06 · 2,250 in stock	View
