TECH PUBLIC

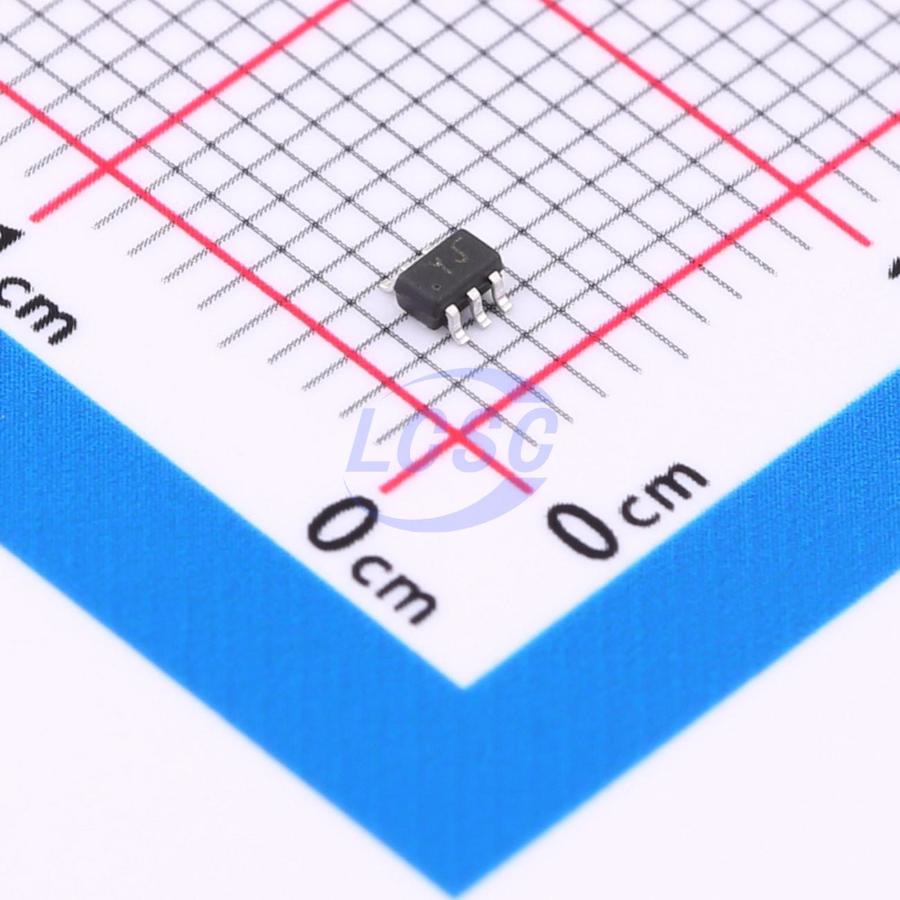

74LVC1G3157GW-TP

6Ω 1.5V~5.5V 1 SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC1G3157GW-TP
Store part #: C46472230
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,250 in stock

#C46472230

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.06	₹80.60
100+	₹6.38	₹638.00
300+	₹5.53	₹1,659.00
3,000+	₹4.90	₹14,700.00
6,000+	₹4.39	₹26,340.00
9,000+	₹4.14	₹37,260.00

Quantity (min 10, multiples of 10)

10 × ₹8.06

₹80.60

excl. GST

₹95.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G3157GW-TP

₹80.60 for 10 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 6Ω
Voltage - Supply: 1.5V~5.5V
Number of Channels: 1
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, Rₒₙ = 6Ω
1.8V Logic Compatible
Control Pin A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-isolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @700MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TS5A63157DCKR-TP#C46472231TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	2,860	₹8.93 · 2,860 in stock	View
NLAS4157DFT2G-TP#C42370507TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	8,180	₹12.48 · 8,180 in stock	View
PI5A4157CEX-TP#C42370513TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	2,475	₹12.09 · 2,475 in stock	View
TPSGM4157YC6#C42370558TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	2,295	₹12.87 · 2,295 in stock	View
TS5A3159DCKR-TP#C46472234TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	10,345	₹15.86 · 10,345 in stock	View
