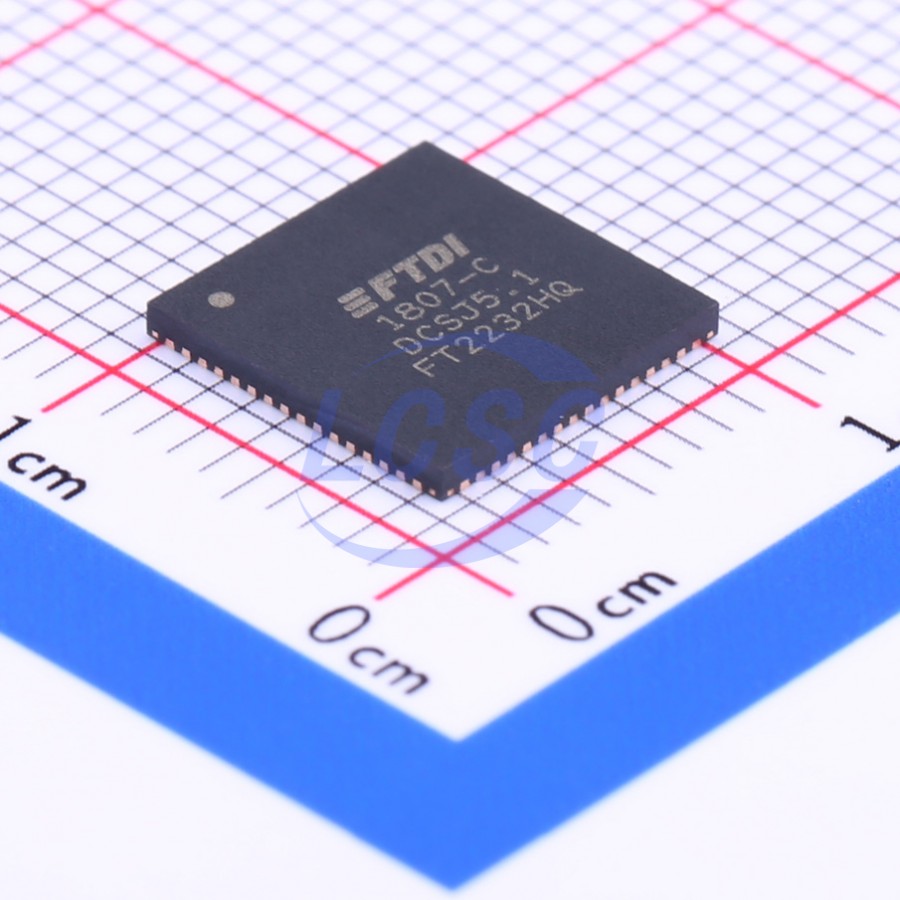

FT2232HQ-REEL

The FT2232H is a USB 2.0 High Speed (480Mb/s) to UART/FIFO IC. It has the capability of being configured in a variety of industry standard serial or parallel interfaces.

Applications

• Single chip USB to dual channel UART (RS232, RS422 or RS485).
• Single chip USB to dual channel FIFO.
• Single chip USB to dual channel JTAG.
• Single chip USB to dual channel SPI.
• Single chip USB to dual channel I2C.
• Single chip USB to dual channel Bit-Bang.
• Single chip USB to dual combination of any of above interfaces.
• Single chip USB to Fast Serial Optic Interface.
• Single chip USB to CPU target interface (as memory), double and independent.
• Single chip USB to Host Bus Emulation (as CPU).
• PDA to USB data transfer
• USB Smart Card Readers
• USB Instrumentation
• USB Industrial Control
• USB MP3 Player Interface
• USB FLASH Card Reader / Writers
• Set Top Box PC - USB interface
• USB Digital Camera Interface
• USB Bar Code Readers

Key features

• Single chip USB to dual serial / parallel ports with a variety of configurations. Entire USB protocol handled on the chip. No USB specific firmware programming required.
• USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible. Dual Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I²C, SPI or bit-bang) design. Dual independent UART or FIFO or MPSSE ports.
• Independent Baud rate generators. RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter). USB to parallel FIFO transfer data rate up to 8 Mbyte/Sec.
• Single channel synchronous FIFO mode for transfers upto 40 Mbytes/Sec
• CPU-style FIFO interface mode simplifies CPU interface design.
• MCU host bus emulation mode configuration option.
• Fast Opto-Isolated serial interface option.
• FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
• Adjustable receive buffer timeout. Option for transmit and receive LED drive signals on each channel. Enhanced bit-bang Mode interface option with RD# and WR# strobes FT245B-style FIFO interface option with bidirectional data bus and simple 4 wire handshake interface.
• Highly integrated design includes +1.8V LDO regulator for VCORE, integrated POR function and on chip clock multiplier PLL (12MHz – 480MHz).
• Asynchronous serial UART interface option with full hardware handshaking and modem interface signals.
• Fully assisted hardware or X-On / X-Off software handshaking.
• UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.
• Auto-transmit enable control for RS485 serial applications using TXDEN pin.
• Operational configuration mode and USB Description strings configurable in external EEPROM over the USB interface.
• Configurable I/O drive strength (4, 8, 12 or 16mA) and slew rate.
• Low operating and USB suspend current.
• Supports bus powered, self-powered and highpower bus powered USB configurations.
• UHCI/OHCI/EHCI host controller compatible. USB Bulk data transfer mode (512 byte packets in High Speed mode).
• +1.8V (chip core) and +3.3V I/O interfacing (+5V Tolerant).
• Extended -40°C to 85°C industrial operating temperature range.
• Compact 64-LD Lead Free LQFP or QFN package
• Available in compact Pb-free 56 Pin VQFN packages (RoHS compliant)
• +3.3V single supply operating voltage range. ESD protection for FT2232H IO’s: Human Body Model (HBM) ±2KV, Machine Mode (MM) ±200V, Charge Device Model (CDM) ±500V, Latch-up free.
