FT234XD-R FTDI
FTDI

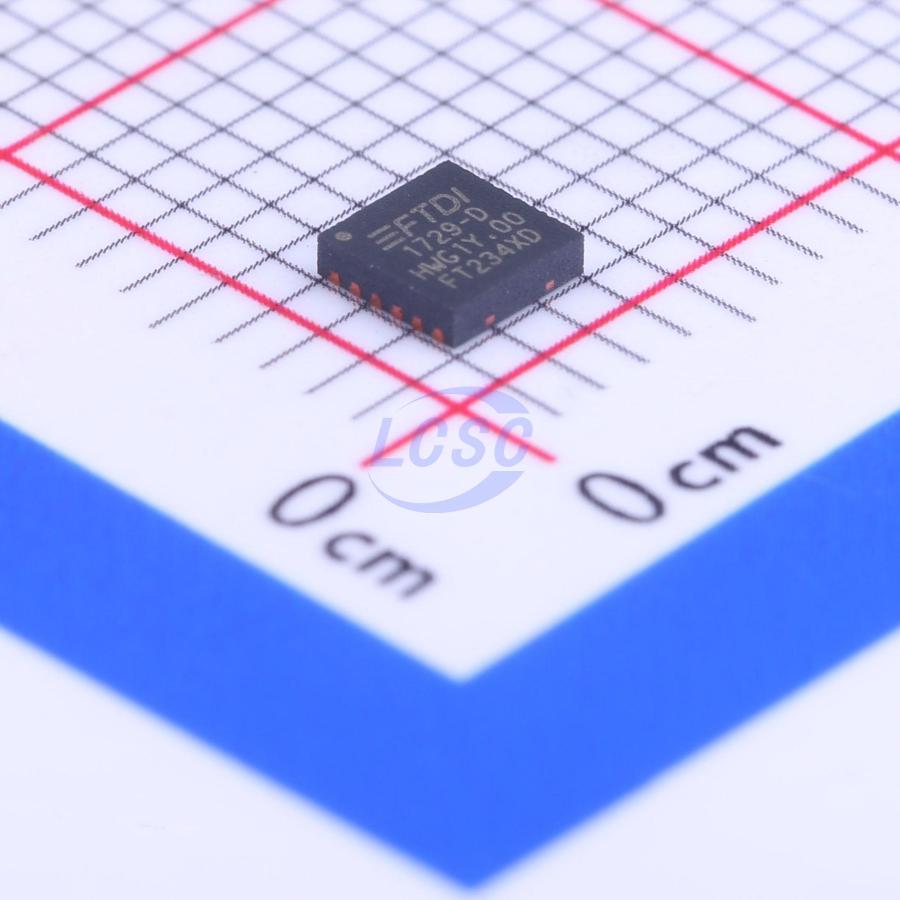

FT234XD-R

USB to UART 3Mbps DFN-12(3x3) Controllers RoHS

PopularDFN-12(3x3)ROHS3 CompliantActive

USB to BASIC UART IC

Manufacturer
FTDI
Manufacturer part #
FT234XD-R
Store part #
C132158
Package / case
DFN-12(3x3)
Category
Controllers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

464 in stock

#C132158

Stock & price checked 6 days ago

QuantityUnit pricePack price
1+₹694.86₹694.86
10+₹600.56₹6,005.60
30+₹544.54₹16,336.20
100+₹445.72₹44,572.00
500+₹419.71₹2,09,855.00
1,000+₹407.96₹4,07,960.00

1 × ₹694.86

₹694.86

excl. GST

₹819.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 5,000 per reel

FT234XD-R

₹694.86 for 1 + GST

Specifications

Features
Programmable baud rate;Power-on reset;FIFO buffer;Hardware flow control support;Built-in clock generator
Voltage - Supply
2.97V~5.5V
Operating Temperature
-40℃~+85℃
Applications Function
USB to UART
Quiescent Supply Current
125uA
USB Protocol
USB 2.0
Current - Supply
8mA
Data Rate
3Mbps

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
5,000 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.097 g

Overview

The FT234XD is a USB to serial UART interface with optimised packaging (3mm x 3mm 12 pin DFN) for smaller PCB designs.

Applications

  • USB to RS232/RS422/RS485 Converters
  • Upgrading Legacy Peripherals to USB
  • Utilising USB to add system modularity
  • Incorporate USB interface to enable PC transfers for development system communication
  • Cellular and Cordless Phone USB data transfer cables and interfaces
  • Interfacing MCU/PLD/FPGA based designs to add USB connectivity
  • USB Audio and Low Bandwidth Video data transfer
  • USB Smart Card Readers
  • USB Instrumentation
  • USB Industrial Control
  • USB FLASH Card Reader and Writers
  • Set Top Box PC - USB interface
  • USB Wireless Modems
  • USB Bar Code Readers
  • USB dongle implementations for Software/Hardware Encryption and Wireless Modules
  • Detection of dedicated charging port for battery charging at higher supply currents.

Key features

  • Single chip USB to asynchronous serial data transfer interface. Entire USB protocol handled on the chip. No USB specific firmware programming required.
  • Fully integrated 2048 byte multi - time programmable (MTP) memory, storing device descriptors and CBUS I/O configuration.
  • Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue - less interface to external MCU or FPGA.
  • Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, and RS232) at TTL levels.
  • 512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
  • FTDI’s royalty - free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
  • Configurable CBUS I/O pin.
  • Transmit and receive LED drive signals.
  • UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
  • Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
  • USB Battery Charging Detection. Allows for USB peripheral devices to detect the presence of a higher power source to enable improved charging.
  • True 3.3V CMOS drive output and TTL input; Operates down to 1V8 with external pull ups.
  • Tolerant of 5V input.
  • UART signal inversion option.
  • Internal 3.3V/1.8V LDO regulators.
  • Low operating and USB suspend current; 8mA (active - typ) and 70uA (suspend - typ).
  • UHCI/OHCI/EHCI host controller compatible.
  • USB 2.0 Full Speed compatible.
