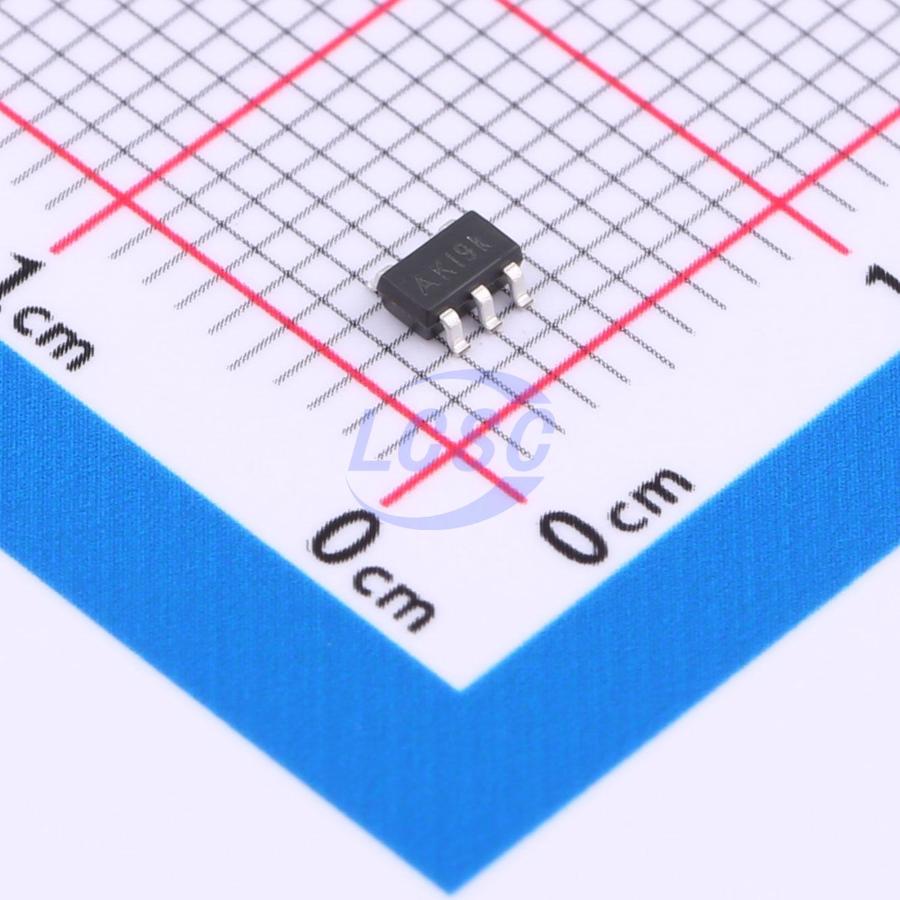

FMD(Fremont Micro Devices)

FT24C02A-KLR-T

2Kbit 1MHz I2C SOT-23-5 Memory RoHS

SOT-23-5ROHS CompliantActive

2K Serial EEPROM

Manufacturer: FMD(Fremont Micro Devices)
Manufacturer part #: FT24C02A-KLR-T
Store part #: C5189122
Package / case: SOT-23-5
Category: Memory
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,370 in stock

#C5189122

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.26	₹72.60
100+	₹5.74	₹574.00
300+	₹4.97	₹1,491.00
1,000+	₹4.41	₹4,410.00
5,000+	₹3.96	₹19,800.00
10,000+	₹3.73	₹37,300.00

Quantity (min 10, multiples of 10)

10 × ₹7.26

₹72.60

excl. GST

₹85.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FT24C02A-KLR-T

₹72.60 for 10 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
Memory Size: 2Kbit
Voltage - Supply: 1.8V~5.5V;3mA
Clock Frequency: 1MHz
Access Time: 900ns
Data Retention - TDR (Year): 100 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 1uA
Write Cycle Endurance: 1,000,000 cycles
Interface: I2C

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.043 g

Overview

The FT24C02A is 2048 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 256 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN and 5-lead SOT-23/TSOT-23 packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.

Key features

Low voltage and low power operations:
FT24C02A: VCC = 1.8V to 5.5V, Industrial temperature range (-40 ℃ to 85 ℃).
FT24C02A-Kxx: With 3 bits device address, the devices are suitable for all application. (For use of 5 pins package, the device address A2, A1, and A0 bits must be set to zero)
16 bytes page write mode.
Partial page write operation allowed.
Internally organized: 256x8 (2K).
Standard 2-wire bi-directional serial interface.
Schmitt trigger, filtered inputs for noise protection.
Self-timed programming cycle (5ms maximum).
1 MHz (2.5 - 5V), 400 kHz (1.8V) Compatibility.
Automatic erase before write operation.
Write protect pin for hardware data protection.
High reliability: typically 1,000,000 cycles endurance.
100 years data retention.
Standard 8-pin DIP/SOP/MSOP/TSSOP/DFN and 5-pin SOT-23/TSOT-23 Pb-free packages.
