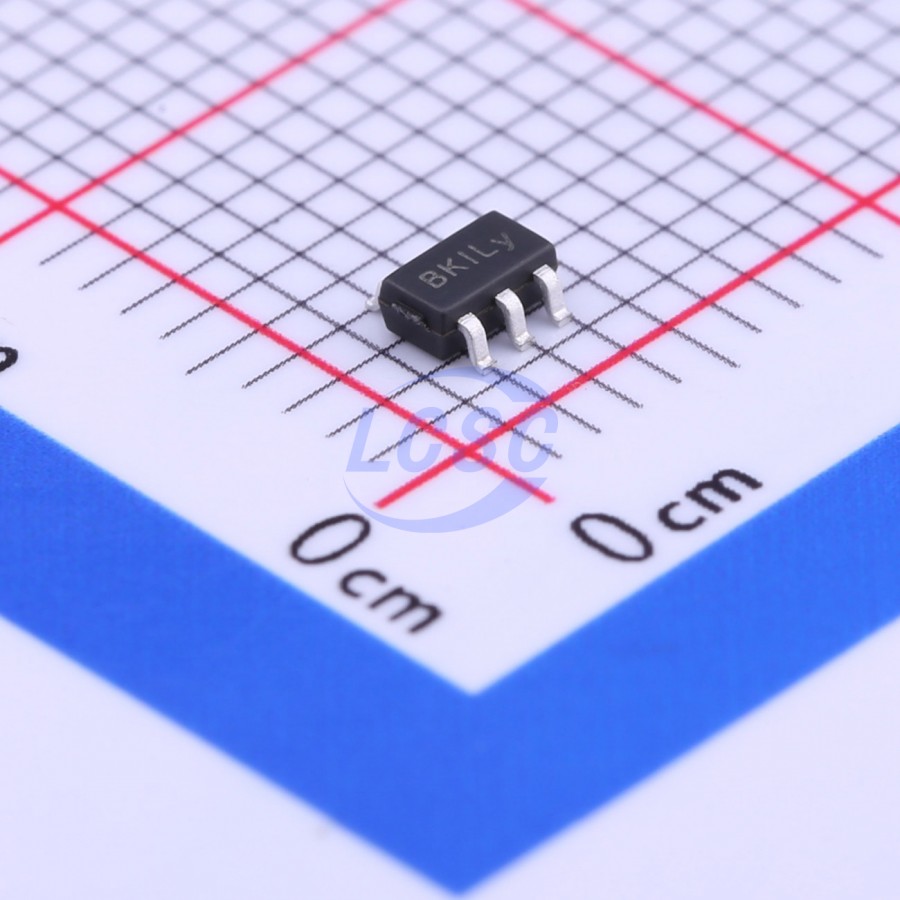

FMD(Fremont Micro Devices)

FT24C04A-KLR-T

4Kbit 1MHz I2C SOT-23-5 Memory

SOT-23-5RoHSActive

4K bit Two-Wire Serial EEPROM

Manufacturer: FMD(Fremont Micro Devices)
Manufacturer part #: FT24C04A-KLR-T
Store part #: C232867
Package / case: SOT-23-5
Category: Memory
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,505 in stock

#C232867

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.74	₹58.70
50+	₹9.55	₹477.50
150+	₹8.45	₹1,267.50
500+	₹7.63	₹3,815.00
3,000+	₹6.97	₹20,910.00
6,000+	₹6.64	₹39,840.00

Quantity (min 5, multiples of 5)

5 × ₹11.74

₹58.70

excl. GST

₹69.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FT24C04A-KLR-T

₹58.70 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Noise suppression function
Memory Size: 4Kbit
Voltage - Supply: 1.8V~5.5V;3mA
Clock Frequency: 1MHz
Access Time: 0.9us
Data Retention - TDR (Year): 100 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 1uA
Write Cycle Endurance: 1,000,000 cycles
Interface: I2C

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The FT24C04A-KXX is 4096 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 512 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN and 5-lead SOT-23/TSOT-23 packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended Vcc range (1.8V to 5.5V) devices enables wide spectrum of applications.

Key features

Low voltage and low power operations:
FT24C04A-KXX: VCC = 1.8V to 5.5V, Industrial temperature range (-40℃ to 85℃).
Maximum Standby current < 1μA (typically 0.02μA and 0.06μA @ 1.8V and 5.5V respectively).
16 bytes page write mode.
Partial page write operation allowed.
Internally organized: 512x8 (4K).
Standard 2-wire bi-directional serial interface.
Write protect pin for hardware data protection.
Schmitt trigger, filtered inputs for noise protection.
Self-timed programming cycle (5ms maximum).
1 MHz (2.5V - 5V), 400kHz (1.8V) Compatibility.
Automatic erase before write operation.
High reliability: typically 1,000,000 cycles endurance.
100 years data retention.
Standard 8-pin DIP/SOP/MSOP/TSSOP/DFN and 5-pin SOT-23/TSOT-23 Pb-free packages.
