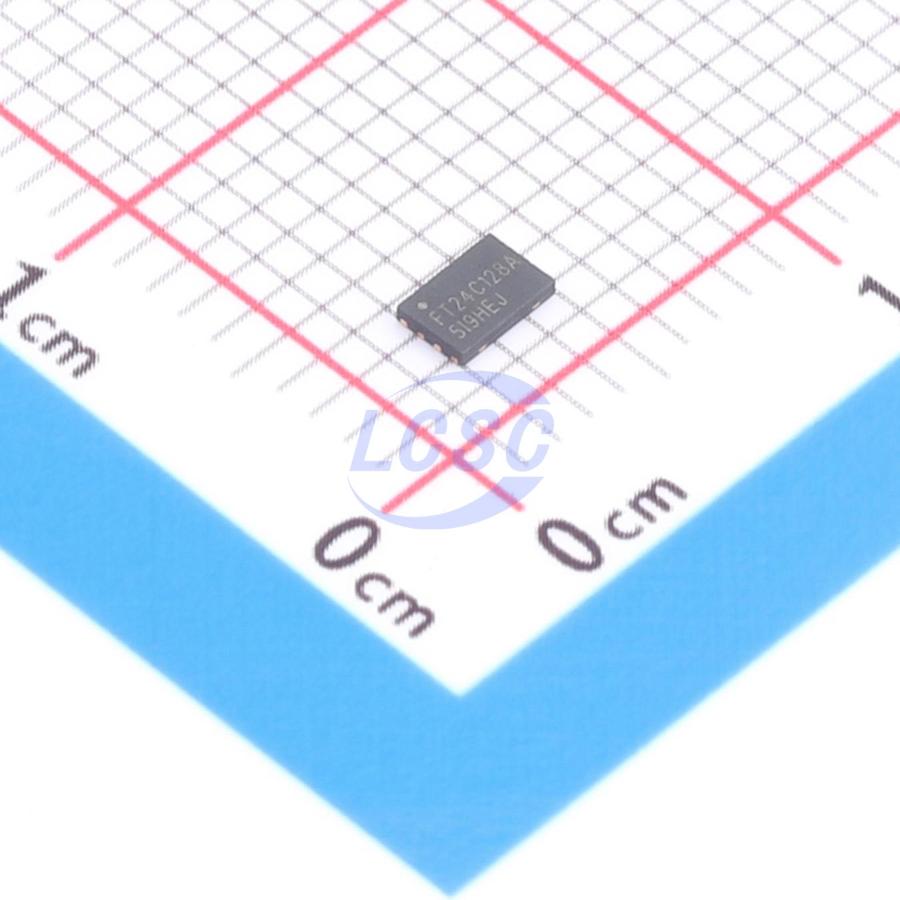

FT24C128A-TNR-T
128Kbit 1MHz I2C UDFN-8(2x3) Memory
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT24C128A-TNR-T
- Store part #
- C53085299
- Package / case
- UDFN-8(2x3)
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
890 in stock
#C53085299
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.26 | ₹91.30 |
| 50+ | ₹14.49 | ₹724.50 |
| 150+ | ₹12.61 | ₹1,891.50 |
| 500+ | ₹11.21 | ₹5,605.00 |
| 3,000+ | ₹10.07 | ₹30,210.00 |
| 6,000+ | ₹9.51 | ₹57,060.00 |
5 × ₹18.26
₹91.30
excl. GST
₹107.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FT24C128A-TNR-T
₹91.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The FT24C128A series is a 131,072-bit serial EEPROM organized as 16,384 words of 8 bits each. Manufactured using a proprietary advanced CMOS process, these devices are suited for low-power and low-voltage applications. They are available in standard 8-pin DIP, 8-pin SOP, 8-pin MSOP, 8-pin TSSOP, and 8-pin DFN packages. All read and write operations are implemented via a standard two-wire serial interface. The extended VCC operating range of 1.8V to 5.5V makes these devices suitable for a wide range of applications.
Key features
- Low-voltage and low-power operation: VCC = 1.8V to 5.5V
- 64-byte page write mode
- Partial page write supported
- Internal organization: 16,384 × 8
- Standard two-wire bidirectional serial interface
- Schmitt trigger inputs with noise suppression filter
- Self-timed write cycle
- Compatible with 1 MHz and 400 kHz operation
- Auto-erase before write operation
- Write protect pin for hardware data protection
- High reliability
- Data retention
- Industrial temperature range: -40℃ to 85℃
- Standard 8-pin DIP/SOP/MSOP/TSSOP/UDFN lead-free package
