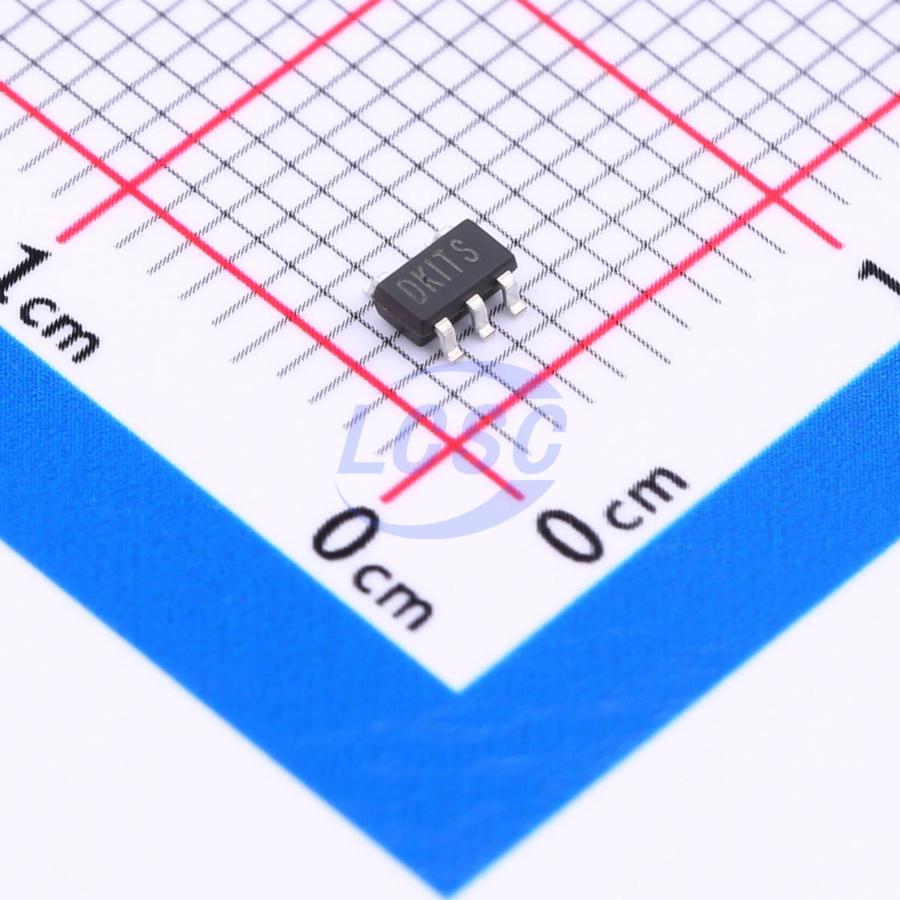

FT24C16A-KLR-T
16Kbit 1MHz I2C SOT-23-5 Memory
Two-Wire Serial EEPROM
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT24C16A-KLR-T
- Store part #
- C5263774
- Package / case
- SOT-23-5
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42,385 in stock
#C5263774
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.37 | ₹61.85 |
| 50+ | ₹10.04 | ₹502.00 |
| 150+ | ₹8.88 | ₹1,332.00 |
| 500+ | ₹8.00 | ₹4,000.00 |
| 3,000+ | ₹7.03 | ₹21,090.00 |
| 6,000+ | ₹6.67 | ₹40,020.00 |
5 × ₹12.37
₹61.85
excl. GST
₹72.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FT24C16A-KLR-T
₹61.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The FT24C16A is 16,384 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 2,048 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8 - lead DIP, 8 - lead SOP, 8 - lead MSOP, 8 - lead TSSOP, 8 - lead DFN, 8 - lead UDFN and 5 - lead SOT23/TSOT - 23 packages. A standard 2 - wire serial interface is used to address all read and write functions. Our extended VCC range (1.7V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: FT24C16A: VCC = 1.7V to 5.5V, Industrial temperature range (-40℃ to 85℃)
- 16 bytes page write mode
- Partial page write operation allowed
- Internally organized: 2048x8 (16K)
- Standard 2 - wire bi - directional serial interface
- Schmitt trigger, filtered inputs for noise protection
- Self - timed programming cycle (5ms maximum)
- 1 MHz (2.5 - 5V), 400 kHz (1.7V) Compatibility
- Automatic erase before write operation
- Write protect pin for hardware data protection
- High reliability: typically 1,000,000 cycles endurance
- 100 years data retention
- Standard 8 - pin DIP/SOP/MSOP/TSSOP/DFN/UDFN and 5 - pin SOT - 23/TSOT - 23 Pb - free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| FT24C16A-ULR-T#C20520592FMD(Fremont Micro Devices) · SOT-23-5 | FMD(Fremont Micro Devices) | SOT-23-5 | On request | Price on request | Quote | |
| FT24C16A-ELR-B#C417362FMD(Fremont Micro Devices) · SOT-23-5 | FMD(Fremont Micro Devices) | SOT-23-5 | On request | Price on request | Quote | |
 | FT24C16A-EPR-T#C232876FMD(Fremont Micro Devices) · TSOT-23-5 | FMD(Fremont Micro Devices) | TSOT-23-5 | On request | Price on request | Quote |
