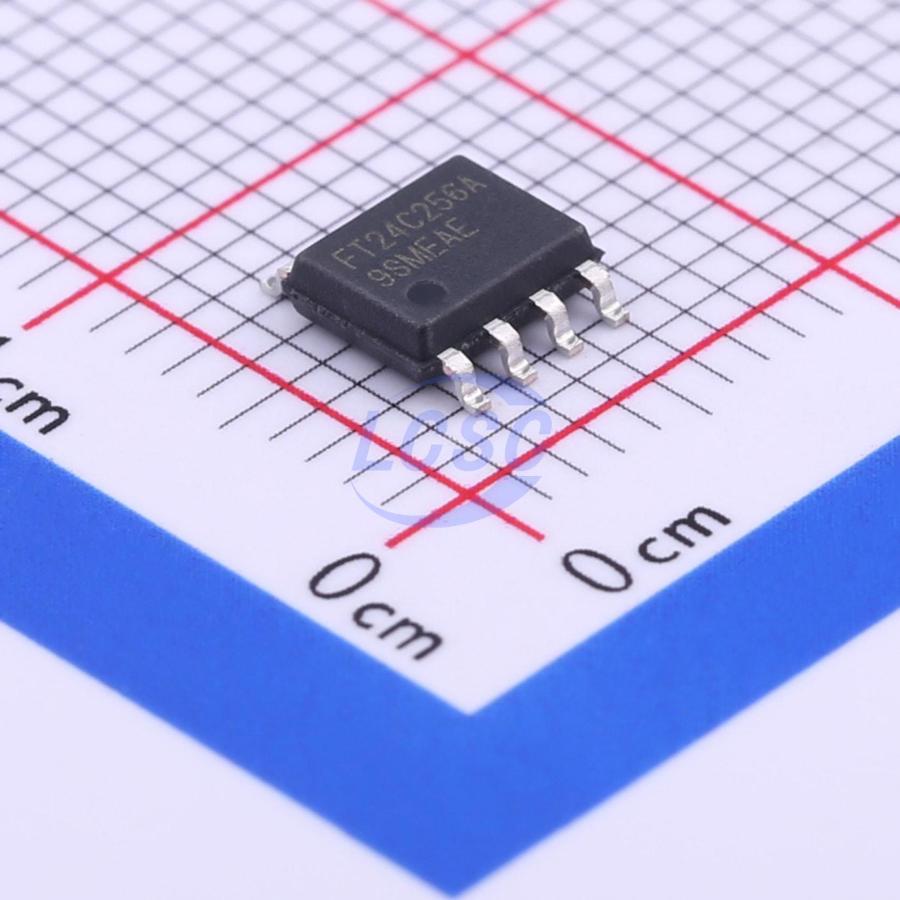

FT24C256A-ESR-T
256Kbit 1MHz I2C SOP-8 Memory RoHS
256K Bits Low-Power Serial EEPROM
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT24C256A-ESR-T
- Store part #
- C417371
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,870 in stock
#C417371
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.20 | ₹156.00 |
| 50+ | ₹24.59 | ₹1,229.50 |
| 150+ | ₹21.76 | ₹3,264.00 |
| 500+ | ₹18.23 | ₹9,115.00 |
| 2,500+ | ₹14.83 | ₹37,075.00 |
| 4,000+ | ₹13.89 | ₹55,560.00 |
5 × ₹31.20
₹156.00
excl. GST
₹184.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FT24C256A-ESR-T
₹156.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The FT24C256A series are 262,144 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 32,768 words of 8 bits (one byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP and 8-lead UDFN packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations:
- FT24C256A: VCC = 1.8V to 5.5V Maximum Standby current < 1μA.
- 64 bytes page write mode.
- Partial page write operation allowed.
- Internally organized: 32,768 x 8 (256K).
- Standard 2-wire bi-directional serial interface.
- Schmitt trigger, filtered inputs for noise protection.
- Self-timed write cycle (5ms maximum).
- 1 MHz (2.5V - 5V), 400 kHz (1.8V) Compatibility.
- Automatic erase before write operation.
- Write protect pin for hardware data protection.
- High reliability: typically 1,000,000 cycles endurance.
- 100 years data retention.
- Industrial temperature range (-40℃ to 85℃).
- Standard 8-lead DIP/SOP/MSOP/TSSOP/UDFN Pb-free packages.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FT24C256A-ESR-B#C417372FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | 455 | ₹32.10 · 455 in stock | View |
