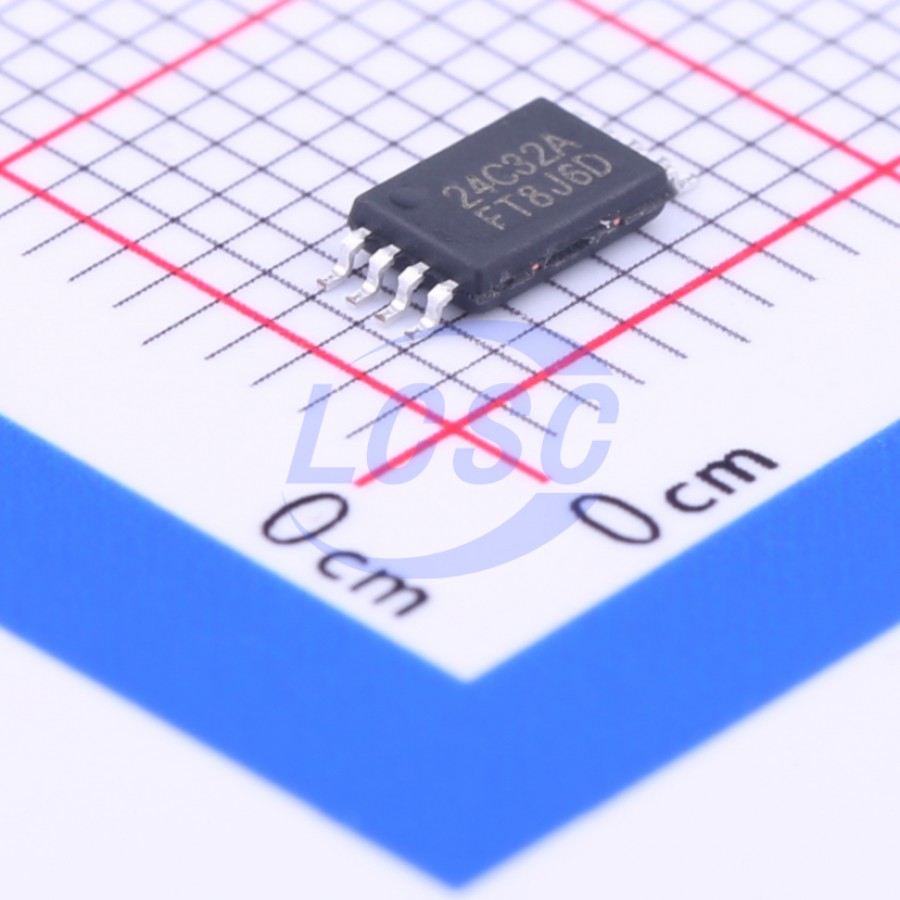

FMD(Fremont Micro Devices)

FT24C32A-ETR-T

32Kbit 1MHz I2C TSSOP-8 Memory

TSSOP-8RoHSActive

32K Serial EEPROM

Manufacturer: FMD(Fremont Micro Devices)
Manufacturer part #: FT24C32A-ETR-T
Store part #: C232881
Package / case: TSSOP-8
Category: Memory
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,660 in stock

#C232881

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.04	₹75.20
50+	₹11.80	₹590.00
150+	₹10.19	₹1,528.50
500+	₹8.97	₹4,485.00
2,500+	₹8.00	₹20,000.00
5,000+	₹7.51	₹37,550.00

Quantity (min 5, multiples of 5)

5 × ₹15.04

₹75.20

excl. GST

₹88.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

FT24C32A-ETR-T

₹75.20 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Noise suppression function
Memory Size: 32Kbit
Voltage - Supply: 1.8V~5.5V;3mA
Clock Frequency: 1MHz
Access Time: 900ns
Data Retention - TDR (Year): 100 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 1uA
Write Cycle Endurance: 1,000,000 cycles
Interface: I2C

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.167 g

Overview

The FT24C32A series are 32,768 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 4096 words of 8 bits (one byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN, 5-lead SOT23, and 5-lead TSOT23 packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.

Key features

Low voltage and low power operations:
FT24C32A: VCC = 1.8V to 5.5V
Maximum Standby current <1μA (typically 0.02μA and 0.06μA @ 1.8V and 5.5V respectively)
32 bytes page write mode
Partial page write operation allowed
Internally organized: 4,096x8 (32K)
Standard 2-wire bi-directional serial interface
Schmitt trigger, filtered inputs for noise protection
Self-timed Write Cycle (5ms maximum)
1000 kHz (2.5V - 5V), 400 kHz (1.8V) Compatibility
Automatic erase before write operation
Write protect pin for hardware data protection
High reliability: typically 1,000,000 cycles endurance
100 years data retention
Industrial temperature range (-40℃ to 85℃)
Standard 8-lead DIP/SOP/MSOP/TSSOP/DFN and 5-lead SOT23/TSOT23 Pb-free packages
