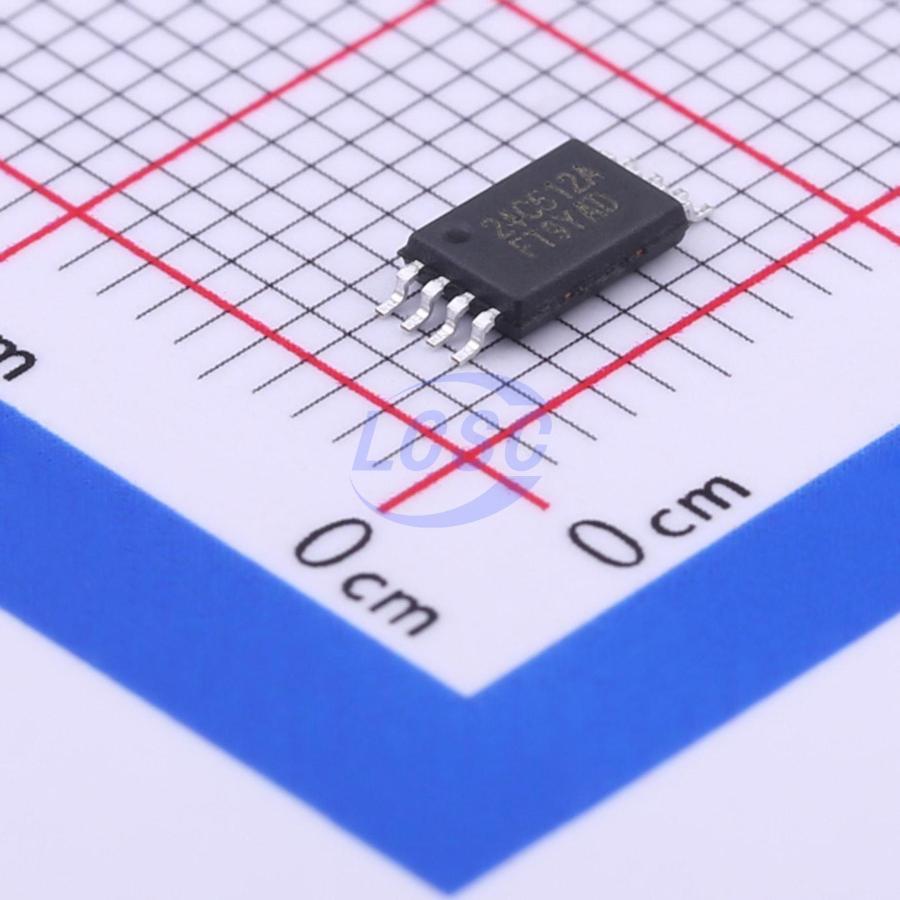

FT24C512A-ETR-T
512Kbit 1MHz I2C TSSOP-8 Memory RoHS
512K Bits Serial EEPROM
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT24C512A-ETR-T
- Store part #
- C417377
- Package / case
- TSSOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C417377
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.69 | ₹213.45 |
| 50+ | ₹33.62 | ₹1,681.00 |
| 150+ | ₹29.73 | ₹4,459.50 |
| 500+ | ₹24.87 | ₹12,435.00 |
| 2,500+ | ₹22.72 | ₹56,800.00 |
| 5,000+ | ₹21.42 | ₹1,07,100.00 |
5 × ₹42.69
₹213.45
excl. GST
₹251.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FT24C512A-ETR-T
₹213.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
The FT24C512A series are 524,288 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 65,536 words of 8 bits (one byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8 - lead DIP, 8 - lead SOP, 8 - lead MSOP, 8 - lead TSSOP and 8 - lead UDFN packages. A standard 2 - wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: FT24C512A: VCC = 1.8V to 5.5V
- Maximum Standby current < 1μA
- 128 bytes page write mode
- Partial page write operation allowed
- Internally organized: 65,536 x 8 (512K)
- Standard 2 - wire bi - directional serial interface
- Schmitt trigger, filtered inputs for noise protection
- Self - timed write cycle (5ms maximum)
- 1 MHz (2.5 - 5V), 400 kHz (1.8V) compatibility
- Automatic erase before write operation
- Write protect pin for hardware data protection
- High reliability: typically 1,000,000 cycles endurance
- 100 years data retention
- Industrial temperature range (-40℃ to 85℃)
- Standard 8 - pin DIP/SOP/MSOP/TSSOP/UDFN Pb - free packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FT24C512A-TTR-T#C5263785FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | 55 | ₹38.31 · 55 in stock | View |
