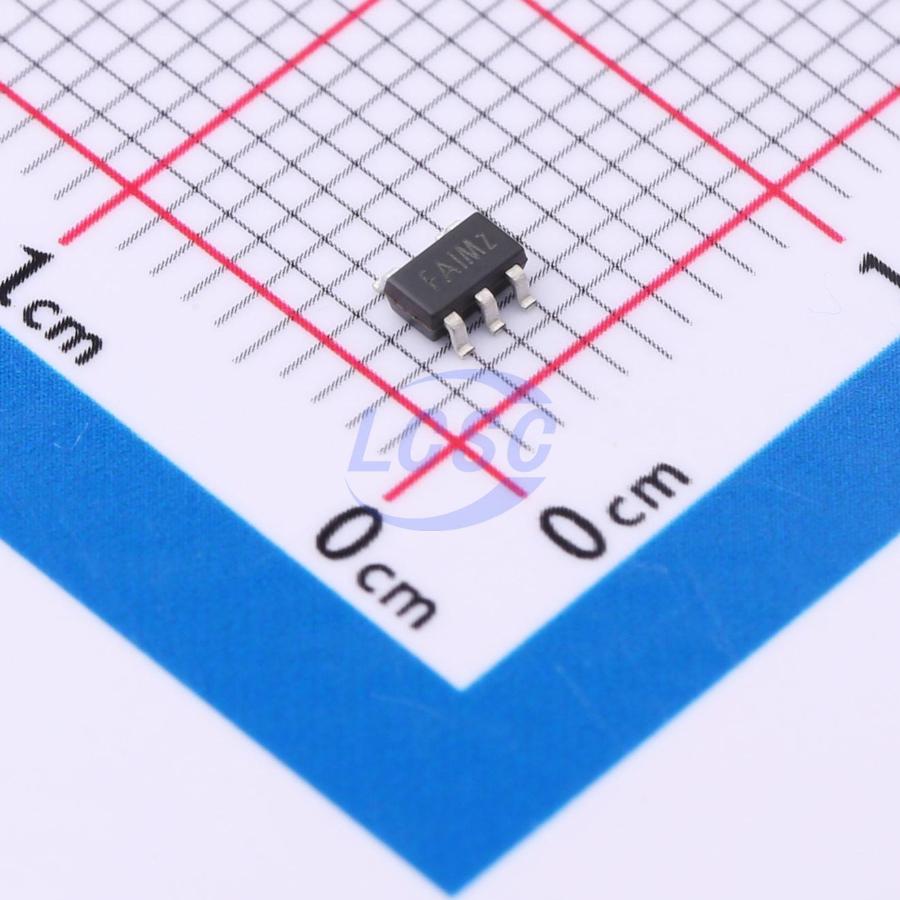

FT24C64A-ELR-T
64Kbit 1MHz I2C SOT-23-5 Memory
Two-Wire Serial EEPROM
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT24C64A-ELR-T
- Store part #
- C5263778
- Package / case
- SOT-23-5
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,750 in stock
#C5263778
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.40 | ₹87.00 |
| 50+ | ₹14.01 | ₹700.50 |
| 150+ | ₹12.32 | ₹1,848.00 |
| 500+ | ₹11.03 | ₹5,515.00 |
| 3,000+ | ₹9.59 | ₹28,770.00 |
| 6,000+ | ₹9.09 | ₹54,540.00 |
5 × ₹17.40
₹87.00
excl. GST
₹102.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FT24C64A-ELR-T
₹87.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 1.2us;0.5us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The FT24C64A series are 65,536 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 8192 words of 8 bits (one byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN, 5-lead SOT23, and 5-lead TSOT23 packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: FT24C64A: VCC = 1.8V to 5.5V
- 32 bytes page write mode
- Partial page write operation allowed
- Internally organized: 8,192x8 (64K)
- Standard 2-wire bi-directional serial interface
- Schmitt trigger, filtered inputs for noise protection
- Self-timed Write Cycle (5ms maximum)
- 1000 kHz (2.5 - 5V), 400 kHz (1.8V) Compatibility
- Automatic erase before write operation
- Write protect pin for hardware data protection
- High reliability: typically 1,000,000 cycles endurance
- 100 years data retention
- Industrial temperature range (-40℃ to 85℃)
- Standard 8-lead DIP/SOP/MSOP/TSSOP/DFN and 5-lead SOT23/TSOT23 Pb-free packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FT24C64A-TLR-T#C7466824FMD(Fremont Micro Devices) · SOT23-5 | FMD(Fremont Micro Devices) | SOT23-5 | 3,685 | ₹16.72 · 3,685 in stock | View |
