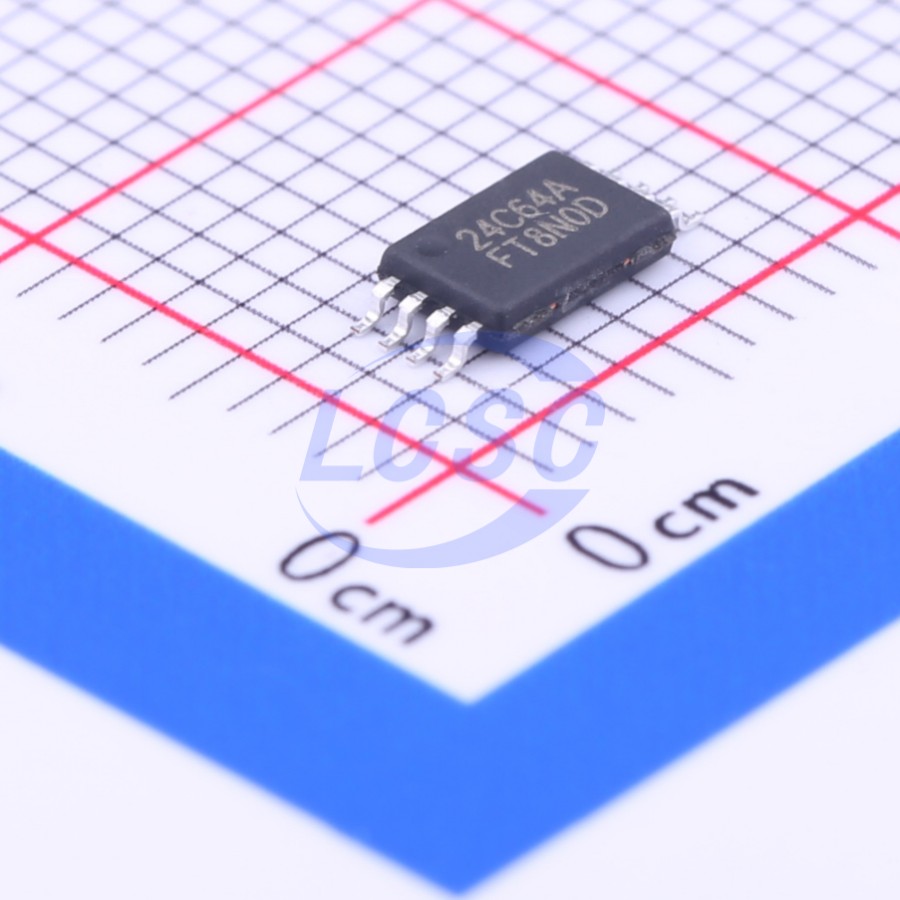

FT24C64A-ETR-T
64Kbit 1MHz I2C TSSOP-8 Memory
64K Bit I2C Serial EEPROM
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT24C64A-ETR-T
- Store part #
- C232888
- Package / case
- TSSOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C232888
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.20 | ₹91.00 |
| 50+ | ₹14.21 | ₹710.50 |
| 150+ | ₹12.21 | ₹1,831.50 |
| 500+ | ₹10.72 | ₹5,360.00 |
| 2,500+ | ₹9.51 | ₹23,775.00 |
| 5,000+ | ₹8.92 | ₹44,600.00 |
5 × ₹18.20
₹91.00
excl. GST
₹107.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FT24C64A-ETR-T
₹91.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 1.2us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.167 g
Overview
The FT24C64A series are 65,536 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 8192 words of 8 bits (one byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8 - lead DIP, 8 - lead SOP, 8 - lead MSOP, 8 - lead TSSOP, 8 - lead DFN, 5 - lead SOT23, and 5 - lead TSOT23 packages. A standard 2 - wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: FT24C64A: V_CC = 1.8V to 5.5V
- Maximum Standby current < 1μA (typically 0.02μA and 0.06μA @ 1.8V and 5.5V respectively)
- 32 bytes page write mode
- Partial page write operation allowed
- Internally organized: 3,192 x 8 (64K)
- Standard 2 - wire bi - directional serial interface
- Schmitt trigger, filtered inputs for noise protection
- Self - timed Write Cycle (5ms maximum)
- 1000 kHz (2.5 - 5V), 400 kHz (1.8V) Compatibility
- Automatic erase before write operation
- Write protect pin for hardware data protection
- High reliability: typically 1,000,000 cycles endurance
- 100 years data retention
- Industrial temperature range (-40℃ to 85℃)
- Standard 8 - lead DIP/SOP/MSOP/TSSOP/DFN and 5 - lead SOT23/TSOT23 Pb - free packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FT24C64A-ETR-B#C417366FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | On request | Price on request | Quote |
 | FT24C64A-TTR-T#C7466822FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | On request | Price on request | Quote |
