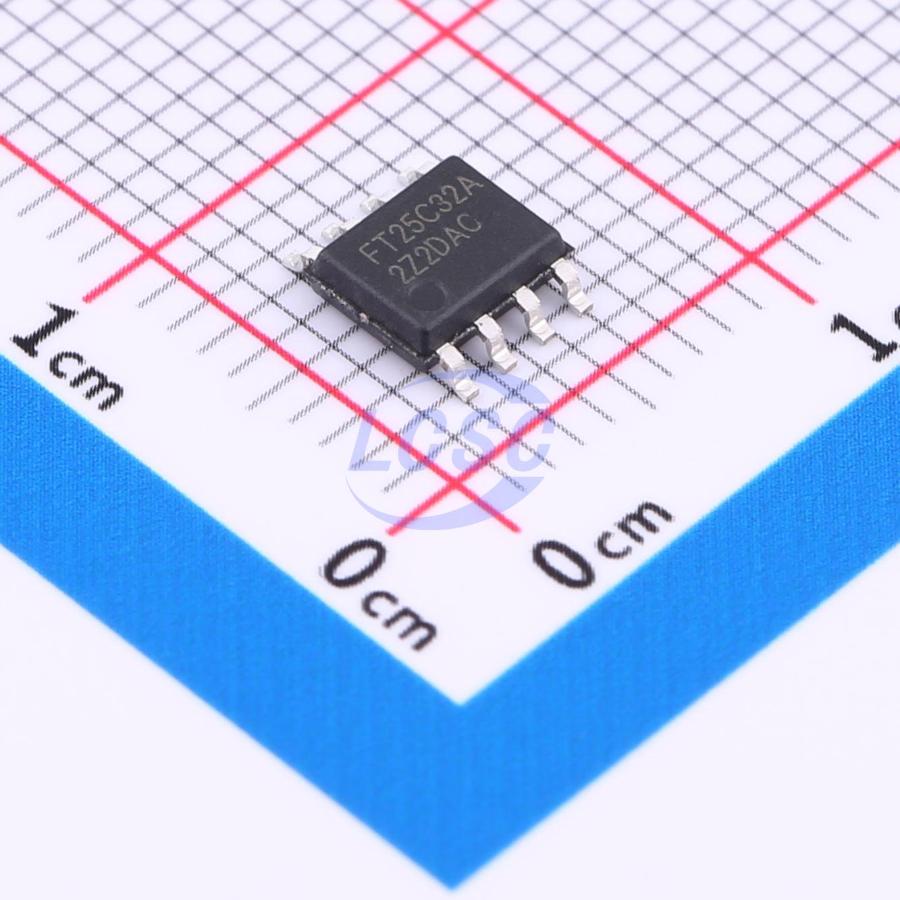

FT25C32A-USR-T
32Kbit 20MHz SPI SOP-8 Memory RoHS
32K-bit Serial EEPROM
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT25C32A-USR-T
- Store part #
- C7466813
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,355 in stock
#C7466813
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.25 | ₹146.25 |
| 50+ | ₹22.70 | ₹1,135.00 |
| 150+ | ₹19.90 | ₹2,985.00 |
| 500+ | ₹16.41 | ₹8,205.00 |
| 2,500+ | ₹14.84 | ₹37,100.00 |
| 5,000+ | ₹13.90 | ₹69,500.00 |
5 × ₹29.25
₹146.25
excl. GST
₹172.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FT25C32A-USR-T
₹146.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in write enable latch (WEL);Page write protection function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;10mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.136 g
Overview
The FT25C32A is 32768 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 4096 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP and 8-lead TSSOP packages. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The HOLD pin may be used to suspend any serial communication without resetting the serial sequence. While the device is paused, transitions on its inputs will be ignored. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications. All these packaging types come in conventional or Pb-free certified.
Key features
- Serial Peripheral Interface (SPI) Compatible Supports SPI Modes 0 (0,0) and 3 (1,1) Data Sheet Describes Mode 0 Operation
- Low voltage and low power operations FT25C32A VCC = 1.8V to 5.5V 20MHz clock rate (5V)
- Partial page write operation allowed (32 bytes page write mode)
- Self-timed programming cycle (5 ms max) Block Write Protection (Protect 1/4, 1/2, or Entire Array)
- Write protect pin for hardware data protection
- High reliability: typically 1,000,000 cycles endurance
- 100 years data retention
- Industrial temperature range -40℃ to 85℃ Standard 8-pin DIP/SOP/TSSOP Pb-free packages
