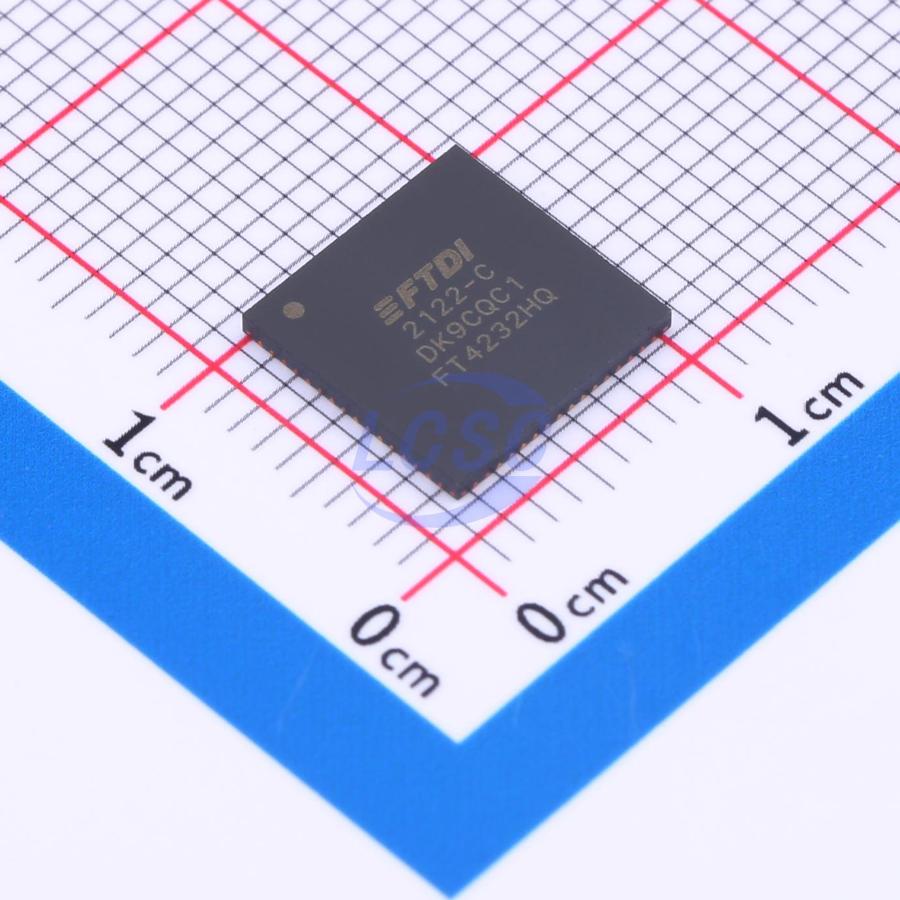

FT4232HQ-REEL

The FT4232H is a USB 2.0 High Speed (480Mb/s) to UART/MPSSE ICs. The device features 4 UARTs. Two of these have an option to independently configure an MPSSE engine. This allows the FT4232H to operate as two UART/Bit-Bang ports plus two MPSSE engines used to emulate JTAG, SPI, I²C, Bit-bang or other synchronous serial modes.

Applications

• Single chip USB to four channels UART (RS232, RS422 or RS485) or Bit-Bang interfaces.
• Single chip USB to 2 JTAG channels plus 2 UARTS.
• Single chip USB to 1 JTAG channel plus 3 UARTS.
• Single chip USB to 1 SPI channel plus 3 UARTS.
• Single chip USB to 2 SPI channels plus 2 UARTS.
• Single chip USB to 2 Bit-Bang channels plus 2 UARTS.
• Single chip USB to 1 SPI channel, plus 1 JTAG channel plus 2 UARTS.
• Single chip USB to 2 I2C channels plus 2 UARTS.
• Numerous combinations of 4 channels.
• Upgrading Legacy Peripheral Designs to USB
• Field Upgradable USB Products
• Cellular and cordless phone USB data transfer cables and interfaces.
• Interfacing MCU / PLD / FPGA based designs to USB
• PDA to USB data transfer
• USB Smart Card Readers
• USB Instrumentation
• USB Industrial Control
• USB MP3 Player Interface
• USB FLASH Card Reader / Writers
• Set Top Box PC - USB interface
• USB Digital Camera Interface
• USB Bar Code Readers

Key features

• Single chip USB to quad serial ports with a variety of configurations.
• Entire USB protocol handled on the chip. No USB specific firmware programming required.
• USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
• Two Multi-Protocol Synchronous Serial Engine (MPSSE) on channel A and channel B, to simplify synchronous serial protocol (USB to JTAG, I²C, SPI or bit-bang) design.
• Independent Baud rate generators.
• RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
• FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
• Optional traffic TX/RX indicators can be added with LEDs and an external 74HC595 shift register.
• Adjustable receive buffer timeout.
• Support for USB suspend and resume conditions via PWREN#, SUSPEND# and RI# pins.
• Highly integrated design includes +1.8V LDO regulator for VCORE, integrated POR function and on chip clock multiplier PLL (12MHz – 480MHz).
• FTDI FT232B style, asynchronous serial UART interface option with full hardware handshaking and modem interface signals.
• Fully assisted hardware or X-On / X-Off software handshaking.
• UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.
• Auto-transmit enable control for RS485 serial applications using TXDEN pin.
• Operational configuration mode and USB Description strings configurable in external EEPROM over the USB interface.
• Low operating and USB suspend current.
• Configurable I/O drive strength (4, 8, 12 or 16mA) and slew rate.
• Supports bus powered, self-powered and highpower bus powered USB configurations.
• UHCI/OHCI/EHCI host controller compatible.
• USB Bulk data transfer mode (512 byte packets in High Speed mode).
• Dedicated Windows DLLs available for USB to JTAG, USB to SPI, and USB to I²C applications.
• +1.8V (chip core) and +3.3V I/O interfacing (+5V Tolerant).
• Extended -40°C to 85°C industrial operating temperature range.
• Compact 64-LD Lead Free LQFP or QFN package Available in compact Pb-free 56 Pin VQFN packages (RoHS compliant)
• +3.3V single supply operating voltage range.
• ESD protection for FT4232H IO’s: Human Body Model (HBM) ±2KV, Machine Mode (MM) ±200V, Charge Device Model (CDM) ±500V.
• Latch-up free.
