FMD(Fremont Micro Devices)Datasheet (PDF)

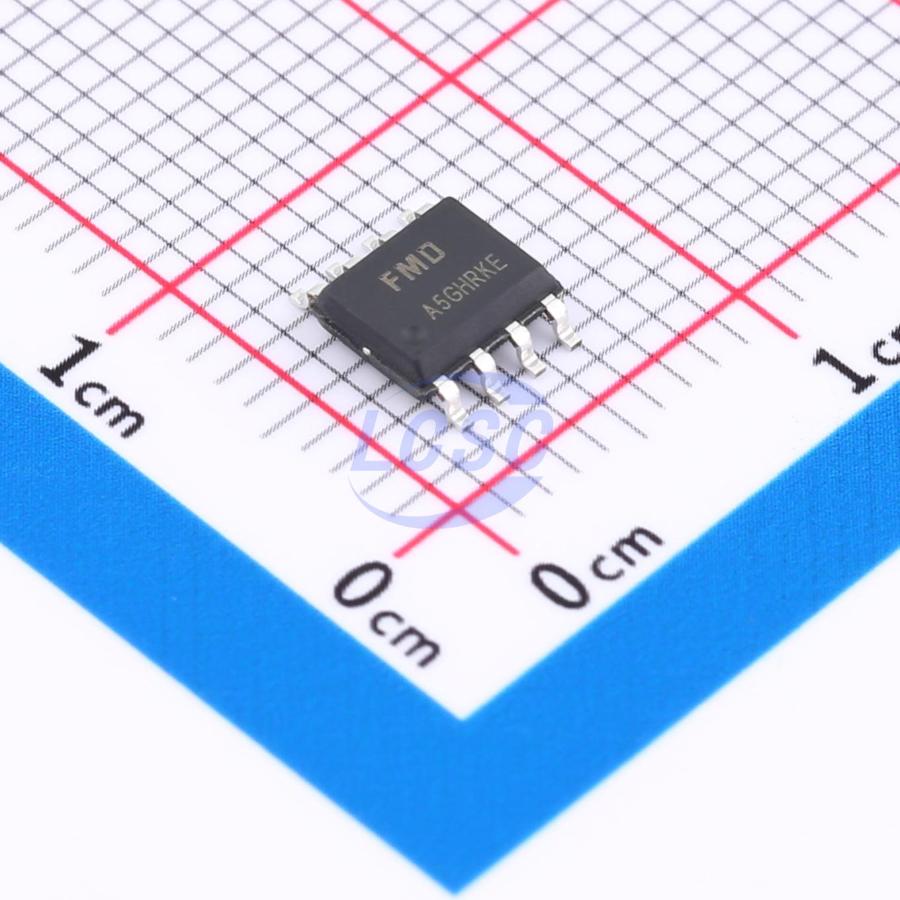

FT60F011A-RB
RISC 8 Bit 16MHz SOP-8 Microcontrollers
SOP-8RoHSActive
8-bit instruction set microcontroller
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT60F011A-RB
- Store part #
- C708769
- Package / case
- SOP-8
- Category
- Microcontrollers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,930 in stock
#C708769
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.07 | ₹80.35 |
| 50+ | ₹12.53 | ₹626.50 |
| 200+ | ₹10.76 | ₹2,152.00 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 2,000+ | ₹8.36 | ₹16,720.00 |
| 5,000+ | ₹7.83 | ₹39,150.00 |
5 × ₹16.07
₹80.35
excl. GST
₹94.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
FT60F011A-RB
₹80.35 for 5 + GST
Specifications
- Number of I/O
- 6
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 2V~5.5V
- Program Memory Type
- FLASH
- EEPROM
- 256Byte
- Program Storage Size
- 1.75KB
- CPU Core
- RISC
- Core Size
- 8 Bit
- CPU Maximum Speed
- 16MHz
- Oscillator Type
- Built-in
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.144 g
Overview
Key features
- Fully proprietary 8-bit instruction set
- 8-level 10-bit hardware stack
- 1Kx14b program FLASH (16 bytes/page)
- 256×8b data EEPROM (16 bytes/page)
- Data EEPROM in-application programmable
- 64x8b SRAM
- 1 x Timer0 with 8-bit prescaler
- 1 x Timer2 with 8-bit prescaler
- WDT with 7-bit prescaler, overflow period approx. 16 - 2048ms
- Power-up delay counter PWRT
- Low-power SLEEP mode
- 4 wake-up sources: INT, port change interrupt, WDT, data EEPROM write complete
- Built-in high-speed RC oscillator, up to 16MHz
- Built-in low-speed RC oscillator, 32K mode
- Up to 6 general-purpose I/Os
- Port change interrupt, PA0 - PA5
- ISP supported
- In-circuit debugging supported
- Program memory protection
- Operating voltage range: 2.0V - 5.5V
- Maximum clock frequency: 16MHz
- FSYS = 8MHz: 2.0V - 5.5V
- FSYS = 16MHz: 2.7V - 5.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FT60F211-RB#C708779FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | 3,180 | ₹14.78 · 3,180 in stock | View |
 | FT60F121#C708784FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | 735 | ₹29.16 · 735 in stock | View |
 | FT61F131B-RB#C708787FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | 535 | ₹46.32 · 535 in stock | View |
 | FT61FC21A-RB#C2984836FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | On request | Price on request | Quote |
 | FT61F141-RB#C708793FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | On request | Price on request | Quote |
