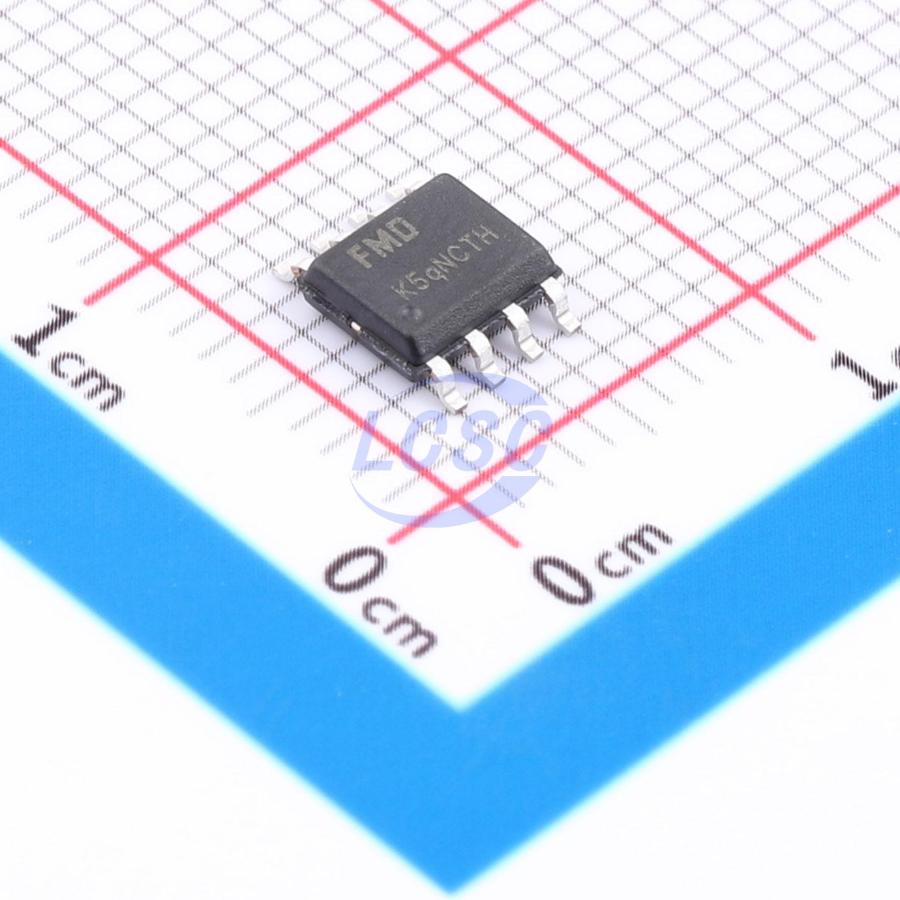

FMD(Fremont Micro Devices)

FT60F211-RB

RISC 8 Bit 16MHz SOP-8 Microcontrollers RoHS

SOP-8ROHS CompliantActive

High-performance RISC CPU

Manufacturer: FMD(Fremont Micro Devices)
Manufacturer part #: FT60F211-RB
Store part #: C708779
Package / case: SOP-8
Category: Microcontrollers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,180 in stock

#C708779

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.78	₹73.90
50+	₹11.66	₹583.00
200+	₹10.08	₹2,016.00
500+	₹8.92	₹4,460.00
2,000+	₹7.98	₹15,960.00
5,000+	₹7.50	₹37,500.00

Quantity (min 5, multiples of 5)

5 × ₹14.78

₹73.90

excl. GST

₹87.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 100 per tube

FT60F211-RB

₹73.90 for 5 + GST

Specifications

Number of I/O: 6
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.9V~5.5V
Program Memory Type: FLASH
EEPROM: 128Byte
Program Storage Size: 1.75KB
CPU Core: RISC
Core Size: 8 Bit
CPU Maximum Speed: 16MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.143 g

Overview

Key features

Only 35 instructions to learn
All single-cycle instructions (except branch/jump)
Instruction cycle: 4T, 250ns @ 4T, 16MHz, VDD≥2.7V
8-level hardware stack architecture
Program ROM: 1k × 14bits
Data RAM: 64 × 8bits
Data EEPROM: 128 × 8bits
Two internal clocks
16MHz high-speed high-precision HIRC
32kHz low-speed low-power LIRC
External clock input, max. 20MHz
Selectable system clock source
16-bit watchdog with 7-bit prescaler
Power-on delay counter
Low-power SLEEP mode
Wide operating voltage range: 1.9V - 5.5V
Industrial temperature range: -40 - 85°C
Maximum clock frequency: 16MHz
F_SYS = 8MHz: 1.9V - 5.5V
F_SYS = 16MHz: 2.7V - 5.5V
LVR: 2.0, 2.2, 2.5, 2.8, 3.1, 3.6, 4.1V
LVD: 1.2, 1.8, 2.0, 2.4, 2.7, 3.0, 3.3, 3.6, 4.0V
External voltage detection, usable as comparator
Detection output as PWM brake source
ISP and on-chip debug OCD support
1 hardware breakpoint
Soft reset, single-step, halt, step-over, etc.
Program ROM protection
Package options: SOT23-6, SOP8, DFN6, DFN8
Up to 6 GPIO: PORTA
Port change interrupt, PA0 – PA5
6 pins with individual pull-up
PA4/PA5 direct LED drive, eliminating current-limiting resistors
External reset pin: PA5
Timer0 - 8bit: 8-bit prescaler, selectable clock source
Timer2 - 16bit: 4-bit prescaler and 4-bit postscaler
Internal slow clock measurement
4-channel PWM with independent polarity and independent duty cycle
Complementary PWM output with dead-band control
Dual-buffered duty cycle and period registers
Clock source: HIRC, instruction clock, system clock, LIRC
Operable in sleep mode
Brake input
Buzzer mode
One-pulse mode
