FMD(Fremont Micro Devices)Datasheet (PDF)

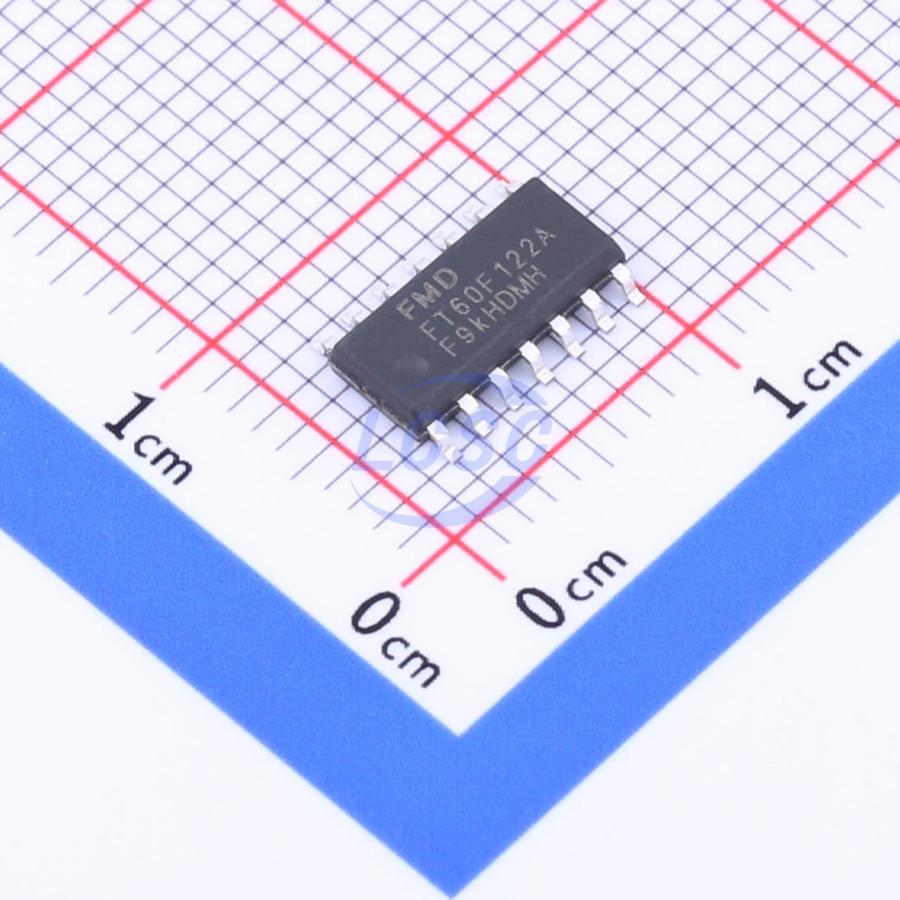

FT60F122A-RB
RISC 8 Bit 16MHz SOP-14 Microcontrollers
SOP-14RoHSActive
High-performance RISC CPU
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT60F122A-RB
- Store part #
- C962339
- Package / case
- SOP-14
- Category
- Microcontrollers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,445 in stock
#C962339
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.14 | ₹180.70 |
| 50+ | ₹27.80 | ₹1,390.00 |
| 150+ | ₹24.22 | ₹3,633.00 |
| 500+ | ₹19.75 | ₹9,875.00 |
| 2,500+ | ₹17.77 | ₹44,425.00 |
| 5,000+ | ₹16.58 | ₹82,900.00 |
5 × ₹36.14
₹180.70
excl. GST
₹213.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
FT60F122A-RB
₹180.70 for 5 + GST
Specifications
- Number of I/O
- 12
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.9V~5.5V
- Program Memory Type
- FLASH
- EEPROM
- 256Byte
- Program Storage Size
- 3.5KB
- CPU Core
- RISC
- Core Size
- 8 Bit
- CPU Maximum Speed
- 16MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.338 g
Overview
Key features
- Only 35 instructions to learn
- All single-cycle instructions (except branch/jump)
- Selectable instruction cycles: 2T/4T, F_SYS = 16MHz, VDD ≥ 2.7V
- 8-level hardware stack architecture
- Program ROM: 2k x 14bits (FT60F12X)
- Data RAM: 128 x 8bits (FT60F12X)
- Data EEPROM: 256 x 8bits
- Two internal clocks: 16MHz high-speed high-precision HIRC, 32kHz low-speed low-power LIRC
- Crystal oscillator and external clock input, max. 20MHz
- Crystal clock missing detection
- Dual-speed clock startup in crystal clock configuration
- Selectable system clock source
- 16-bit watchdog with 7-bit prescaler
- Optional external crystal clock for precise timing
- Power-on delay counter
- Low-power SLEEP mode
- Wide operating voltage range: 1.9V - 5.5V
- Industrial temperature range: -40 - 85°C
- Maximum clock frequency: 16MHz
- VF_SYS = 8MHz: 1.9V - 5.5V
- VF_SYS = 16MHz: 2.7V - 5.5V
- LVR: 2.0, 2.2, 2.5, 2.8, 3.1, 3.6, 4.1V
- LVD: 2.0, 2.4, 2.8, 3.0, 3.6, 4.0V
- External voltage detection when used as comparator
- Detection output usable as PWM brake source
- ISP and OCD support
- 3 hardware breakpoints
- Software reset, single-step, pause, step-over, etc.
- Program ROM protection
- Packages: SOP8, SOP14, SOP16, MSOP10, SOT23-6
- Up to 14 general-purpose IOs: PORTA and PORTC
- Port change interrupt, PA0 – PA7
- 14 pins with independent pull-up and pull-down, simultaneously enabled for 1/2VDD bias
- Programmable sink current (56/79mA) and source current (8/31mA, 4/31mA, 4/8/31mA)
- Direct LED segment display driving, eliminates current-limiting resistors
- External reset pin: PA5
- Timer0 - 8-bit: 8-bit prescaler, selectable clock source
- Timer2 - 16-bit: 4-bit prescaler and 4-bit postscaler
- Internal slow clock measurement
- 3-channel PWM with independent polarity and independent duty cycle
- Complementary PWM output with dead-band control, mappable to up to 6 IOs
- Duty cycle and period register double-buffered
- Clock sources: HIRC, crystal clock, 2x HIRC, 2x crystal clock, instruction clock, system clock, LIRC
- Operational in sleep mode
- Brake input
- Buzzer mode
- Single-pulse mode
