FMD(Fremont Micro Devices)Datasheet (PDF)

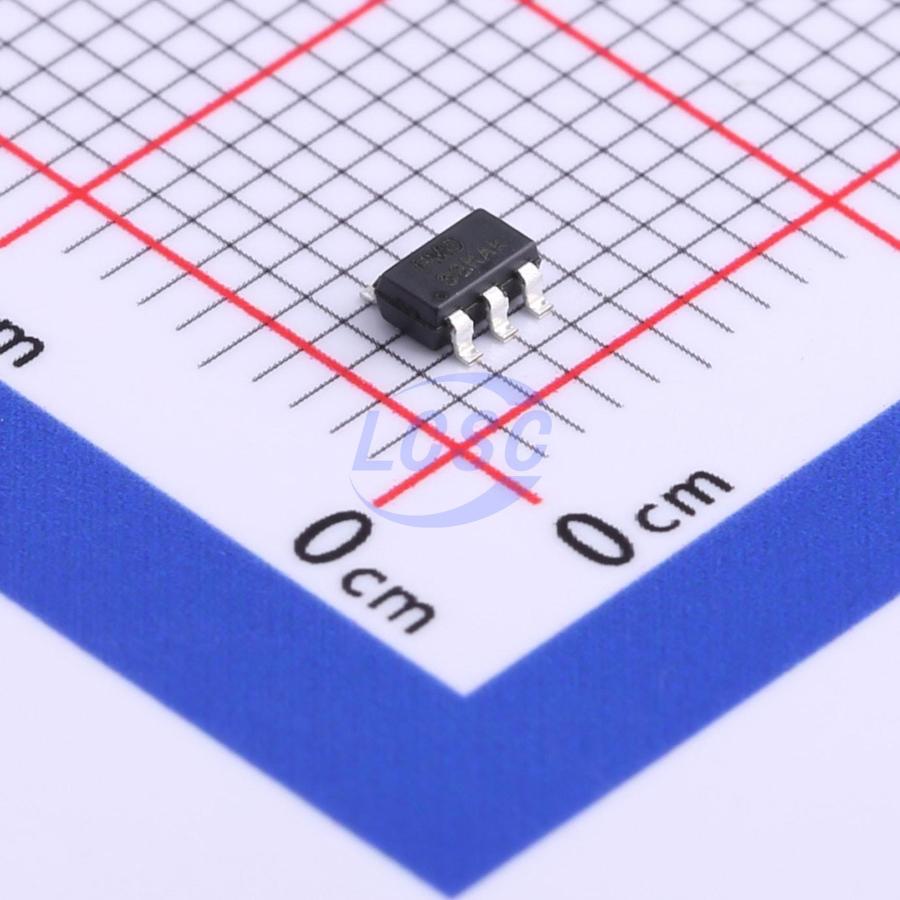

FT60F210-URT
RISC 8 Bit 16MHz SOT-23-6 Microcontrollers
SOT-23-6RoHSActive
High-performance RISC CPU
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT60F210-URT
- Store part #
- C708778
- Package / case
- SOT-23-6
- Category
- Microcontrollers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,835 in stock
#C708778
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.97 | ₹139.85 |
| 50+ | ₹22.01 | ₹1,100.50 |
| 150+ | ₹19.46 | ₹2,919.00 |
| 500+ | ₹16.27 | ₹8,135.00 |
| 3,000+ | ₹14.86 | ₹44,580.00 |
| 6,000+ | ₹14.00 | ₹84,000.00 |
5 × ₹27.97
₹139.85
excl. GST
₹165.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FT60F210-URT
₹139.85 for 5 + GST
Specifications
- Number of I/O
- 4
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.9V~5.5V
- Program Memory Type
- FLASH
- EEPROM
- 128Byte
- Program Storage Size
- 1.75KB
- CPU Core
- RISC
- Core Size
- 8 Bit
- CPU Maximum Speed
- 16MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
Key features
- Only 35 instructions to learn
- All single-cycle instructions (except branch/jump)
- Instruction cycle: 4T, 250ns @ 4T, 16MHz, VDD≥2.7V
- 8-level hardware stack architecture
- Program ROM: 1k × 14bits
- Data RAM: 64 × 8bits
- Data EEPROM: 128 × 8bits
- Two internal clocks
- 16MHz high-speed high-precision HIRC
- 32kHz low-speed low-power LIRC
- External clock input, max. 20MHz
- Selectable system clock source
- 16-bit watchdog with 7-bit prescaler
- Power-on delay counter
- Low-power SLEEP mode
- Wide operating voltage range: 1.9V - 5.5V
- Industrial temperature range: -40 - 85°C
- Maximum clock frequency: 16MHz
- F_SYS = 8MHz: 1.9V - 5.5V
- F_SYS = 16MHz: 2.7V - 5.5V
- LVR: 2.0, 2.2, 2.5, 2.8, 3.1, 3.6, 4.1V
- LVD: 1.2, 1.8, 2.0, 2.4, 2.7, 3.0, 3.3, 3.6, 4.0V
- External voltage detection, usable as comparator
- Detection output as PWM brake source
- ISP and on-chip debug OCD support
- 1 hardware breakpoint
- Soft reset, single-step, halt, step-over, etc.
- Program ROM protection
- Package options: SOT23-6, SOP8, DFN6, DFN8
- Up to 6 GPIO: PORTA
- Port change interrupt, PA0 – PA5
- 6 pins with individual pull-up
- PA4/PA5 direct LED drive, eliminating current-limiting resistors
- External reset pin: PA5
- Timer0 - 8bit: 8-bit prescaler, selectable clock source
- Timer2 - 16bit: 4-bit prescaler and 4-bit postscaler
- Internal slow clock measurement
- 4-channel PWM with independent polarity and independent duty cycle
- Complementary PWM output with dead-band control
- Dual-buffered duty cycle and period registers
- Clock source: HIRC, instruction clock, system clock, LIRC
- Operable in sleep mode
- Brake input
- Buzzer mode
- One-pulse mode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FT61F020-URT#C708773FMD(Fremont Micro Devices) · SOT-23-6 | FMD(Fremont Micro Devices) | SOT-23-6 | 10,755 | ₹44.86 · 10,755 in stock | View |
