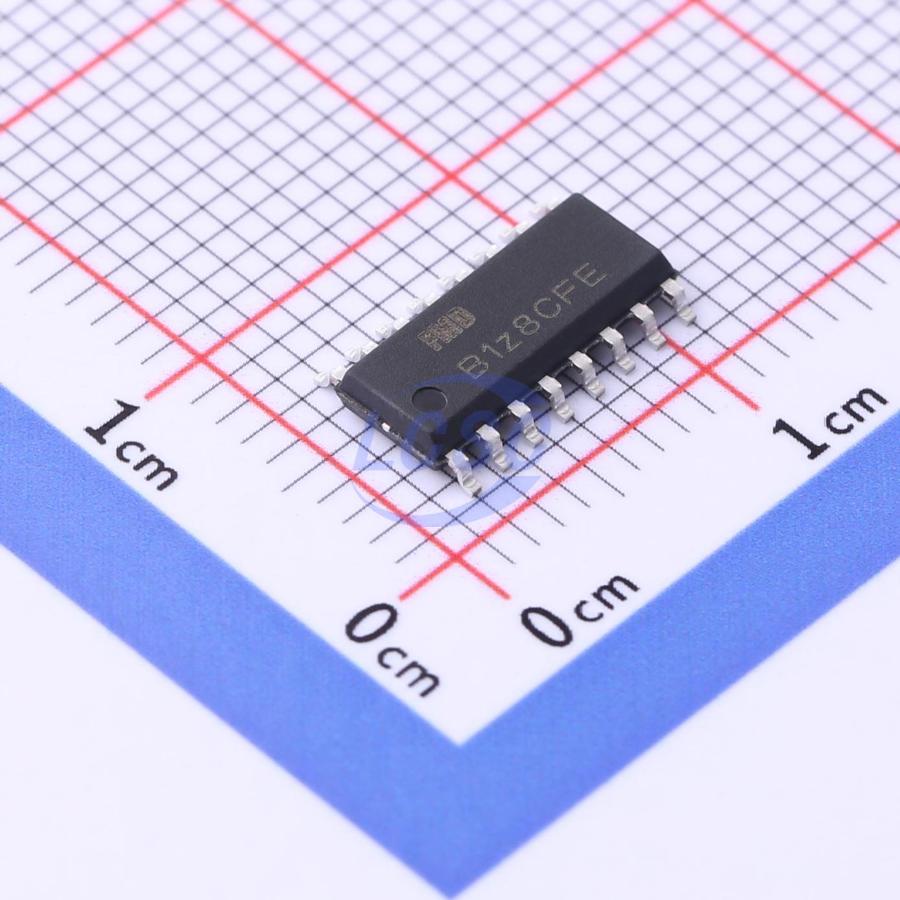

FMD(Fremont Micro Devices)

FT61FC23-RB

RISC 8 Bit 16MHz SOP-16 Microcontrollers

SOP-16RoHSActive

8-bit EEPROM-based RISC MCU

Manufacturer: FMD(Fremont Micro Devices)
Manufacturer part #: FT61FC23-RB
Store part #: C2984838
Package / case: SOP-16
Category: Microcontrollers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,155 in stock

#C2984838

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
5+	₹24.04	₹120.20
50+	₹20.90	₹1,045.00
150+	₹19.57	₹2,935.50
500+	₹17.90	₹8,950.00
2,500+	₹17.15	₹42,875.00
5,000+	₹16.70	₹83,500.00

Quantity (min 5, multiples of 5)

5 × ₹24.04

₹120.20

excl. GST

₹141.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

FT61FC23-RB

₹120.20 for 5 + GST

Specifications

ADC (Bit): 10bit
Number of I/O: 14
Operating Temperature: -40℃~+85℃
Program Memory Type: EEPROM
Voltage - Supply: 2V~5.5V
Program Storage Size: 3.5KB
EEPROM: 256Byte
CPU Core: RISC
Core Size: 8 Bit
CPU Maximum Speed: 16MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.304 g

Overview

Key features

8-bit EEPROM-based RISC MCU
Program: 2k x 14; RAM: 128 x 8; Data: 256 x 8
6 / 8 / 10 / 14 / 16 pins
ADC: True 10-bit accuracy
7 timers, 4 independent PWM channels - 1 enhanced capture/compare/PWM (with dead-band control)
2 analog comparators, 2 voltage regulator outputs
Low Standby, WDT and operating current
POR, LVR, LVD
High ESD, high EFT
Low VDD operating voltage
37 RISC instructions: 2T or 4T
16 MHz / 2T (VDD ≥ 2.5), up to 16 pins
PROGRAM: 2k x 14 bit (read/write protection)
DATA: 256 x 8 bit
RAM: 128 x 8 bit, 8-level hardware stack
1,000,000 erase/write cycles (typical)
>20 years / 85°C data retention (typical)
ESD > 4 kV, EFT > 5.5 kV
True 10-bit accuracy (≤500 kHz ADC clock)
7 + 1 channels
Internal: 2.0, 3.0, VDD
External: VREF pin
Special event trigger and interrupt
Enhanced capture/compare/PWM
PWM modes: single PWM, half-bridge, full-bridge
3 PWM pairs (6 I/Os): complementary output + dead-band
Single-pulse mode
Same period and duty cycle
Selectable polarity
Supports operation in SLEEP
Independent: period, duty cycle, polarity
Buzzer mode
WDT (16-bit): 7-bit postscaler
Timer0 (8-bit): 8-bit prescaler
Timer1 (16-bit): 3-bit prescaler with gate control
Timer2 (8-bit): 4-bit prescaler and postscaler
Timer3/4/5 (12-bit): 7-bit prescaler and 8-bit postscaler
Supports operation in SLEEP at 1 or 2x {instruction clock, HIRC}, LP, T0CK, T1CK
Pull-up/pull-down resistors
All I/O source current: 22mA (5V, 25°C)
All I/O sink current: 19mA (5V, 25°C)
8 I/Os: interrupt/wake-up
SLEEP
LVR: 2.0, 2.2, 2.5, 2.8, 3.1, 3.6, 4.1 (V)
LVD: 2.0, 2.4, 2.8, 3.0, 3.6, 4.0 (V)
HIRC high-speed internal oscillator
16 MHz < ±2% typical (2.5−5.5V, 25°C)
1, 2, 4, 8, 16, 32, 64 divider
LIRC low-power low-speed internal oscillator
32 kHz or 256 kHz
EC external clock (I/O input)
LP / XT crystal input
Dual-speed clock start-up (HIRC or LIRC)
Fail-safe clock monitor
On-chip debug (OCD), ISP
3 hardware breakpoints
Software reset, halt, single-step, run, etc.
