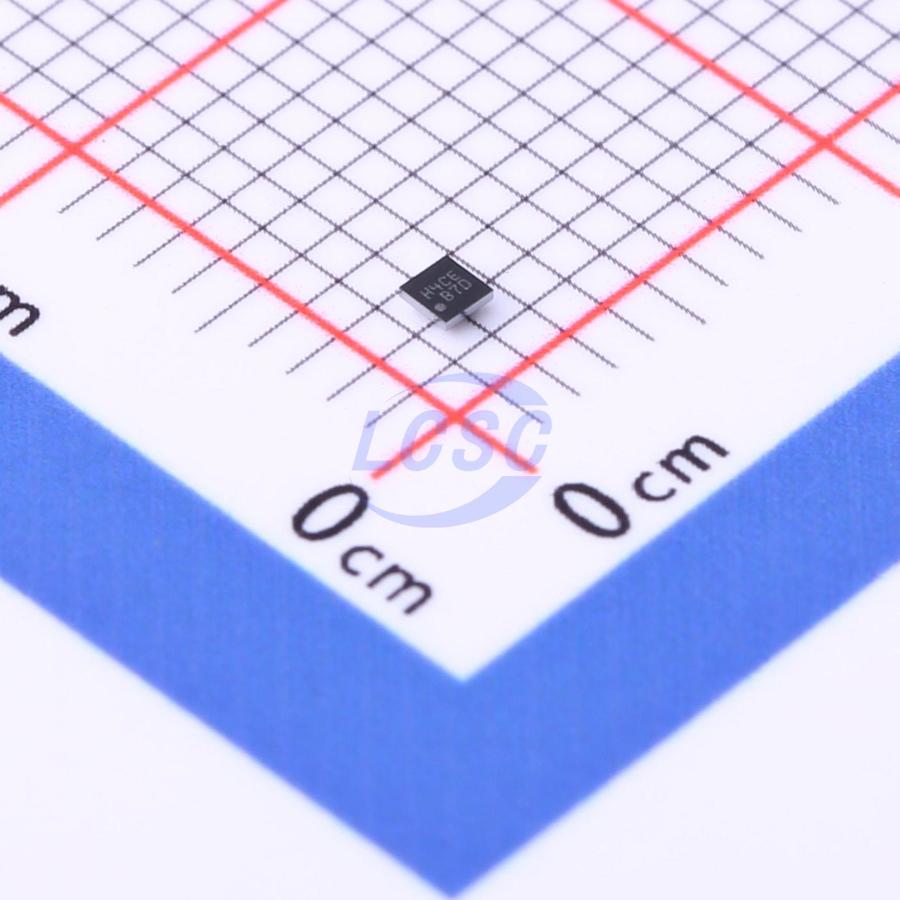

FUSB302BUCX

The FUSB302B targets system designers looking to implement a DRP/SRC/SNK USB Type-C connector with low amount of programmability. The FUSB302B enables the USB Type-C detection including attach, and orientation. The FUSB302B integrates the physical layer of the USB BMC power delivery protocol to allow up to 100 W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification.

Applications

• Smartphones
• Tablets
• Laptops
• Notebooks
• Power Adapters
• Cameras
• Dongles
• Automotive

Key features

• WQFN14 CASE 510BR
• Dual-role Functionality with Autonomous DRP Toggle
• Ability to Connect as Either a Host or a Device Based on What Has Been Attached
• Software Configurable Either as a Dedicated Host, Dedicated Device, or Dual Role
• Dedicated Devices can Operate both on a Type-C Receptacle or a Type-C Plug with a Fixed CC and VCONN Channel
• Full Type-C 1.2 Support. Integrates the Following Functionality of the CC Pin:
• Attach/Detach Detection as Host
• Current Capability Indication as Host
• Current Capability Detection as Device
• Audio Adapter Accessory Mode
• Debug Accessory Mode
• Active Cable Detection
• Integrates CCx to VCONN Switch with Over-current Limiting for Powering USB3.1 Full Featured Cables
• USB Power Delivery (PD) 2.0, Version 1.2 Support:
• Automatic GoodCRC Packet Response
• Automatic Retries of Sending a Packet if a GoodCRC is Not Received
• Automatic Soft Reset Packet Sent with Retries if Needed
• Automatic Hard Reset Ordered Set Sent
• Dead Battery Support (SNK Mode Support when No Power Applied
• Low Power Operation: ICC = 25 μA (Typical)
• AEC−Q100 Automotive Qualified Temperature Grade 2: ( -40°C to +105°C)
• Packaged in:
• 9-ball WLCSP (1.215 mm×1.260 mm)
• 14-lead MLP (2.5 mm×2.5 mm, 0.5 mm Pitch)
