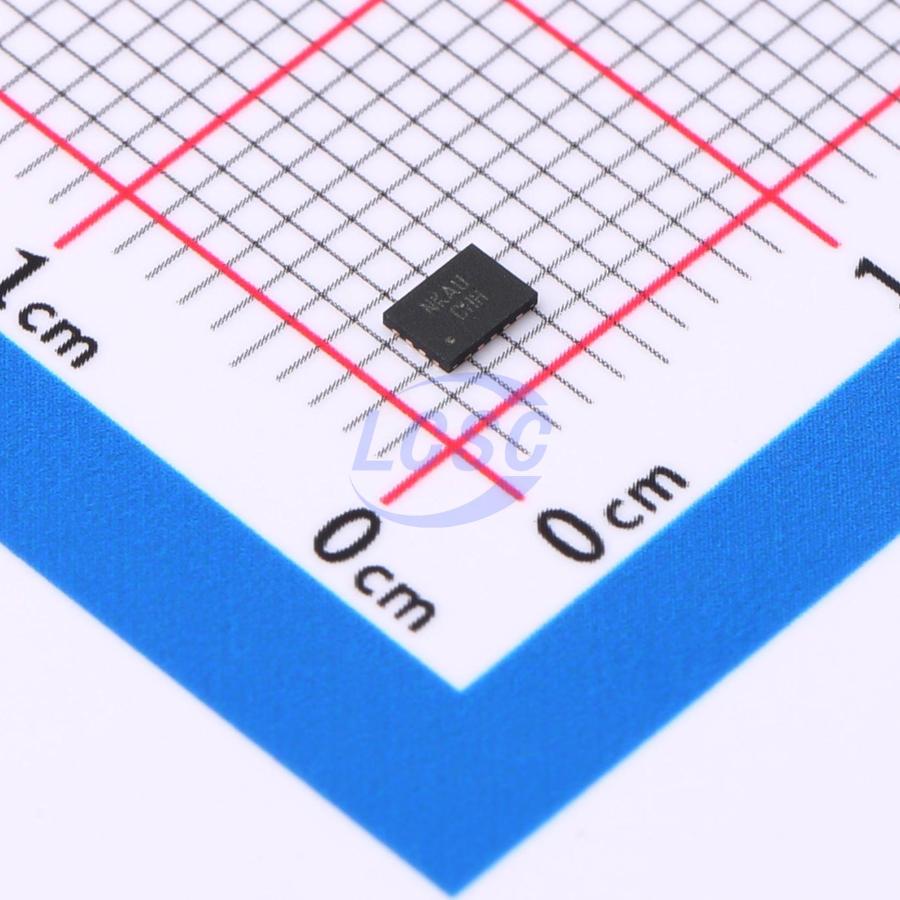

FUSB340TMX onsemi
onsemi

FUSB340TMX

2 10Gbps X2-QFN-18 Controllers RoHS

X2-QFN-18ROHS3 CompliantActive

USB 3.1 SuperSpeed 10 Gbps Switch

Manufacturer
onsemi
Manufacturer part #
FUSB340TMX
Store part #
C478457
Package / case
X2-QFN-18
Category
Controllers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,525 in stock

#C478457

Stock & price checked 6 days ago

QuantityUnit pricePack price
1+₹116.69₹116.69
10+₹93.66₹936.60
30+₹82.15₹2,464.50
100+₹70.62₹7,062.00
500+₹63.68₹31,840.00
1,000+₹60.20₹60,200.00

1 × ₹116.69

₹116.69

excl. GST

₹137.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 5,000 per reel

FUSB340TMX

₹116.69 for 1 + GST

Specifications

Features
Shutdown mode;Low-power mode
Voltage - Supply
1.5V~5V
Operating Temperature
-40℃~+85℃
Quiescent Supply Current
1uA
USB Protocol
USB 3.1;DP 1.3
Current - Supply
30uA
Number of Channels
2
Data Rate
10Gbps

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
5,000 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.031 g

Overview

The FUSB340 is a 2:1 data switch for USB SuperSpeed Gen1 and Gen2, 5 Gbps and 10 Gbps data. It is targeted at the mobile device market and for use in Type−C applications where a reversible cable requires a switch. The FUSB340 data switch offers superior performance various high speed data transmission protocols: • USB 3.1 SuperSpeed (Gen 2), 10 Gbps • PCI Express, Gen 3 • SATA • Fibre Channel • Display Port 1.3

Applications

  • Smartphones
  • Tablets
  • Notebooks

Key features

  • 10 GHz Typical Bandwidth
  • USB 3.1 SuperSpeed 5 Gbps and 10 Gbps Switch
  • −1.0 dB Typical Insertion Loss at 2.5 GHz
  • Low Active Power of 12 μA Typical
  • Low Shutdown Power of <1 μA Max.
  • 2 kV HBM ESD Protection
  • Small Packaging, 18 Lead TMLP
  • Wide VDD Operating Range, 1.5 V - 5.0 V
  • This is a Pb - Free Device
