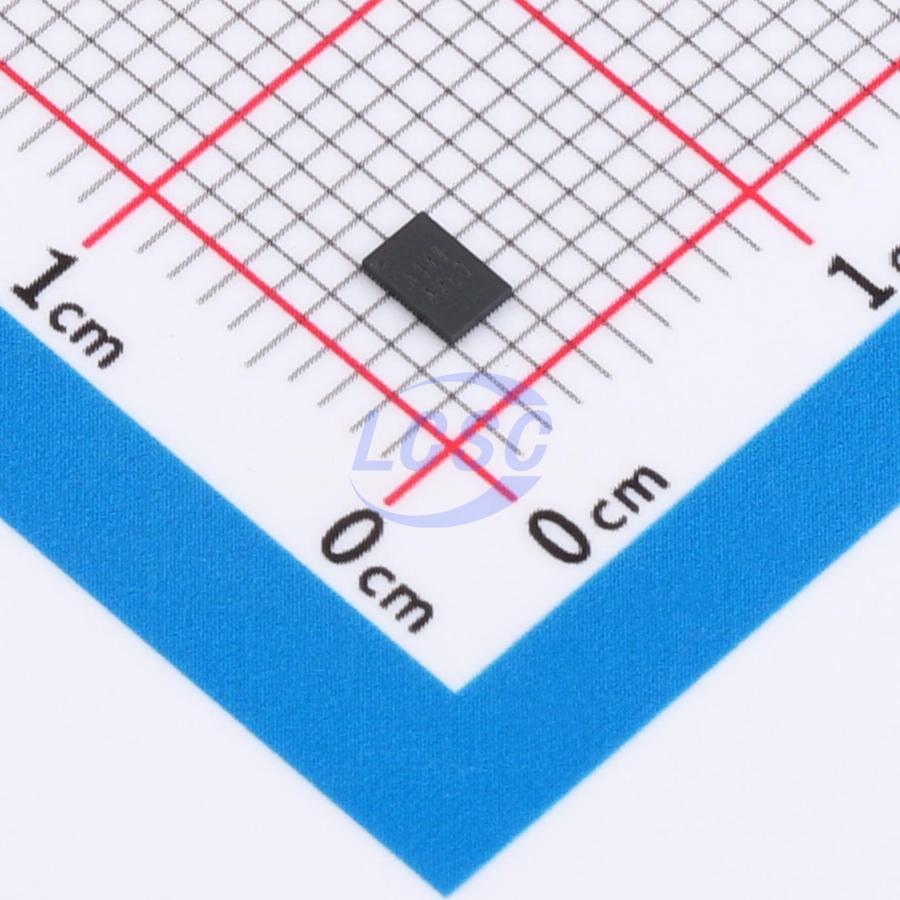

FUSB340TMX-TP

This device is a high-speed bidirectional passive switch supporting multiplexer or demultiplexer configurations, designed for USB Type-C applications with USB 3.1 Gen 1 and Gen 2 data rates. Depending on the state of the control pin SEL, the device provides switching on differential channels between port L0 or port L1 and port Co. It is a general-purpose analog differential passive switch suitable for any high-speed interface application requiring a common-mode voltage range of 0 to 2V and differential signal amplitudes up to 1.8Vpp. It employs adaptive tracking technology to ensure consistent channel characteristics across the entire common-mode voltage range. The device's excellent dynamic performance supports high-speed switching with minimal signal eye diagram degradation and very low added jitter. Operating power consumption is below 2mW, with a shutdown mode enabled via the _EN pin that reduces power consumption to below 20uW.

Applications

• USB Type-C ecosystem
• Desktop and laptop computers
• Server/storage area network
• Shared I/O ports
• PCI Express backplane
• FPD Link II and FPD Link III switching

Key features

• Wide supply voltage range: 1.5 V to 5.5 V
• Differential 2:1 or 1:2 switch/multiplexer
• USB 3.1 SuperSpeed 10Gbps switch
• High bandwidth: 5.1GHz @ -3dB bandwidth
• Isolation: -24dB @ 1.25 GHz
• Crosstalk: -34dB @ 1.25 GHz
• Low bit-to-bit skew, bidirectional
• ESD protection: 2kV HBM
• Power-off protection when VDD = 0 V
• Compatible with 1.8-V logic inputs
• Pin-compatible with ASW3410, DIO3340, FUSB340
