onsemiDatasheet (PDF)

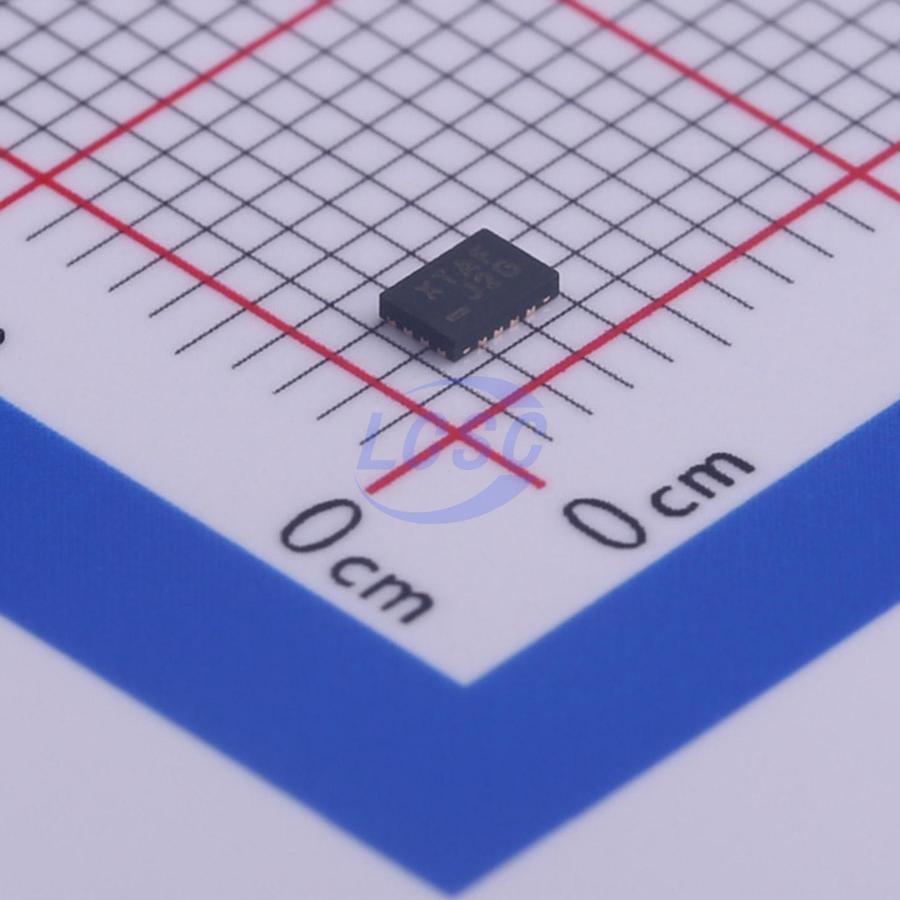

FXL6408UMX
8 I2C UQFN-16(1.8x2.6) I/O Expanders RoHS
UQFN-16(1.8x2.6)ROHS3 CompliantActive
Fully Configurable 8-Bit I²C-Controlled GPIO Expander
- Manufacturer
- onsemi
- Manufacturer part #
- FXL6408UMX
- Store part #
- C457770
- Package / case
- UQFN-16(1.8x2.6)
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,628 in stock
#C457770
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.55 | ₹81.55 |
| 10+ | ₹65.03 | ₹650.30 |
| 30+ | ₹56.55 | ₹1,696.50 |
| 100+ | ₹48.28 | ₹4,828.00 |
| 500+ | ₹43.50 | ₹21,750.00 |
| 1,000+ | ₹40.88 | ₹40,880.00 |
1 × ₹81.55
₹81.55
excl. GST
₹96.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FXL6408UMX
₹81.55 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 8
- Features
- Reset function;IO level configurable;Cascade and address expansion
- Voltage - Supply
- 1.65V~3.6V
- Quiescent Supply Current
- 1.5uA
- Current - Output High(IOH)
- 6mA
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
The FXL6408 is an 8-bit I²C - controlled GPIO expander. When configured in Input Mode, the FXL6408 monitors the input ports for data transitions and signals the baseband by asserting the /INT pin. The input default values can be programmed independently, allowing customized input detection. All inputs can be configured with pull - up or pull - down resistors to pre - bias the inputs in open - drain or non - driven applications. When configured in Output Mode, the GPIO pins are capable of delivering 6mA output drive according to the I²C register set. The FXL6408 is designed to allow voltage translation from levels as low as 1.65V and up to 4.0V. The FXL6408 features an active LOW RESET input as well as Power - On Reset (POR) circuit and I²C software reset options.
Key features
- 4X Expansion of Connected Processor I/O Ports
- Fully Integrated I²C Slave
- 8 Independently Configurable I/O Ports
- Low - Power Quiescent Current: 1.5μA
- Voltage Translation Capable from 1.65V I²C Port Up to 4.0V GPIO Pins
- Selectable Device Address
- 6mA Output Drive
- Interrupt Pin to Alert Processor of Status Changes
