GOSEMICONDatasheet (PDF)

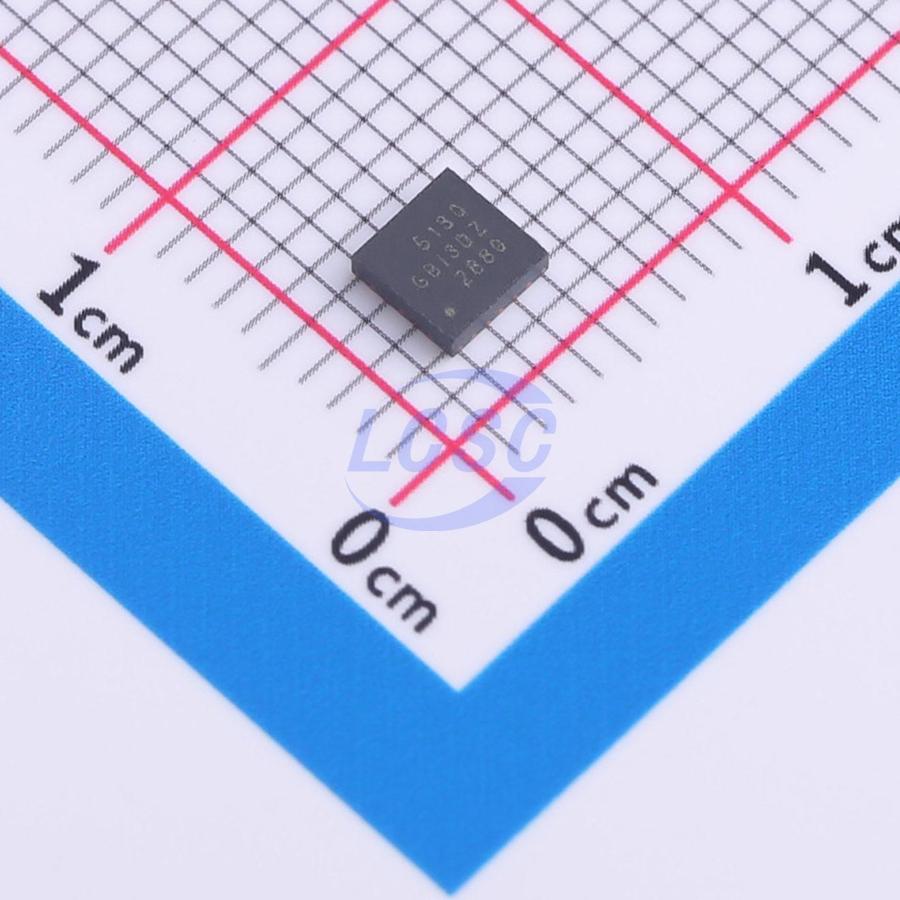

GBI5130QYAR
Linear Voltage Regulator IC Positive 1 Output 4A QFN-20(3.5x3.5)
QFN-20(3.5x3.5)RoHSActive
High Accuracy Low Noise LDO Regulator
- Manufacturer
- GOSEMICON
- Manufacturer part #
- GBI5130QYAR
- Store part #
- C28324640
- Package / case
- QFN-20(3.5x3.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,844 in stock
#C28324640
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹169.94 | ₹169.94 |
| 10+ | ₹139.77 | ₹1,397.70 |
| 30+ | ₹123.28 | ₹3,698.40 |
| 100+ | ₹104.40 | ₹10,440.00 |
| 500+ | ₹96.14 | ₹48,070.00 |
| 1,000+ | ₹92.46 | ₹92,460.00 |
1 × ₹169.94
₹169.94
excl. GST
₹200.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GBI5130QYAR
₹169.94 for 1 + GST
Specifications
- Output Voltage
- 500mV~2.075V;500mV~5.15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 4A
- Operating Voltage
- 6.5V
- Output Type
- Fixed;Adjustable
- Features
- Enable control;Adjustable soft-start;Operating status indication;Input under-voltage protection;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.249 g
Overview
GBI5130 is a low-noise, low-dropout linear regulator capable of delivering 4A output current at a maximum dropout voltage of only 160mV. The device offers two output voltage ranges: one pin-programmable from 0.5V to 2.075V in 25mV steps, and one adjustable from 0.5V to 5.15V via an external resistor divider. Its combination of low noise, high PSRR, and high output current capability makes it ideal for powering noise-sensitive components in high-speed communications, video, medical, or test and measurement applications — such as serializers/deserializers, ADCs, DACs, and RF components. For digital loads requiring low input and output voltage operation, the GBI5130's excellent accuracy, remote sensing, superior transient performance, and soft-start capability ensure optimal system performance.
Applications
- Macro base station remote radio units
- Outdoor backhaul units
- Active antenna system massive MIMO
- Ultrasound scanners
- Laboratory and field instrumentation
- Sensors and imaging
Key features
- Low dropout: 160mV maximum at 4A
- Up to 1% accuracy over line and load variations
- Output voltage noise: -7μV_RMS at 0.5V output, -11.9μV_RMS at 5.15V output
- Input voltage range: 1.4V to 6.5V without bias voltage; 1.1V to 6.5V with bias voltage
- GBI5130 output voltage range: 0.5V to 5.15V in adjustable mode; 0.5V to 2.075V in fixed mode
- Power supply ripple rejection: -40dB at 500kHz
- Excellent load transient response
- Adjustable soft-start inrush current control
- Open-drain power-good indicator output
- Thermal shutdown and overcurrent protection
- 3.5mm × 3.5mm QFN-20 package
